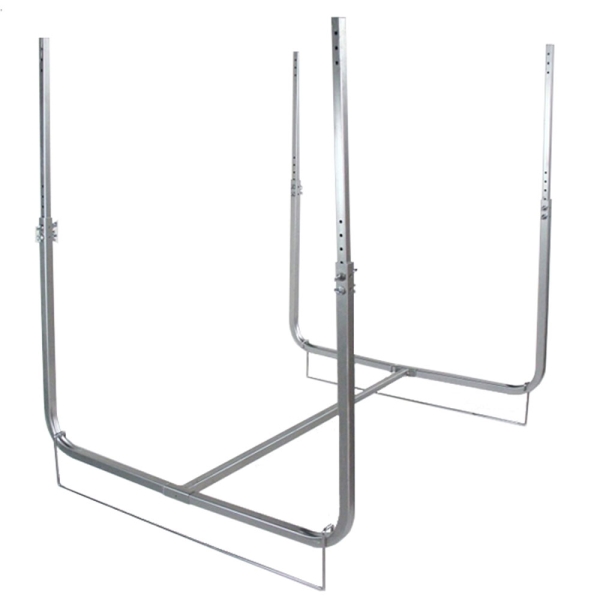

Quick Sling Hanging Mount System for Air Handler/Furnace

The Quick-Sling Hanging Mount System for Air Handlers and Furnaces is made of 14-gauge square steel tubing which not only cuts
down on vibration but is also able to hold up to 400 lbs. Extension arms individually adjust in one inch increments using thumb screws & wing nuts for speed & versatility. The Quick-Sling Hanging Mount System installs as high as 36” or as low as 48” on flat or pitched roofs.

Each arm attaches to wood using 2 zip screws for stability & a 4-inch through bolt & wing nut for security. The Quick-Sling Hanging Mount System installs to steel using steel beam adapters. 32-inch secondary drain pan hangers are provided & install in seconds. 28 points of anti-vibration isolation are provided using four 50-derometer self-adhesive rubber pads & 24 rubber washers.

3 Dimensionally Adjustable:

• Height: 24-inches to 48-inches
• Width: 38-inches to 48-inches
• Length: 32-inches to 48-inches
