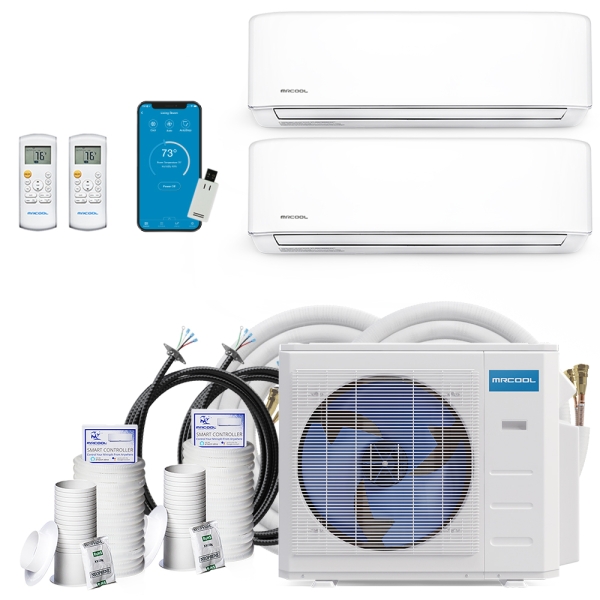

33k BTU 21.5 SEER Multi-Zone MrCool DIY 2 Zone Ductless Heat Pump Split System 3rd & 4th Gen Mixed Bundle - 9k+24k
Shop All MRCOOL
Item:
HAZ10503
Model:
DIYM236HPW01B07
Condition:
New
Out of stock
Loading...
Accessories
Description / Documents
Surplus equipment is like new overstock equipment that we sell ridiculously cheap to make room for new and exciting products. Most items are covered under the manufacturer's warranty, and all items are backed by our return policy, so you can buy with peace of mind.
Helpful Buying Guides
Customer Reviews / Q&A
Specifications
System Overview
| Model | DIYM236HPW01B07 |
|---|---|
| UPC | 840255547673 |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 2.5 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 10.5 |
| Heat Pump Efficiency (HSPF) | 11 |
| Series | DIY |
| Zones | 2 |
| Region Compatibility | Nationwide |
DIY-09-HP-WMAH-230C25 Specifications:
| Model | DIY-09-HP-WMAH-230C25 |
|---|---|
| UPC | 810063869533 |
| Product Height (in) | 11.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.44 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 23.810000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
DIY-24-HP-WMAH-230C25 Specifications:
| Model | DIY-24-HP-WMAH-230C25 |
|---|---|
| UPC | 810063868536 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 35.270000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
DIY25-3858 Specifications:
| Model | DIY25-3858 |
|---|---|
| UPC | 810035931053 |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 15.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
