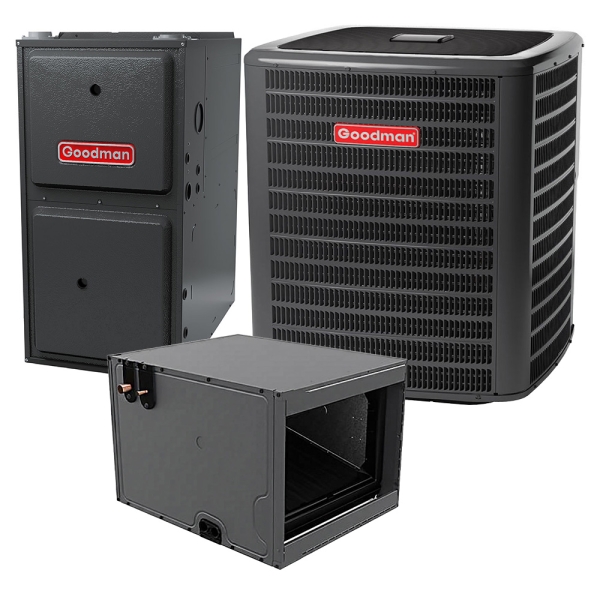

1.5 Ton 15.2 SEER2 80k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32
GOODMAN
Item:
HA27751
Model:
GLXS5BA1810,CHPTA1822B3,GR9T960803BN
Condition:
New
1.5 Ton Goodman Evaporator Coil - Horizontal - TXV - 17.5" Cabinet - R-32
Item: HA25202Model: CHPTA1822B3
Qty: 1
80k BTU 96% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet
Item: HA25343Model: GR9T960803BN
Qty: 1
Accessories
Description / Documents
Additional Documents
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | GLXS5BA1810,CHPTA1822B3,GR9T960803BN |
|---|---|
| AHRI Number | 215380120 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 750 - 900 Sq Ft |
| Bundle Cooling Capacity | 1.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 15.2 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| Region Compatibility | Nationwide |
GLXS5BA1810 Specifications:
| Model | GLXS5BA1810 |
|---|---|
| UPC | 663051735460 |
| AHRI Number | 215379950 |
| Product Height (in) | 27 |
| Avg Coverage Area | 750 - 900 Sq Ft |
| Product Length (in) | 26 |
| Compressor | Single Stage |
| Product Width (in) | 26 |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 116.000000 |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 15.2 |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
CHPTA1822B3 Specifications:
| Model | CHPTA1822B3 |
|---|---|
| UPC | 663051688476 |
| Product Height (in) | 17.5 |
| Air Flow Direction | Horizontal |
| Product Length (in) | 21 |
| Cooling Capacity | 1.5 Ton |
| Product Width (in) | 22 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 50.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 3/4 inch |
| Warranty | 10 Year Parts |
GR9T960803BN Specifications:
| Model | GR9T960803BN |
|---|---|
| AHRI Number | 215225027 |
| Product Height (in) | 34.5 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 28.75 |
| Product Width (in) | 17.5 |
| Air Flow Direction | Horizontal, Upflow |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 118.000000 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
