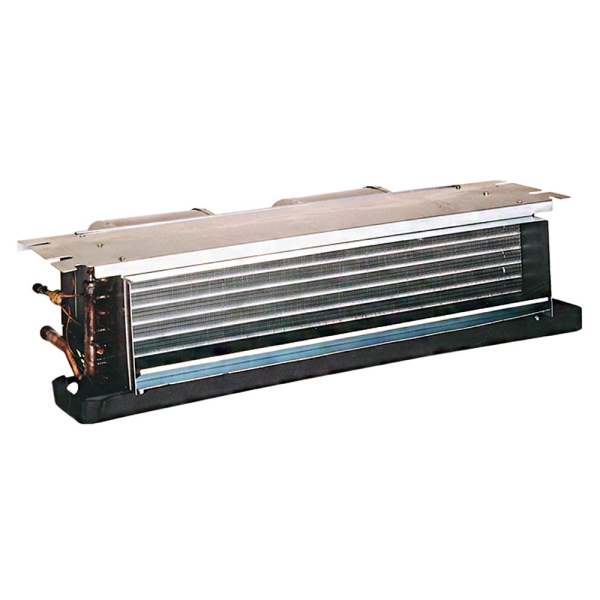

1.5 Ton Multi Speed Goodman Ceiling Mounted Air Handler - 6kW Heat Kit

Item: HA10004
Model: ACNF180616
Condition: New

1.5 Ton Multi Speed Goodman Ceiling Mounted Air Handler - 6kW Heat Kit Zoom

Photo Gallery

The Goodman ACNF18 Ceiling-Mount Air Handler is the ideal choice to deliver effective air flow in minimum space HVAC applications. Compatible with select Goodman brand heat pumps and air conditioners, the ACNF18 is packed with the quality components you would expect from an industry leader. It features a high efficiency and all-aluminum evaporator coil, direct-drive motor, galvanized-steel construction, and a sequence-controlled, rust-resistant nickel chromium heating element in 5, 6, 8 and 10 kW.

Availability: Out of stock

$537.02

Call for availability

Up To $500 Cash Back

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

The Goodman ACNF18 Ceiling-Mount Air Handler is the ideal choice to deliver effective air flow in minimum space HVAC applications. Compatible with select Goodman brand heat pumps and air conditioners, the ACNF18 is packed with the quality components you would expect from an industry leader. It features a high efficiency and all-aluminum evaporator coil, direct-drive motor, galvanized-steel construction, and a sequence-controlled, rust-resistant nickel chromium heating element in 5, 6, 8 and 10 kW.
Goodman HA10004

Manufacturer Highlights

The Goodman® brand ACNF Series Ceiling Mounted Air Handlers offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Suitable for use with refrigerants R-410A and R-22
  • Check flowrater for heat pump and cooling-only applications
  • All-Aluminum tube/aluminum fin coil
  • Direct-drive, resilient-mount, multi-speed motor
  • Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
  • High-efficiency evaporator coil
  • Quiet operation
  • Available with and without heat
  • AHRI Certified
  • ETL Listed
  • Primary/secondary drain connection in a high-temperature plastic drain pan
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model ACNF180616
UPC 663051523227
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Multi Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 6 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 35 amps
Product Height (in) 10
Product Length (in) 21
Product Width (in) 37.25
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 59.0000
