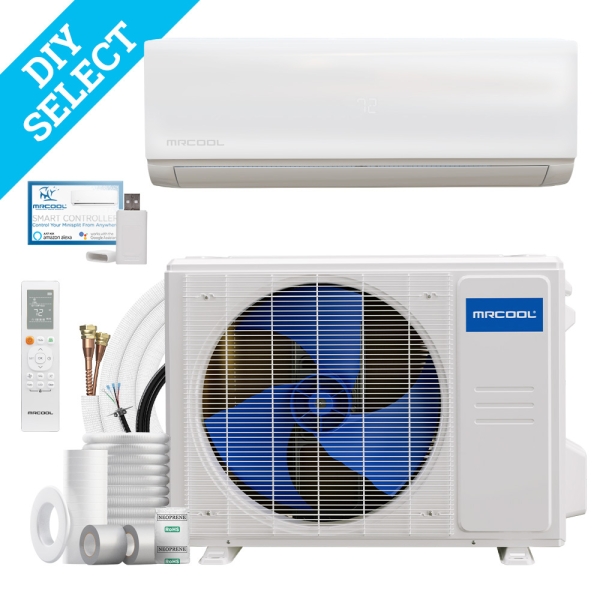

12k BTU 17.5 SEER2 MrCool DIY Select Ductless Heat Pump Split System - with 11.5ft Line Set & 1 Year Labor Warranty
MRCOOL

Accessories
Description / Documents
From your den, bedroom, home office, and basement to a detached garage, shed, or workshop, keeping indoor temperatures comfortable is crucial. When you want to use your space in any season without sweating or shivering, integrating a 12k BTU 17.5 SEER2 MrCool DIY Select Ductless Heat Pump Split System - with 11.5ft Line Set & 1 Year Labor Warranty is a solution that’ll make a positive impact. Backed by ETL listing, along with Energy Star and AHRI certifications, the MrCool DIY Select Heat Pump highlights that every safety, operational, and efficiency claim is legitimate by passing testing from third-party agencies. Make the most of your living space in any season with the addition of a 12k BTU MrCool Ductless Split System.

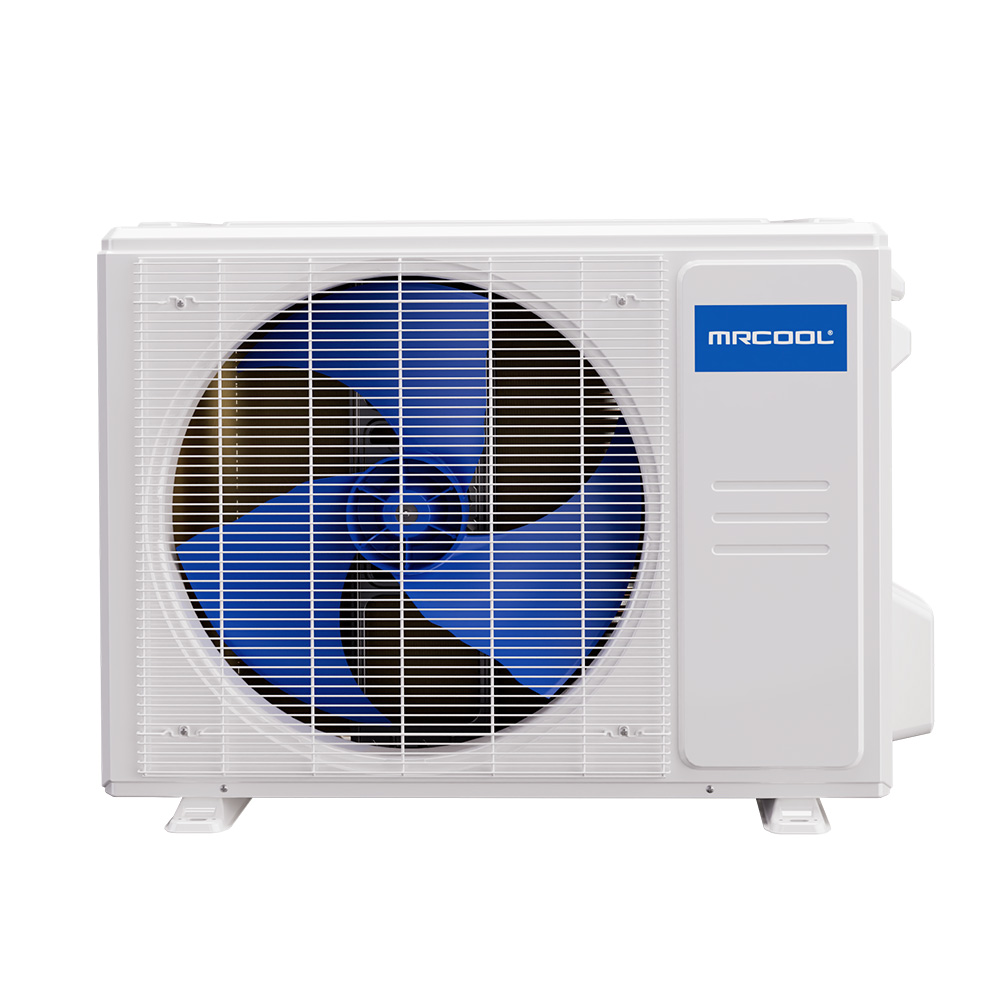

Boasting a purposeful construction, the condenser in the 12k BTU 17.5 SEER2 MrCool DIY Select Ductless Heat Pump Split System - with 11.5ft Line Set & 1 Year Labor Warranty won’t fall shy of crafting your ideal indoor ambiance. Thanks to inverter technology, the temperature is held closer to your set-point at all times to optimize both efficiency and comfort. The pre-charged 11.5-foot line set streamlines the setup process, removing the time-consuming task of vacuuming the refrigerant. With easy-to-follow setup instructions that allow for do-it-yourself setup, the MrCool DIY Select Heat Pump makes it easy to enjoy temperature regulation without the hassle of coordinating schedules with a professional installer.
Giving you access to all the settings you could need, the air handler in the 12k BTU 17.5 SEER2 MrCool DIY Select Ductless Heat Pump Split System - with 11.5ft Line Set & 1 Year Labor Warranty goes above and beyond to optimize your comfort. Options like the smartphone app and included remote control allow you access to your system anywhere, making it easy to change and monitor conditions while out of the house. Whether you’re wanting to switch operational modes, set a schedule around your work, or conserve energy at night, the MrCool Air Handler has the tools to handle the task. Keeping operational sounds at a minimum, you can breathe easy with the knowledge the MrCool DIY Select Split System optimizes your comfort beyond temperature regulation.
Between the climate control coverage you desire, 1 year of labor warranty, and the support of a limited warranty that provides 1 year of parts coverage and 2 years of compressor coverage by default, there’s no reason to hesitate. Choose a 12k BTU MrCool DIY Select Ductless Heat Pump Split System with 11.5ft Line Set utilizing R454B refrigerant today and provide your loved ones with year-round comfort that doesn’t quit.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | DIYS-12-HP-115A11-O |
|---|---|
| UPC | 840433619512 |
| AHRI Number | 218004485 |
| Configuration | Wall Mounted |
| Bundle Avg Coverage Area | 500 - 600 Sq Ft |
| Bundle Cooling Capacity | 1 Ton |
| Bundle Cooling Efficiency (SEER2) | 17.5 |
| Heat Pump Efficiency (HSPF2) | 9 |
| Series | DIY |
| Zones | 1 |
| Region Compatibility | Nationwide |
DIYS-12-HP-C-115A11-O Specifications:
| Model | DIYS-12-HP-C-115A11-O |
|---|---|
| UPC | 840255595674 |
| AHRI Number | 218004485 |
| Product Height (in) | 19.49 |
| Avg Coverage Area | 500 - 600 Sq Ft |
| Product Length (in) | 10.63 |
| Compressor | Inverter |
| Product Width (in) | 28.35 |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 54.890000 |
| Primary Heating Capacity | 10,001 - 15,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 17.5 |
| Series | DIY |
| System Application Type | Ductless Split Systems |
| Voltage | 120 |
| Warranty | 1 Year Parts, 2 Year Compressor |
| Region Compatibility | Nationwide |
DIYS-12-HP-WMAH-115A13-O Specifications:
| Model | DIYS-12-HP-WMAH-115A13-O |
|---|---|
| UPC | 840255595599 |
| Product Height (in) | 11.61 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.87 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.57 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 24.910000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 120 |
| Warranty | 1 Year Parts, 2 Year Compressor |
DMS1Y4+000125 Specifications:
| Weight (lbs) | 0.000000 |
|---|---|
| Model | DMS1Y4+000125 |
