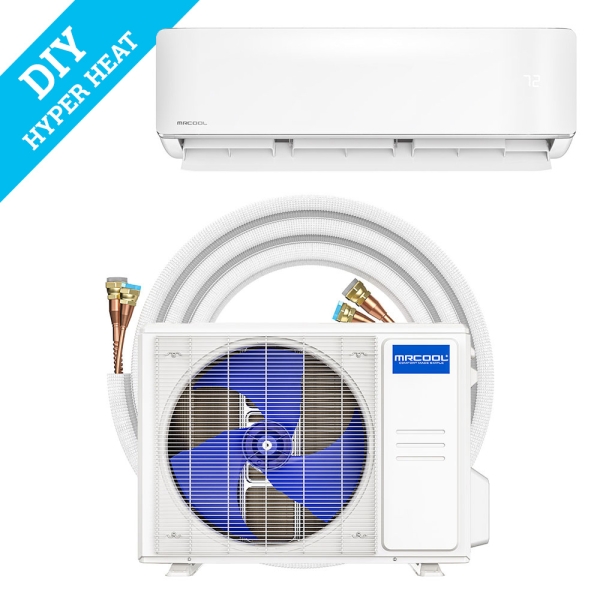

12k BTU 23.5 SEER2 MrCool DIY Hyper Heat Ductless Heat Pump Split System - 5th Generation - R454B
MRCOOL

Accessories
Description / Documents
Staying comfortable in a region with an ever-shifting climate can make it hard to find an HVAC system that works as well in hot temperatures as it does when those conditions drop off. With modern technology and the latest refrigerant standards, staying comfortable shouldn’t be a difficult task. With the 12k BTU 23.5 SEER2 MrCool DIY Hyper Heat Ductless Heat Pump Split System - 5th Generation - R454B, you’ll have the powerful performance required to optimize your indoor living space all year-round. Earning both AHRI certification and ETL listing, this MrCool DIY Heat Pump passes intensive testing to showcase the integrity of every safety and operational claim. When you’re ready to have reliable heating and cooling results in any room or zone up to 550 square feet in size, this 12k BTU MrCool Split System is exactly what you need.
Designed to streamline the setup process, the 12k BTU 23.5 SEER2 MrCool DIY Hyper Heat Ductless Heat Pump Split System - 5th Generation - R454B can be handled by you and you alone. The quick connect line sets remove the need for costly and time-consuming vacuuming during installation, a process only the licensed professional should handle. The DIYPro Armored cable simplifies the electrical hookups and eliminates the need for an electrical conduit, granting a degree of future-proofing to your system. With an auto restart function that restores all your previously chosen settings after a power outage or other unexpected downtime, this MrCool Heat Pump System makes it easy to set up and use your DIY system.
Equipped with impressive protective and quality of life measures, the 12k BTU 23.5 SEER2 MrCool DIY Hyper Heat Ductless Heat Pump Split System - 5th Generation - R454B goes above and beyond to ensure you enjoy the results you need for years to come. Corrosion resistance from the Gold Fin condensers ensures that those living along the coast or in industrial areas won’t have to worry about their system rusting and wearing down more quickly. Thanks to the Follow Me function, smartphone app, and integration with digital helpers like Google Assistant and Amazon Alexa, this MrCool Split System offers everything you need and more to ensure you make the most of your living space in every season.
When you get all these benefits and the backing of a standard warranty that covers 5 years on the parts and 7 years on the compressor alongside the ability to enroll in the MrCool Care Program for additional peace of mind, there’s no reason to drag your feet on an upgrade any longer. Bring home this 12k BTU 5th Generation MrCool DIY Hyper Heat Ductless Heat Pump Split System running on R454B refrigerant today and ensure your home can combat winter’s chill and summer’s heat with ease.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | DIYHH-12-HP-WM-230D25-O |
|---|---|
| UPC | 840433615163 |
| AHRI Number | 216032549 |
| Bundle Avg Coverage Area | 500 - 600 Sq Ft |
| Bundle Cooling Capacity | 1 Ton |
| Bundle Cooling Efficiency (SEER2) | 23.5 |
| Heat Pump Efficiency (HSPF2) | 10 |
| Series | DIY |
| Zones | 1 |
| Region Compatibility | Nationwide |
DIYHH-12-HP-C-230D25-O Specifications:
| Model | DIYHH-12-HP-C-230D25-O |
|---|---|
| UPC | 840255588102 |
| AHRI Number | 216032549 |
| Product Height (in) | 21.8 |
| Avg Coverage Area | 500 - 600 Sq Ft |
| Product Length (in) | 13 |
| Compressor | Inverter |
| Product Width (in) | 31.7 |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 72.300000 |
| Primary Heating Capacity | 10,001 - 15,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 23.5 |
| Series | DIY |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DIY-12-HP-WMAH-230D25-O Specifications:
| Model | DIY-12-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587037 |
| Product Height (in) | 11.7 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.4 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.500000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIYCASSETTE12HP-230D25-O Specifications:
| Model | DIYCASSETTE12HP-230D25-O |
|---|---|
| UPC | 840255587518 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
