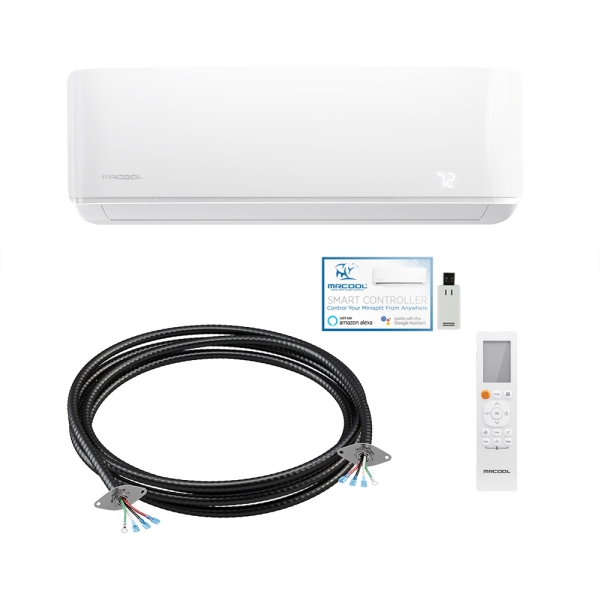

12k BTU MrCool DIY Ductless Wall Mounted Air Handler - 4th Generation 120v

Item
HA22142
Model
DIY-12-HP-WMAH-115C25
Condition
New

In stock
Ships Within 1-2 Business Days
Only 315 remaining

Get $100 Cash Back on Your Qualifying Purchase

  1. Spend over $1000 on heating and air equipment.
  2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
  3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
  4. Get a check mailed to you for $100.

Limited Time Offer. Act Now!

Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


Get everything right and save time

Contact an expert now.

Sitewide Savings: 15% Off Use Code: SAVE15


What's included

When you’re ready to feel comfortable in your house with customizable climate control per zone, you don’t have to struggle with rooms that need a little extra oomph. With the 12k BTU MrCool DIY Ductless Wall Mounted Air Handler - 4th Generation 120v, you can ensure the top-tier temperature regulation you and your loved ones need to fend off winter’s chill and summer’s heat. Earning support from UL listing on top of AHRI and Energy Star certifications, this MrCool 4th Generation Air Handler has passed a range of rigorous inspections from independent third-party agencies to verify the legitimacy of every functional and safety claim. For any up to 500 square foot room, the 12k BTU MrCool DIY Air Handler is exactly what you’ve been looking for to maintain your preferred settings all year long.

Designed to make setup and servicing both effortless tasks, the 12k BTU MrCool DIY Ductless Wall Mounted Air Handler - 4th Generation 120v puts all the power in the palm of your hand. The DIY series is as do-it-yourself as it gets, allowing anyone to handle the installation process regardless of their starting HVAC knowledge level. Every unit comes with straightforward steps in the installation guide, taking the guesswork out of the process. Designed to work with no-vac quick connect pre-charged line sets and the DIY Pro cable, the setup process is simplified to eliminate any steps that would cause trouble for those without certification.

Packed with intelligent features that protect your indoor environment, the 12k BTU MrCool DIY Ductless Wall Mounted Air Handler - 4th Generation 120v goes above and beyond to secure your ideal temperatures. Gold Fin protections on the condenser fight off corrosion to ensure longevity in any environment. The Follow Me function removes the need for constant manual adjustment by adding sensors into the remote, allowing the unit to automatically adjust as needed to optimize comfort wherever you are in the room. Even working with the smartphone app to give you control over your preferences from anywhere with internet access, this MrCool DIY Air Handler is everything you need and more to enjoy your space to the fullest.

Giving you all of these game changing benefits on top of a warranty that by default includes 5 years on parts and 7 years on the compressor, with the option to extend that compressor coverage to a limited lifetime with enrollment in the MrCool Care Program, you have nothing left to lose. Acquire this 12k BTU MrCool 4th Generation DIY Ductless Wall Mounted Air Handler for your home today and ensure the exact conditions you and your family crave in every season.

More Information
Model DIY-12-HP-WMAH-115C25
UPC 810063868499
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 34.170000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 120
Warranty 5 Year Parts
