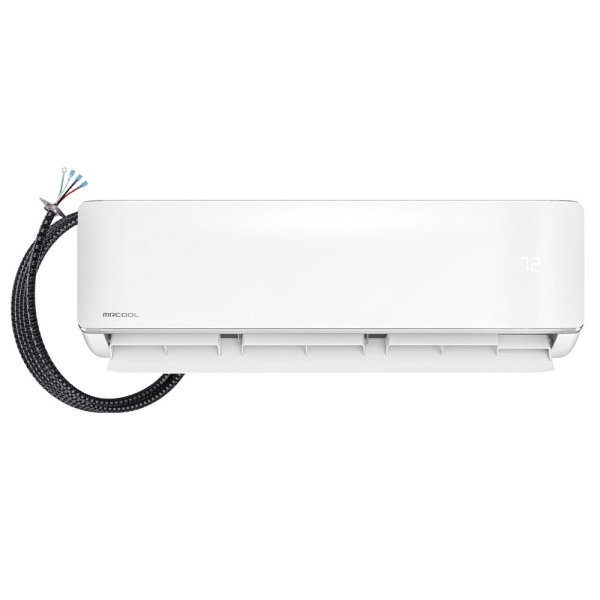

Give you and your family the uncompromising comfort you deserve by opting for an HVAC system that can maintain your perfect temperatures all year-round. You can find a way to stop enduring the scorching heat of summer or the biting chill of winter while indoors without the hassle of waiting all day for an installer to come around. Don't be overwhelmed by the multitude of choices available on the market when the 12k BTU MrCool DIY Ductless Wall Mounted Air Handler - 5th Generation 120v offers a solution to fulfill your every need. Covered by both UL listing and AHRI certification, this MrCool DIY Air Handler undergoes thorough third-party testing to verify the validity of each operational claim to guarantee your home will experience the next level climate control you've been longing for.
When it comes to the installation process, the 12k BTU MrCool DIY Ductless Wall Mounted Air Handler - 5th Generation 120v presents the perfect do-it-yourself solution for anyone who likes to take on their home improvement projects themselves. The MrCool DIY series provides the versatility you need to get your system up and running without help, eliminating the need for professional expertise and training to help you save both time and money. Thanks to its ability to work with the patented MrCool DIY pre-charged line set, running refrigerant between this MrCool Air Handler and your corresponding outdoor unit is quick and simple. Coming with a set of easy-to-follow setup instructions, you'll get your new MrCool Wall Mounted Air Handler up and running in no time, without the need to wait on someone else's schedule.
Built with a selection of thoughtfully chosen components, the 12k BTU MrCool DIY Ductless Wall Mounted Air Handler - 5th Generation 120v offers outstanding performance and remarkable energy efficiency. Producing your perfect indoor climate is easy with this MrCool Handler, giving you the tools you need to effortlessly control your environment from the comfort of your couch with the smartphone app or using the sensors in the remote to detect and adjust the temperature at its location automatically via the Follow Me feature. The auto-restart feature guarantees the system returns to its normal operation after any power interruptions, while the louver position memory resets the louvers to their previous position from the last cycle, ensuring this MrCool Air Handler will provide years of reliable performance.
With all these exceptional features at your fingertips, along with a warranty covering 5 years on parts and 7 years on the compressor by default, why would you want to delay any longer? Purchase this 12k BTU MrCool 5th Generation DIY Ductless Wall Mounted Air Handler today and transform your home into the tranquil retreat you've always dreamed of.
| Model | DIY-12-HP-WMAH-115D25-O |
|---|---|
| UPC | 840255587006 |
| Product Height (in) | 11.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.44 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 37.700000 |
| Refrigerant | R-454b |
| Series | DIY |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 120 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| California Residents | see Prop 65 WARNING |
- 4
Cross Flow Fan for MrCool Ductless Wall Mounted Air Handler DIY/ADVANTAGE 9K & 12KSKU: HAP10274
MODEL: 12100102000044
Price:
- 12

Price:
- 13

Price:
- 1

Price:
Out of stock - 7
Room Temperature Sensor for MrCool Ductless Wall Mounted Air HandlerSKU: HAP11053
MODEL: 11201007003424
Price:
- 8
Pipe Temperature Sensor for MrCool Ductless Wall Mounted Air HandlerSKU: HAP11455
MODEL: 11201007003447
Price:
- 11
Quick Connect Fitting 06 for MrCool Ductless Heat Pump Condenser DIY SeriesSKU: HAP11520
MODEL: 15500305000015
Price:
- 10
Quick Connecter for MrCool Ductless Heat Pump Condenser DIY SeriesSKU: HAP11864
MODEL: 15500305000007
Price:
- 14

Price:
- 3
Blower Motor for MrCool Ductless Wall Mounted Air Handler 9k & 12kSKU: HAP12236
MODEL: 11002015006201
Price:
Out of stock - 5
Price:
- 9
Remote Control for MrCool DIY Ductless Wall Mounted Air Handler - 5th GenerationSKU: HAP13785
MODEL: 17317000A70439
Price:
- 6
Control Board for MrCool DIY Ductless Wall Mounted Air Handler 5th GenerationSKU: HAP13801
MODEL: 17222000045471
Price:
- 2
Display Box Subassembly for MrCool Wall Mounted Air Handler 12k 5th GenSKU: HAP13977
MODEL: 17222000A71533
Price:
