This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

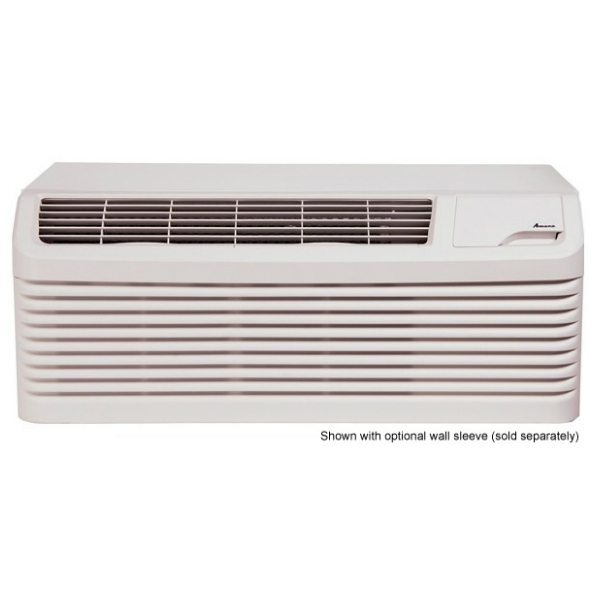

15k BTU 10 EER Amana Electric Heat & Air PTAC Unit - 3.5kW Heat Kit

Item: HA10972
Model: PTC153G35AXXX
Condition: New

15k BTU 10 EER Amana Electric Heat & Air PTAC Unit - 3.5kW Heat Kit Zoom

Photo Gallery

When you invest in an Amana Packaged Terminal Air Conditioner (PTAC), you get real value for your dollar. First, you get 11.7 EER performance to ensure long term efficiency. Second, every Amana PTAC sports a user-friendly touchpad, so guests have complete control over their air comfort. Last, but not least, this is an easy unit to install, cleaning is a breeze, and a 5-year warranty protects your purchase for years to come.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Amana

What's Included

What customers are saying...



Overview

When you invest in an Amana Packaged Terminal Air Conditioner (PTAC), you get real value for your dollar. First, you get 11.7 EER performance to ensure long term efficiency. Second, every Amana PTAC sports a user-friendly touchpad, so guests have complete control over their air comfort. Last, but not least, this is an easy unit to install, cleaning is a breeze, and a 5-year warranty protects your purchase for years to come.
Amana HA10972

Manufacturer Highlights

The Amana® brand PTAC Air Conditioner offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Quiet operation: STC of 28
  • Assembled in the USA for 30 years
  • Increased dehumidification capacity
  • 100% run-tested at our plant in Fayetteville, TN, for leaks
  • 7-5/8" unit front depth: one of the shallowest silhouettes in the industry today
  • Removable condenser shroud allows easy access to enable regular cleaning of coils
  • Easy pull-out filters that are washable and easy to maintain
  • Filter drier for sealed system refrigerant
  • 7-Button touch pad provides complete control to guests for in-room comfort while maintaining energy efficiency
  • Condensate dispersion system removes condensate from indoor cooling operation and evaporates it into the atmosphere through the condenser
  • Digismart™ front desk control & energy management software
  • Room freeze protection is activated when the unit senses temperatures of 40°F or below
  • Versatile style that blends into any room's color scheme and decor
  • Easy to service with on-board led diagnostics
  • Digismart™ wireless remote thermostat is available
  • Remote temperature sensing for guest climate control
  • Extended heat pump heating down to as low as 24°F outdoor ambient temperature
  • Zero floor clearance allows unit to be installed flush to a finished floor
  • 30-second fan-off delay
  • Compressor lock-in prevents compressor short-cycling
  • Constant fan mode
  • Hidden ventilation control
  • High-pressure switch

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model PTC153G35AXXX
UPC 663051515543
AHRI Number 7117216
Avg Coverage Area 500 - 600 Sq Ft
Cooling Capacity 1 Ton
EER 10
Electrical Phase 1-Phase
Max Overcurrent Protection 20 amps
Primary Heating Capacity 10,001 - 15,000 BTU
Product Height (in) 16.0625
Product Length (in) 14.125
Product Width (in) 42
Voltage 240
Warranty 5 Year Parts, 1 Year Unit Replacement
Weight (lbs) 130.0000
Region Compatibility Nationwide
Popular Applications Apartment, Bedroom, Duplex, Garage, Guest Room, Hotel Room
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Can you send me the exact dimensions of this unit so that I can make sure it fits the sleeve that I already have through my wall?
I have a Amana Model PTH153B50AJ. Will this unit fit the sleeve for that model.
How do you clean the condensate line?
How is it hooked up?
Does installation sleeve come with purchase?
I have 500 square feet basement apartment looking for hotel style heater air conditioner unit to plug into 120.
There is a wire hanging out of the bottom of the unit it looks like it clips in some where could this possibly be a temperature sensor
Does this unit work as a good heat source?
