This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

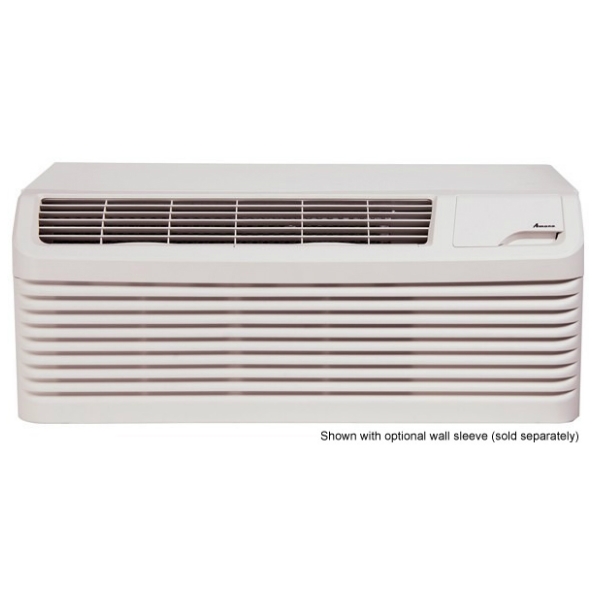

15k BTU 9.7 EER Amana Heat Pump PTAC Unit - 5kW Heat Kit

Item: HA10990
Model: PTH153G50AXXX
Condition: New

15k BTU 9.7 EER Amana Heat Pump PTAC Unit - 5kW Heat Kit Zoom

Photo Gallery

The Amana Packaged Terminal Heat Pump (PTHP) is as close to perfection as single-zone terminal HVAC units can get. This is an 11.7 EER/3.4 COP performer with R-410A refrigerant, automatic room freeze protection, and extended heating to as low as 24 degrees Fahrenheit. It comes standard with washable filters, remote temperature sensing, short-cycling prevention technology, and a condensate dispersion system.

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Amana

What's Included

What customers are saying...



Overview

The Amana Packaged Terminal Heat Pump (PTHP) is as close to perfection as single-zone terminal HVAC units can get. This is an 11.7 EER/3.4 COP performer with R-410A refrigerant, automatic room freeze protection, and extended heating to as low as 24 degrees Fahrenheit. It comes standard with washable filters, remote temperature sensing, short-cycling prevention technology, and a condensate dispersion system.
Amana HA10990

Manufacturer Highlights

The Amana® PTH Series Heat Pump offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing, easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Energy Efficiencies: With EERs up to 11.7 and COPs up to 3.4, the unit's high efficiencies may qualify you for many of the rebates offered by electrical power companies.
  • Quiet Operation: The PTAC has been redesigned to be the quietest PTAC ever built. The unit's state-of-the-art design and construction provide a quiet environment
  • Two fan motors (indoor/outdoor)
  • Indoor tangential fan for quiet operation
  • STC of 28
  • Assembled in the USA for 30 years
  • Increased Dehumidification Capacity: Maintain lower humidity levels in rooms while cooling them without the need for expensive add-ons
  • Seven-Button Touch Pad: Provides complete control to guests for in-room comfort while maintaining energy efficiency.
  • 7-5/8" Unit Front Depth: Enhance valuable room space with the slim unit front
  • Removable Condenser Shroud: Allows easy access to enable regular cleaning of coils, which is essential to maintain unit efficiency and protect the compressor for long unit life.
  • Easy Pull-Out Filters: Our filters are washable and easy to maintain.
  • Filter Dryer for Sealed System Refrigerant

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model PTH153G50AXXX
UPC 663051542396
AHRI Number 8028534
Auxiliary Heating Capacity 15,001 - 20,000 BTU
Avg Coverage Area 500 - 600 Sq Ft
Cooling Capacity 1 Ton
EER 9.7
Electrical Phase 1-Phase
Max Overcurrent Protection 20 amps
Primary Heating Capacity 10,001 - 15,000 BTU
Product Height (in) 16.0625
Product Length (in) 21.5
Product Width (in) 42
Voltage 240
Warranty 5 Year Parts, 1 Year Unit Replacement
Weight (lbs) 141.0000
Region Compatibility Nationwide
Popular Applications Apartment, Bedroom, Duplex, Garage, Guest Room, Hotel Room
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
How many square feet does this unit service?
What kind cost per KW hour does it cost to run this unit in a insulated garage setting? Annual cost to run this unit? Thank you
What is the difference between this model no. and the PTH153G35AXXX please?? Also, what (if any) accessories are needed for an install?? Lastly, is this a DIY potential project for a modestly good homeowner??

Thank you--
How is this rated by Consumer Reports. And rating of their compressors. What is fair price of replacement?
