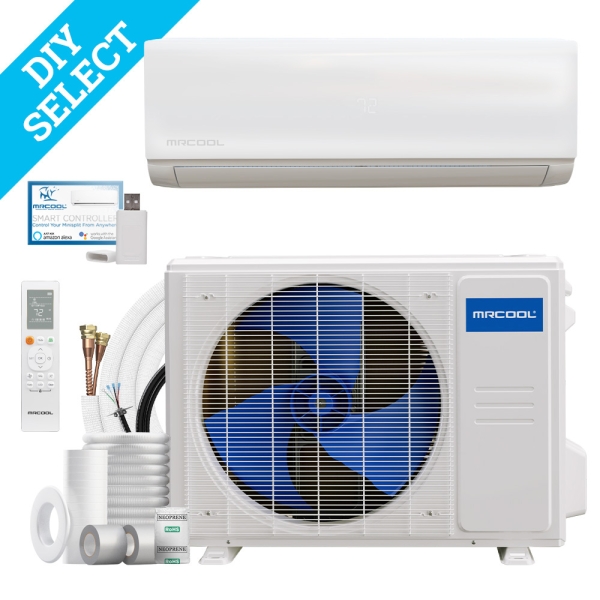

18k BTU 17.3 SEER2 MrCool DIY Select Ductless Heat Pump Split System - with 11.5ft Line Set & 1 Year Labor Warranty
MRCOOL

Accessories
Description / Documents
Whether you’re adding climate control to your workshop, garage, or shed, or bolstering the temperature regulation in a single room of your home, ductless split systems are a game changer. With the addition of an 18k BTU 17.3 SEER2 MrCool DIY Select Ductless Heat Pump Split System - with 11.5ft Line Set & 1 Year Labor Warranty, you’ll have every ability to cater your indoor ambiance to your preferences. Earning ETL listing, alongside both Energy Star and AHRI certifications, the MrCool DIY Select Heat Pump proves that every safety, performance, and efficiency claim is valid by passing examinations from third-party agencies. When you want to enjoy every square inch of space, the solution is an 18k BTU MrCool Ductless Split System.

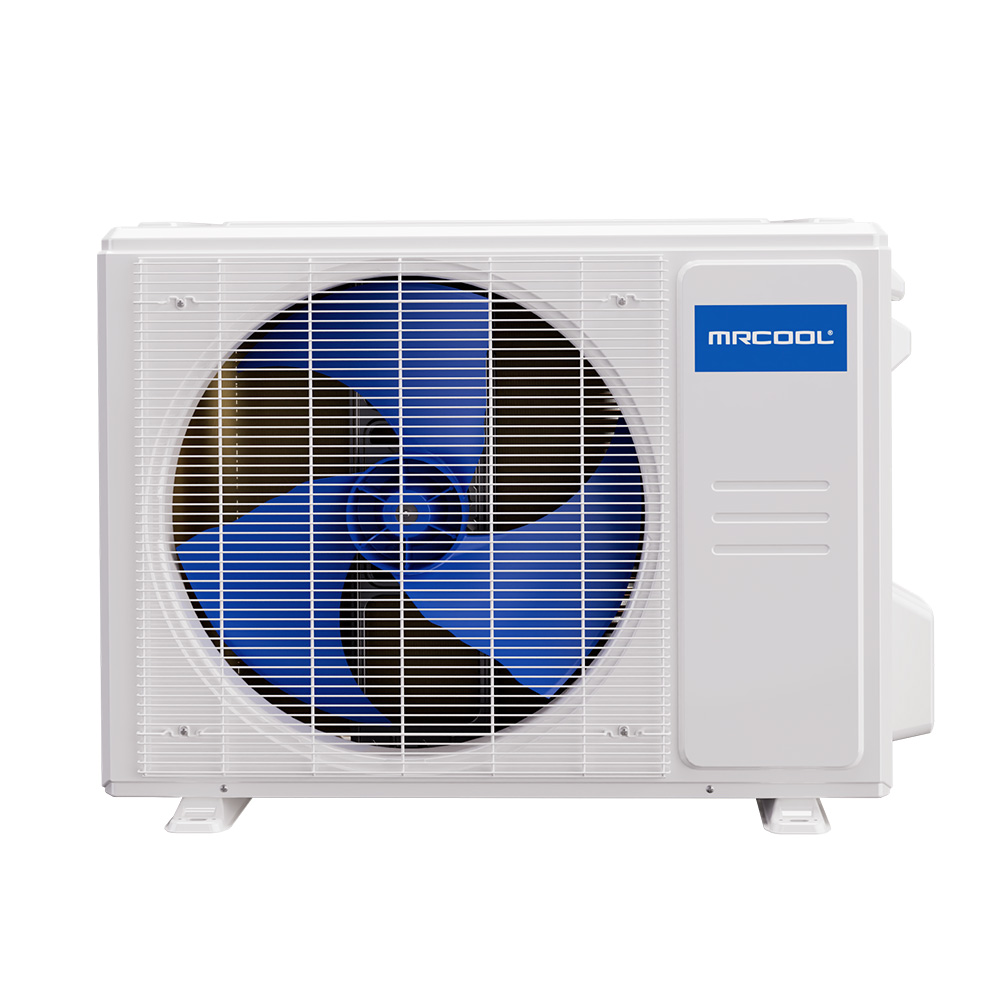

Thanks to its purposeful design, the condenser in the 18k BTU 17.3 SEER2 MrCool DIY Select Ductless Heat Pump Split System - with 11.5ft Line Set & 1 Year Labor Warranty makes it easy to stay comfortable all year long. Inverter technology helps optimize your comfort and efficiency in one fell swoop, keeping temperatures closer to your set-point while reducing energy use. Coming with a pre-charged 11.5-foot line set that eliminates the need to vacuum refrigerant through the system during installation, you’ll save time and money on the process. Outlining each step of the setup process in the included installation manual, you can relax knowing the MrCool DIY Select Heat Pump makes do-it-yourself setup as straightforward as possible.
Granting you unrestricted access to the tools you need, the air handler in the 18k BTU 17.3 SEER2 MrCool DIY Select Ductless Heat Pump Split System - with 11.5ft Line Set & 1 Year Labor Warranty makes a positive impact on your quality of life moments after installation. When you have access to the remote control, as well as the smartphone app, you can keep tabs on and make changes to your system from anywhere. These control options allow you to change the operational mode, set or adjust a schedule, and more from the couch, the neighbor’s house, the airport, and anywhere else you are with service. Giving you total temperature regulation, all the while minimizing any operational noises that could disrupt your relaxation, the MrCool DIY Select Split System has everything you need and more to stay comfortable.
When you can have the performance you’ve been looking for, plus the protection of a 1 year labor warranty and limited warranty coverage that handles 1 year on parts and 2 years on the compressor, what do you gain by hesitating? Decide on an 18k BTU MrCool DIY Select Ductless Heat Pump Split System with 11.5ft Line Set making use of R454B refrigerant today and give your family access to reliable climate control results that keep your home comfortable in any season.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | DIYS-18-HP-230A11-O |
|---|---|
| UPC | 840433619529 |
| AHRI Number | 218004486 |
| Configuration | Wall Mounted |
| Bundle Avg Coverage Area | 750 - 900 Sq Ft |
| Bundle Cooling Capacity | 1.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 17.3 |
| Heat Pump Efficiency (HSPF2) | 8.5 |
| Series | DIY |
| Zones | 1 |
| Region Compatibility | Nationwide |
DIYS-18-HP-C-230A11-O Specifications:
| Model | DIYS-18-HP-C-230A11-O |
|---|---|
| UPC | 840255595681 |
| AHRI Number | 218004486 |
| Product Height (in) | 21.85 |
| Avg Coverage Area | 750 - 900 Sq Ft |
| Product Length (in) | 11.93 |
| Compressor | Inverter |
| Product Width (in) | 30.12 |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 8.5 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 62.610000 |
| Primary Heating Capacity | 15,001 - 20,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 17.3 |
| Series | DIY |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 1 Year Parts, 2 Year Compressor |
| Region Compatibility | Nationwide |
DIYS-18-HP-WMAH-230A13-O Specifications:
| Model | DIYS-18-HP-WMAH-230A13-O |
|---|---|
| UPC | 840255595636 |
| Product Height (in) | 12.64 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.98 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 38.23 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 30.640000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | WiFi Capable |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 1 Year Parts, 2 Year Compressor |
DMS1Y4+000125 Specifications:
| Weight (lbs) | 0.000000 |
|---|---|
| Model | DMS1Y4+000125 |
