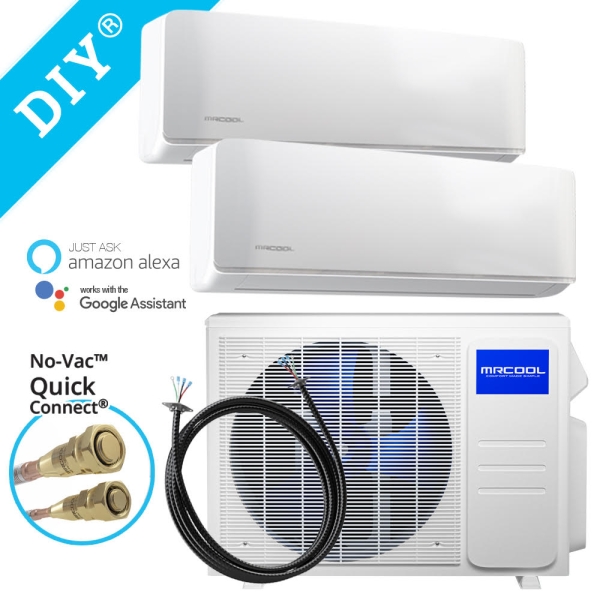

Heating or cooling two spaces in your home or office is easy with the 4th Generation MrCool DIY Multi-Zone 18k BTU 2 Zone Ductless Mini Split.

In stock

Ships Within 1-2 Business Days

This Bundle Includes:

Accessories
Description / Documents

Heating or cooling two spaces in your home or office is easy with the 4th Generation MrCool DIY Multi-Zone 18k BTU 2 Zone Ductless Mini Split.

The 4th Generation MrCool DIY Multi-Zone 18k BTU 2 Zone Ductless Mini Split comes with 2 air handlers, allowing for effective heating or cooling in two areas. The 9,000 BTU handler can cover an area between 375-450 square feet. The 12,000 BTU air handler heats or cools a space between 500-600 square feet, and you can install them without the help of an HVAC professional.

Installation of the 4th Generation MrCool DIY Multi-Zone 18k BTU 2 Zone Ductless Mini Split is simple thanks to the Quick Connect line set which comes pre charged with R410-A refrigerant, so no vacuum is needed. Another way that the installation is easy is because of the new DIYPRO cable. The cable provides superior mechanical protection from various elements outdoors without needing an electrical conduit.

Keep tabs on the MrCool DIY Ductless Mini Split with the easy-to-read LED display on the front of each handler. This will display any alerts or alarms in the unlikely event an issue arises. A troubleshooting code will appear on the display to identify a solution in the user manual.

Controlling the 4th Generation MrCool DIY Multi-Zone 18k BTU 2 Zone Ductless Mini Split is as easy as the installation process. The temperature can be adjusted through the SmartHVAC app, with the included remote, or with your Amazon Alexa or Google Assistant.

There are many modes and options to create the most comfortable environment to your liking. Use Auto mode to set it and forget it. The MrCool DIY Ductless Mini Split will automatically adjust to maintain the set temperature. This is thanks in part to the variable speed DC inverter.

You can save money while you sleep with Sleep mode. During this mode, the 4th Generation MrCool DIY Multi-Zone 18k BTU 2 Zone Ductless Mini Split adjusts the temperature 2 degrees F higher in the summer and cooler in the winter each hour for the first two hours of operation. Once it reaches that new temperature, it maintains it for the next 6 hours while you sleep. This helps save money and energy while you stay comfortable.

Other useful features include the drying function that dehumidifies the room and provides anti-mildew protection. The timer feature makes sure you're only using energy when you need it. Once the time has ended, the MrCool DIY Ductless Mini Split will shut off preventing the use of unnecessary energy. If a power outage occurs, the unit will immediately return to heating or cooling your space once power is restored.

Feel confident in purchasing the 4th Generation MrCool DIY Multi-Zone 18k BTU 2 Zone Ductless Mini Split with the 7-year compressor warranty and 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM218HPW01C07
UPC 818545025255
AHRI Number 207339196
Bundle Avg Coverage Area 750 - 900 Sq Ft
Bundle Cooling Capacity 1.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.6
Series DIY
Zones 2
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-MULTI2-18HP230C Specifications:

Model DIY-MULTI2-18HP230C
UPC 810063869496
AHRI Number 207339196
Product Height (in) 26.5
Avg Coverage Area 750 - 900 Sq Ft
Product Length (in) 13.46
Compressor Inverter
Product Width (in) 35.04
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.6
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 25 amps
Weight (lbs) 111.110000
Primary Heating Capacity 15,001 - 20,000 BTU
Refrigerant R-410a
Cooling Efficiency 19 SEER and Above
Cooling Efficiency (SEER2) 21
Series DIY
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Region Compatibility Nationwide

DIY-09-HP-WMAH-230C25 Specifications:

Model DIY-09-HP-WMAH-230C25
UPC 810063869533
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 34.400000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-12-HP-WMAH-230C25 Specifications:

Model DIY-12-HP-WMAH-230C25
UPC 810063869540
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 34.170000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY25-1412 Specifications:

Model DIY25-1412
UPC 810035931046
Liquid Line Size 1/4 inch
Weight (lbs) 15.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None
