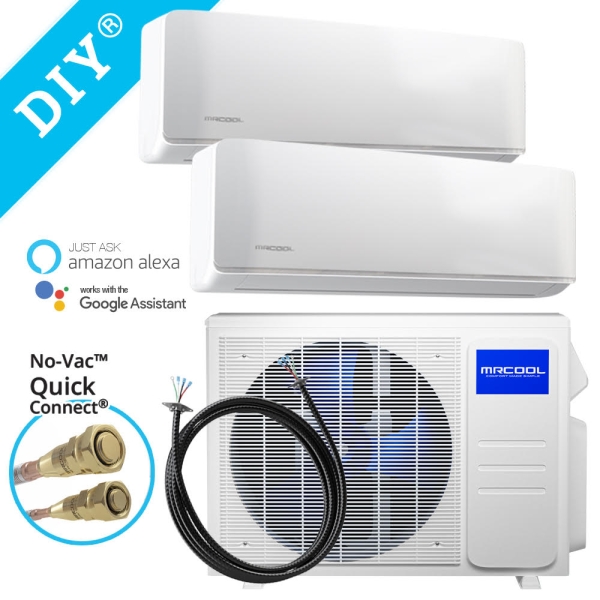

The 4th Generation MrCool DIY Multi-Zone 18k BTU 2 Zone Ductless Mini Split can cool or heat two spaces efficiently with easy installation that needs no special tools or training. The 18,000 BTU capacity condenser powers the two 9,000 BTU air handlers that can each heat or cool an area from 375-450 square feet.

This Bundle Includes:

Accessories
Description / Documents

The 4th Generation MrCool DIY Multi-Zone 18k BTU 2 Zone Ductless Mini Split can cool or heat two spaces efficiently with easy installation that needs no special tools or training. The 18,000 BTU capacity condenser powers the two 9,000 BTU air handlers that can each heat or cool an area from 375-450 square feet.

The 4th Generation MrCool DIY Multi-Zone 18k BTU 2 Zone Ductless Mini Split features easy installation without any prior experience or special tools. This is easy to accomplish without the help of an HVAC technician thanks to the Quick Connect line sets that are pre charged with R-410A refrigerant, a much more eco-friendly option. The DIYPRO cable adds to the easy installation process by providing durability and electrical protection without the need for an electrical conduit.

Not only can the 4th Generation MrCool DIY Multi-Zone 18k BTU 2 Zone Ductless Mini Split heat, cool, and dehumidify, but it can be operated with convenient options such as with your Amazon Alexa or Google Assistant, the Smart HVAC app on your Apple or Android device, or the included remote. Keep an eye on the temperature on the easy to read display as well as be informed of any alerts or issues with the system.

Each of the air handlers provides heated or cooled air to create the most comfortable environment in your space. Auto mode allows you to set a desired temperature and the MrCool DIY Ductless Mini Split will adjust accordingly to keep your room at that temperature. This is thanks in part to the variable speed DC inverter.

With Sleep mode, the 4th Generation MrCool DIY Multi-Zone 18k BTU 2 Zone Ductless Mini Split runs during an 8 hour window adjusting the temperature by 2 degrees F per hour for 2 hours and will run at that new, moderate temperature for the remaining 6 hours. You'll remain comfortable while saving energy and money while you sleep.

You can customize the MrCool DIY Ductless Mini Split to any specific need. In order to limit usage and save money on energy bills, utilize the system's timer function. If a power outage were to occur, the MrCool DIY Ductless Mini Split will automatically restart and begin working to return the temperature of the room to the one previously set.

If any problem does occur with the4th Generation MrCool DIY Multi-Zone 18k BTU 2 Zone Ductless Mini Split, you'll be able to see the troubleshooting code on the front display to address the issue according to the user friendly manual. Alerts to clean the air filter will also be displayed or if there is an unlikely refrigerant leak.

If other trouble arises, you can rest comfortably that the MrCool DIY Ductless Mini Split is backed by a 7-year compressor warranty and 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM218HPW00C07
UPC 818545024975
AHRI Number 207339196
Bundle Avg Coverage Area 750 - 900 Sq Ft
Bundle Cooling Capacity 1.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.6
Series DIY
Zones 2
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-MULTI2-18HP230C Specifications:

Model DIY-MULTI2-18HP230C
UPC 810063869496
AHRI Number 207339196
Product Height (in) 26.5
Avg Coverage Area 750 - 900 Sq Ft
Product Length (in) 13.46
Compressor Inverter
Product Width (in) 35.04
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.6
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 25 amps
Weight (lbs) 111.110000
Primary Heating Capacity 15,001 - 20,000 BTU
Refrigerant R-410a
Cooling Efficiency 19 SEER and Above
Cooling Efficiency (SEER2) 21
Series DIY
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Region Compatibility Nationwide

DIY-09-HP-WMAH-230C25 Specifications:

Model DIY-09-HP-WMAH-230C25
UPC 810063869533
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 34.400000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY25-1412 Specifications:

Model DIY25-1412
UPC 810035931046
Liquid Line Size 1/4 inch
Weight (lbs) 15.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None
