Item:
HA11045
Model:
MULTI2-18HP230V1
Condition:
New
18k-btu-mrcool-olympus-ductless-heat-pump-condenser-2-zone-ha11045-01.3548
Out of stock
Loading...

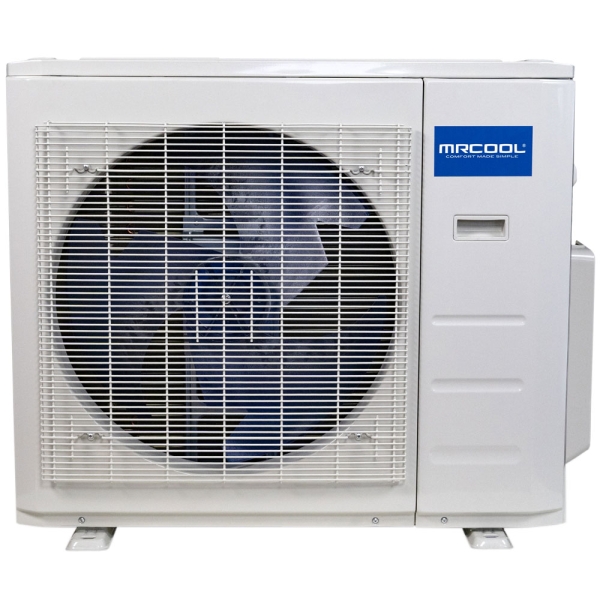

Multi-zone coverage is just one of the great features of a MRCOOL Olympus Series. This 18k BTU Ductless Heat Pump Condenser brings you double the comfort and none of the wasted energy of your old-school central systems. Connect one Olympus air handler in your living room and another in your bedroom. Environmentally friendly R-410A refrigerant is part of this unit's high SEER rating. Another plus: lifetime tech support!
Accessories
Thermostats WE RECOMMEND
mrcool-mini-stat-ir-wifi-thermostat-for-ductless-mini-split-ha21064-01.3548
MrCool Mini Stat IR WiFi Thermostat for Ductless Mini Split
Item #: HA21064
Price:
$87.95
Equipment Pads WE RECOMMEND
18-x-38-x-3-e-lite-plastic-equipment-pad-ha12037-01.3548
18" x 38" x 3" E Lite Plastic Equipment Pad
Item #: HA12037
Price:
$172.86
HVAC Parts & Accessories WE RECOMMEND
condenser-wall-mounting-kit-for-9k-to-18k-btu-mrcool-ductless-split-system-ha15993-01.3548
Condenser Wall Mounting Kit for 9k to 18k BTU MrCool Ductless Split System
Item #: HA15993
Price:
$77.00
mrcool-lineguard-4.5-line-set-cover-kit-12-ft-ha12096-01.3548
MrCool LineGuard 4.5" Line Set Cover Kit - 12 ft
Item #: HA12096
Price:
$132.00
12-x-6-ft-diversitech-non-metallic-electrical-whip-with-10-wire-ha12023-01.3548
1/2" x 6 Ft DiversiTech Non Metallic Electrical Whip with #10 Wire
Item #: HA12023
Price:
$72.53
non-fusible-60a-disconnect-switch-ha12034-01.3548
Non-Fusible 60A Disconnect Switch
Item #: HA12034
Price:
$59.34
foam-sealant-38-bead-12oz-ha12049-01.3548
Foam Sealant 3/8" Bead - 12oz
Item #: HA12049
Price:
$42.37
1.8-lb-r410a-refrigerent-refill-kit-with-gauge-ha12152-01.3681
1.8 lb R410a Refrigerent Refill Kit with Gauge
Item #: HA12152
Price:
$223.16
Description / Documents
Multi-zone coverage is just one of the great features of a MRCOOL Olympus Series. This 18k BTU Ductless Heat Pump Condenser brings you double the comfort and none of the wasted energy of your old-school central systems. Connect one Olympus air handler in your living room and another in your bedroom. Environmentally friendly R-410A refrigerant is part of this unit's high SEER rating. Another plus: lifetime tech support!
Additional Documents

From the Manufacturer

Customer Reviews / Q&A
Specifications

System Overview

Model MULTI2-18HP230V1
UPC 856536005831
Product Height (in) 28
Avg Coverage Area 750 - 900 Sq Ft
Product Length (in) 14
Compressor Inverter
Product Width (in) 33
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.3
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 25 amps
Weight (lbs) 106.000000
Primary Heating Capacity 15,001 - 20,000 BTU
Refrigerant R-410a
Cooling Efficiency 19 SEER and Above
Series Olympus
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Region Compatibility Nationwide
Parts

HVAC Parts & Accessories

  1. Pipe Temperature Sensor for MrCool Heat Pump Condenser
    Pipe Temperature Sensor for MrCool Heat Pump Condenser

    Item #:: HAP10087

    Model: 11201007000136

    Price:

    $53.79
  2. Room Temperature Sensor for MrCool Heat Pump Condenser
    Room Temperature Sensor for MrCool Heat Pump Condenser

    Item #:: HAP10291

    Model: 11201007000039

    Price:

    $55.32
  3. Water Collector for MrCool Ductless Heat Pump Condenser
    Water Collector for MrCool Ductless Heat Pump Condenser

    Item #:: HAP10334

    Model: 12122300000150

    Price:

    $63.17
  4. Axial Flow Fan for MrCool Ductless Heat Pump Condenser
    Axial Flow Fan for MrCool Ductless Heat Pump Condenser

    Item #:: HAP10517

    Model: 12100105000181

    Price:

    $66.10
    Out of stock
  5. Electronic Expansion Valve Subassembly for MrCool Ductless Heat Pump Condenser
    Electronic Expansion Valve Subassembly for MrCool Ductless Heat Pump Condenser

    Item #:: HAP11097

    Model: 15500213000046

    Price:

    $97.78
  6. Brushless DC Motor for MrCool Heat Pump Condenser DIY-18-HP-C-230B
    Brushless DC Motor for MrCool Heat Pump Condenser DIY-18-HP-C-230B

    Item #:: HAP11306

    Model: 11002015008365

    Price:

    $143.26
  7. Liquid Valve for MrCool Ductless Heat Pump Condenser
    Liquid Valve for MrCool Ductless Heat Pump Condenser

    Item #:: HAP11977

    Model: 15500208000028

    Price:

    $61.63
  8. Electronic Control Box Subassembly for MrCool Heat Pump Condenser MULTI2-18HP230V1
    Electronic Control Box Subassembly for MrCool Heat Pump Condenser MULTI2-18HP230V1

    Item #:: HAP12266

    Model: 17222300002628

    Price:

    $396.02
  9. Gas Valve for MrCool Ductless Heat Pump Condenser
    Gas Valve for MrCool Ductless Heat Pump Condenser

    Item #:: HAP12723

    Model: 15500204000021

    Price:

    $63.17
  10. DC Inverter Rotary Compressor for MrCool Heat Pump Condenser
    DC Inverter Rotary Compressor for MrCool Heat Pump Condenser

    Item #:: HAP13159

    Model: 11103020000499

    Price:

    $462.50
