This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

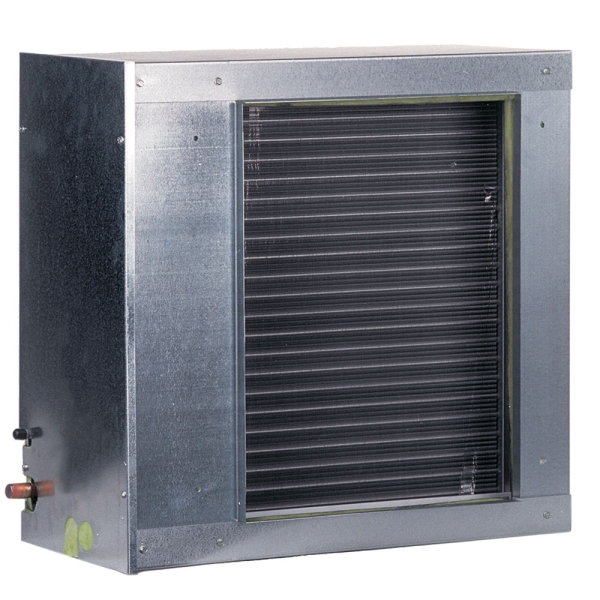

2.5 to 3 Ton Goodman Evaporator Coil - Horizontal Slab

Item: HA10495
Model: CSCF3036N6
Condition: New

2.5 to 3 Ton Goodman Evaporator Coil - Horizontal Slab Zoom

Photo Gallery

Why wouldn't you want a horizontal slab coil for a split system heat pump or air conditioner with rifled copper tubing, louvered aluminum fins, foil-face insulation, and a split-seam front panel for easy access? Well, you probably would want that. Which brings us to the Goodman CSCF30 Air Conditioner Horizontal Slab Coil with all that plus R-410A compatibility, thermoplastic drain pan, AHRI certification, and ETL listing.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Why wouldn't you want a horizontal slab coil for a split system heat pump or air conditioner with rifled copper tubing, louvered aluminum fins, foil-face insulation, and a split-seam front panel for easy access? Well, you probably would want that. Which brings us to the Goodman CSCF30 Air Conditioner Horizontal Slab Coil with all that plus R-410A compatibility, thermoplastic drain pan, AHRI certification, and ETL listing.
Goodman HA10495

Manufacturer Highlights

The Goodman® brand CSCF Series Evaporator Coil offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • All-Aluminum evaporator coil
  • Optimized for use with R-410a refrigerant
  • Some models suitable for use with R-410a or R-22 refrigerant
  • CAPT models feature factory-installed thermal expansion valves for cooling and heat pump applications
  • Check flowrator for cooling and heat pump applications
  • Vertical and horizontal models available
  • 21" depth for easier attic access
  • Split seam front for easy access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • UV-resistant drain pan
  • AHRI certified; ETL listed

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model CSCF3036N6
UPC 663051453456
Air Flow Direction Horizontal
Cooling Capacity 2.5 Ton, 3 Ton
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height (in) 25
Product Length (in) 33.5
Product Width (in) 12
Suction Line Size 7/8 inch
Warranty 10 Year Parts
Weight (lbs) 52.5000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
My system has 3/4" suction line, is that too small for 3T unit
WHAT TXV FITS THIS EVAP COIL
Can this coil go either side for supply line hook up?
