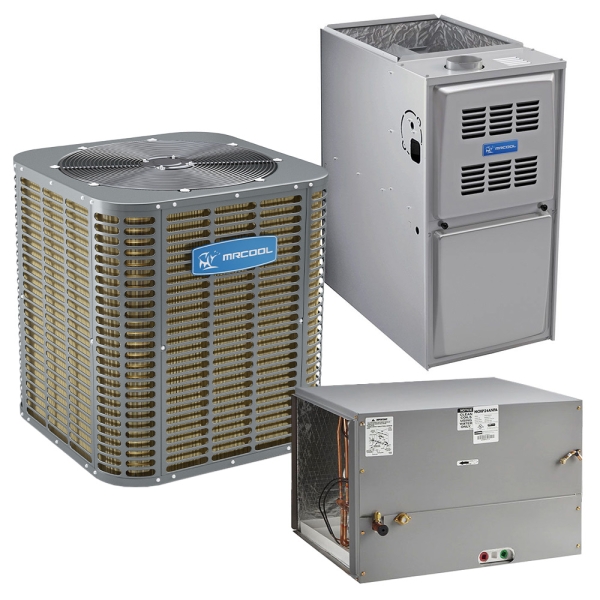

2.5 Ton 14.3 SEER2 70K BTU 80% AFUE MrCool Mixed Central Heat Pump & Gas Split System - Horizontal
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Contact an expert now.
70k BTU 80% AFUE MrCool Signature Gas Furnace - Upflow/Horizontal - 17.5" Cabinet
2.5 Ton MrCool Signature Evaporator Coil - Horizontal - 17.5" Cabinet
70k BTU 80% AFUE MrCool Signature Gas Furnace - Upflow/Horizontal - 17.5" Cabinet
Manufacturer Highlights
When harsh winter weather strikes, nothing compares to the warmth and safety a powerful reliable gas furnace can provide. While furnace heating technology has been around for decades, not all systems are created equally. Some are definitely better than others. One of the best on the market is the MRCOOL 70k BTU single stage, 80% AFUE gas furnace. This system can be installed upflow or horizontal, and is designed to operate for decades, provide powerful heating capability, and best of all, keep your heating bill affordable at the same time. It does the latter via its 80% AFUE energy efficiency rating. That mark of quality ensures 80% of every dollar you spend on heating fuel gets turned into real, effective heat for your home.
Standard Features
- Removable floor base for bottom return air
- Easily removable slide out blower design
- Left or right utility connections
- Zero step horizontal conversion
- Aluminized steel inshot burners for smooth ignition
- Variable speed high efficiency blower motor
- AHRI Certified
- Aluminized steel tapered crimped non-welded clam shell heat exchanger design
- Heating efficiency of 80% AFUE
- Registered 10-year parts warranty
- Compact 33 inch height
- Rotatable draft inducer for venting flexibility
| Model | HHP15030,MGM80SE070B3A,MCHP30BNPA |
|---|---|
| UPC | 663051672079 |
| Gas Furnace Efficiency | 80% |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 2.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.3 |
| EER2 | 11.7 |
| Heat Pump Efficiency (HSPF) | 7.5 |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
HHP15030 Specifications:
| Model | HHP15030 |
|---|---|
| UPC | 840255553841 |
| AHRI Number | 211727073 |
| Product Height (in) | 25 |
| Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Product Length (in) | 29.1428 |
| Compressor | Single Stage |
| Product Width (in) | 29.1428 |
| Cooling Capacity | 2.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF) | 7.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 152.000000 |
| Primary Heating Capacity | 25,001 - 30,000 BTU |
| Refrigerant | R-410a |
| Cooling Efficiency (SEER2) | 14.3 SEER2 |
| Series | ProDirect |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Compressor |
| Region Compatibility | Nationwide |
MGM80SE070B3A Specifications:
| Model | MGM80SE070B3A |
|---|---|
| UPC | 810512033621 |
| AHRI Number | 204085898 |
| Product Height (in) | 33 |
| Gas Furnace Efficiency | 80% |
| Product Length (in) | 28.5 |
| Configuration | Floor Mounted |
| Product Width (in) | 17.5 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 114.000000 |
| Primary Heating Capacity | 65,001 - 70,000 BTU |
| Series | Signature |
| System Application Type | Central Split Systems |
| Vent Connection | 4 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
MCHP30BNPA Specifications:
| Model | MCHP30BNPA |
|---|---|
| UPC | 810512033577 |
| Product Height (in) | 17.5 |
| Air Flow Direction | Horizontal |
| Product Length (in) | 21.5 |
| Cooling Capacity | 2.5 Ton |
| Product Width (in) | 26.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 53.000000 |
| Refrigerant | R-410a |
| Series | Signature |
| Suction Line Size | 3/4 inch |
| Warranty | 10 Year Parts |
