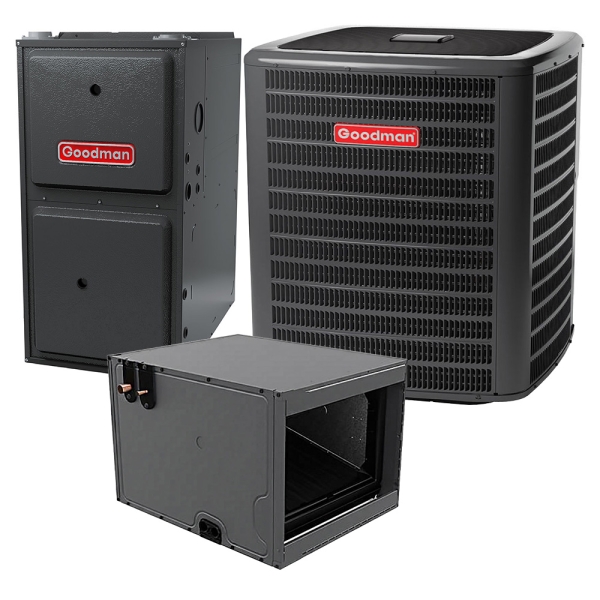

2.5 Ton 15.2 SEER2 60k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32
GOODMAN
Item:
HA27742
Model:
GLXS5BA3010,CHPTA3026B3,GR9T960603BN
Condition:
New
2.5 Ton Goodman Evaporator Coil - Horizontal - TXV - 17.5" Cabinet - R-32
Item: HA25205Model: CHPTA3026B3
Qty: 1
60k BTU 96% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet
Item: HA25342Model: GR9T960603BN
Qty: 1
Accessories
Description / Documents
Additional Documents
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | GLXS5BA3010,CHPTA3026B3,GR9T960603BN |
|---|---|
| AHRI Number | 215380596 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 2.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 15.2 |
| Primary Heating Capacity | 55,001 - 60,000 BTU |
| Region Compatibility | Nationwide |
GLXS5BA3010 Specifications:
| Model | GLXS5BA3010 |
|---|---|
| UPC | 663051735484 |
| AHRI Number | 215380415 |
| Product Height (in) | 39.5 |
| Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Product Length (in) | 35.5 |
| Compressor | Single Stage |
| Product Width (in) | 35.5 |
| Cooling Capacity | 2.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 192.000000 |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 15.2 |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
CHPTA3026B3 Specifications:
| Model | CHPTA3026B3 |
|---|---|
| UPC | 663051688506 |
| Product Height (in) | 17.5 |
| Air Flow Direction | Horizontal |
| Product Length (in) | 21 |
| Cooling Capacity | 2.5 Ton |
| Product Width (in) | 26 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 59.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
GR9T960603BN Specifications:
| Model | GR9T960603BN |
|---|---|
| AHRI Number | 215225026 |
| Product Height (in) | 34.5 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 28.75 |
| Product Width (in) | 17.5 |
| Air Flow Direction | Horizontal, Upflow |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 115.000000 |
| Primary Heating Capacity | 48,000 - 60,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
