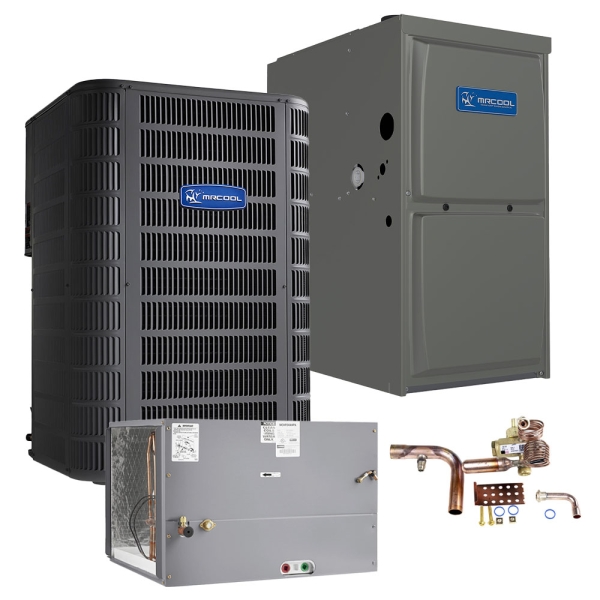

Prepare to leave the past behind you and step into the future of HVAC technology with the 2.5 Ton 16 SEER 70k BTU 96% AFUE MrCool Signature Central Air Conditioner & Gas Furnace Split System - Horizontal. Every element in this MrCool Split System is carefully chosen to deliver unmatched performance. Various components in this MrCool AC & Furnace package have secured AHRI certification, ETL listing, and ETLC approval, providing solid validation for all operational claims. Engineered to handle spaces ranging from 1250 to 1500 square feet while achieving an impressive SEER rating of 16, this 2.5 Ton MrCool system is the robust solution for year-round climate control in your home.
Accessories
Description / Documents

Prepare to leave the past behind you and step into the future of HVAC technology with the 2.5 Ton 16 SEER 70k BTU 96% AFUE MrCool Signature Central Air Conditioner & Gas Furnace Split System - Horizontal. Every element in this MrCool Split System is carefully chosen to deliver unmatched performance. Various components in this MrCool AC & Furnace package have secured AHRI certification, ETL listing, and ETLC approval, providing solid validation for all operational claims. Engineered to handle spaces ranging from 1250 to 1500 square feet while achieving an impressive SEER rating of 16, this 2.5 Ton MrCool system is the robust solution for year-round climate control in your home.

Fed up with the summer heat? The AC unit in the 2.5 Ton 16 SEER 70k BTU 96% AFUE MrCool Signature Central Air Conditioner & Gas Furnace Split System - Horizontal is here to bring in a breath of fresh, brisk air. This MrCool AC unit is designed to reduce utility costs with enhanced energy efficiency thanks to R-410A refrigerant, a factory-installed high-pressure switch, and a corrosion-resistant aluminum condenser coil. The reinforced cabinet of this MrCool Air Conditioner can withstand severe weather and other potential hazards while providing easy access to internal components through strategically placed access panels. Delivered to your home pre-wired and pre-charged to handle up to 15 feet of line set, even setup is more efficient in terms of time and cost than the competition.

Winter weather getting you down? It won't be any longer once you install the 2.5 Ton 16 SEER 70k BTU 96% AFUE MrCool Signature Central Air Conditioner & Gas Furnace Split System - Horizontal. This MrCool Furnace has hushed operation and minimal NOx emissions thanks to a multi-speed high-efficiency blower, aluminized steel inshot burners, and a single-stage gas valve that provide warmth even in frigid winter storms. The compact 33-inch cabinet features crimped non-welded construction and utility connections on both sides, able to accommodate your home's unique layout needs. With an exemplary gas furnace efficiency rating of 96%, you can rest easy knowing that less energy consumption results in greater performance.

Completing the remarkable bundle in the 2.5 Ton 16 SEER 70k BTU 96% AFUE MrCool Signature Central Air Conditioner & Gas Furnace Split System - Horizontal are the Evaporator Coil and Thermostatic Expansion Valve. The MrCool Expansion Valve provides extra control over refrigerant flow, enhancing the lifespan of the system. The MrCool Evaporator Coil features one of the industry's lowest water retention drain pans and the tubing placement beside the door split, making servicing a hassle-free task.

With a 10-year parts warranty, all that's left to do is make the first move. Elevate your home with this MrCool Split System and get every tool you need to feel like your staycation is a vacation.

Customer Reviews / Q&A
Specifications

System Overview

Model MAC16030A,MGM96SE070B3XA,MCHP30BNPA,H4TXV01
UPC 810512030958
AHRI Number 209872320
Gas Furnace Efficiency 96+%
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 2.5 Ton
Bundle Cooling Efficiency 16 SEER
EER 13
Series Signature
Region Compatibility Nationwide

MCHP30BNPA Specifications:

Model MCHP30BNPA
UPC 810512033577
Product Height (in) 17.5
Air Flow Direction Horizontal
Product Length (in) 21.5
Cooling Capacity 2.5 Ton
Product Width (in) 26.5
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Weight (lbs) 53.000000
Refrigerant R-410a
Series Signature
Suction Line Size 3/4 inch
Warranty 10 Year Parts

H4TXV01 Specifications:

Model H4TXV01
UPC 810512034680
Product Height (in) 3.7
Product Length (in) 9.7
Product Width (in) 5.8
Weight (lbs) 2.000000
