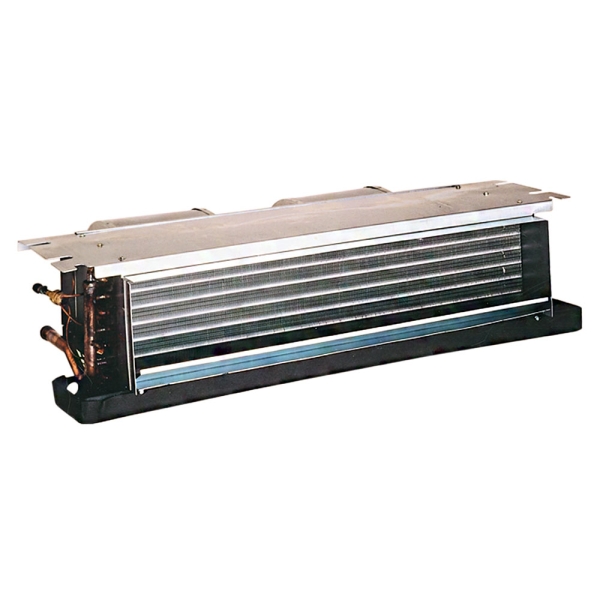

2.5 Ton Multi Speed Goodman Ceiling Mounted Air Handler - 5kW Heat Kit
Shop All GOODMAN
Item:
HA10022
Model:
ACNF310516
Condition:
New

This product has been discontinued.
The manufacturer has discontinued this product permanently. Please see the alternative product below.
Recommended Alternative:
Out of stock
Loading...
Solving space-premium installation problems is exactly what Goodman designed the ACNF Series Ceiling-Mount Air Handler to do. This high quality HVAC unit features a compact footprint, easy service access, compatibility with select Goodman air conditioner and heat pump condensers, and can operate on either R-22 or chlorine-free R-410A refrigerant. Supported long term by a 10-Year Limited Parts Warranty, the ACNF31 is also both AHRI Certified and ETL Listed.
Accessories
Description / Documents
Solving space-premium installation problems is exactly what Goodman designed the ACNF Series Ceiling-Mount Air Handler to do. This high quality HVAC unit features a compact footprint, easy service access, compatibility with select Goodman air conditioner and heat pump condensers, and can operate on either R-22 or chlorine-free R-410A refrigerant. Supported long term by a 10-Year Limited Parts Warranty, the ACNF31 is also both AHRI Certified and ETL Listed.
Additional Documents
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | ACNF310516 |
|---|---|
| UPC | 663051527539 |
| Product Height (in) | 10 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 21 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 49.25 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 2.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 5 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 79.000000 |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
