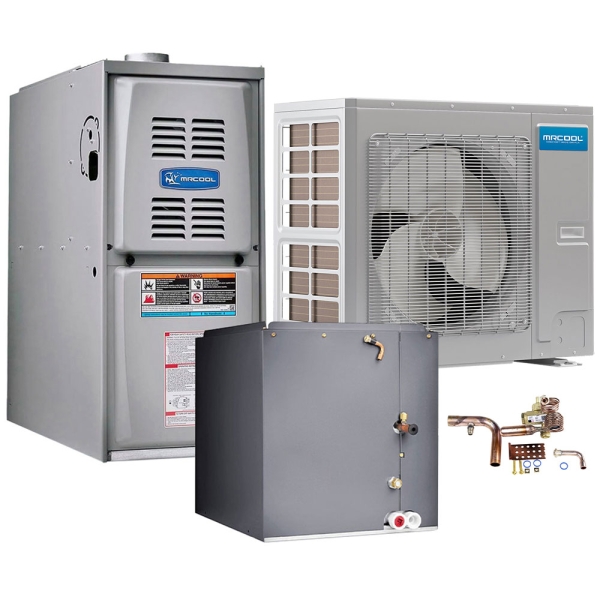

2 to 3 Ton 16 SEER2 45k BTU 80% AFUE MrCool Universal Central Heat Pump & Gas Furnace Split System - Upflow

Item
HA24086
Condition
New

Get $100 Cash Back on Your Qualifying Purchase

  1. Spend over $1000 on heating and air equipment.
  2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
  3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
  4. Get a check mailed to you for $100.

Limited Time Offer. Act Now!

Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


Get everything right and save time

Contact an expert now.

What's included



45k BTU 80% AFUE MrCool Signature Gas Furnace - Upflow/Horizontal - 14.5" Cabinet

45k BTU 80% AFUE MrCool Signature Gas Furnace - Upflow/Horizontal - 14.5

Manufacturer Highlights

When harsh winter weather strikes, nothing compares to the warmth and safety a powerful reliable gas furnace can provide. While furnace heating technology has been around for decades, not all systems are created equally. Some are definitely better than others. One of the best on the market is the MRCOOL 45k BTU single stage, 80% AFUE gas furnace. This system can be installed upflow or horizontal, and is designed to operate for decades, provide powerful heating capability, and best of all, keep your heating bill affordable at the same time. It does the latter via its 80% AFUE energy efficiency rating. That mark of quality ensures 80% of every dollar you spend on heating fuel gets turned into real, effective heat for your home.

Standard Features

  • Removable floor base for bottom return air
  • Easily removable slide out blower design
  • Left or right utility connections
  • Zero step horizontal conversion
  • Aluminized steel inshot burners for smooth ignition
  • Variable speed high efficiency blower motor
  • AHRI Certified
  • Aluminized steel tapered crimped non-welded clam shell heat exchanger design
  • Heating efficiency of 80% AFUE
  • Registered 10-year parts warranty
  • Compact 33 inch height
  • Rotatable draft inducer for venting flexibility

2 to 3 Ton 17 SEER2 MrCool Universal Central Heat Pump Condenser

2 to 3 Ton 17 SEER2 MrCool Universal Central Heat Pump Condenser

The 2 to 3 Ton 17 SEER2 MrCool Universal Central Heat Pump Condenser is a cutting edge HVAC technology from an innovation leader. The sophisticated tech inside this unit both regulates the temperature of your home and controls the compressor motor speed simultaneously. It eliminates extreme fluctuations in the operating load and extends the unit’s life.

  • 2 Ton Mode: 17 SEER2, 3 Ton Mode: 17 SEER2
  • Ultra Wide Operating Temperature Range
  • Gas Furnace Not Required
  • Compatible with any third party air handler and thermostat including WiFi/Nest/Honeywell
  • Rapid cooling and heating
  • Internal Fan Blade Creates Low Noise
  • Factory Charged R410
  • ETL and AHRI certified

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

More Information
Model MUH182436V24G845
UPC 840255583732
Gas Furnace Efficiency 80%
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 2 Ton, 2.5 Ton, 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
Bundle Cooling Efficiency (SEER2) 17
EER 12.2
EER2 10.2
Heat Pump Efficiency (HSPF) 10.5
Heat Pump Efficiency (HSPF2) 9
Series Universal
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

MDUO18024036 Specifications:

More Information
Model MDUO18024036
UPC 810512032921
Product Height (in) 32.3
Avg Coverage Area 1,000 - 1,500 Sq Ft
Product Length (in) 18
Compressor Inverter
Product Width (in) 37
Cooling Capacity 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.5
Heat Pump Efficiency (HSPF2) 9
Line Set Connection Type Quick Connect, Flared, or Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 40 amps
Weight (lbs) 236.000000
Primary Heating Capacity 24,000 - 36,000 BTU
Refrigerant R-410a
Cooling Efficiency 19 SEER and Above
Cooling Efficiency (SEER2) 17
Series Universal
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Region Compatibility Nationwide

MGM80SE045A3A Specifications:

More Information
Model MGM80SE045A3A
UPC 810512033614
AHRI Number 204085897
Product Height (in) 33
Gas Furnace Efficiency 80%
Product Length (in) 28.5
Configuration Floor Mounted
Product Width (in) 14.5
Air Flow Direction Horizontal, Upflow
Avg Coverage Area 750 - 900 Sq Ft
Blower Motor High Efficiency
Cooling Compatibility (up to) 3 Ton
Electrical Phase 1-Phase
Exhaust Pipe Metal
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Weight (lbs) 110.000000
Primary Heating Capacity 40,001 - 45,000 BTU
Series Signature
System Application Type Central Split Systems
Vent Connection 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger

H4TXV01 Specifications:

More Information
Model H4TXV01
UPC 810512034680
Product Height (in) 3.7
Product Length (in) 9.7
Product Width (in) 5.8
Weight (lbs) 2.000000
