2 to 3 Ton 16 SEER2 45k BTU 96% AFUE MrCool Universal Central Heat Pump & Gas Furnace Split System - Upflow

Item
HA24123
Models MDUO18024036, MCVP24BNPA, MGM96SE045B3XA, H4TXV01
Condition
New


Customize 2 to 3 Ton 16 SEER2 45k BTU 96% AFUE MrCool Universal Central Heat Pump & Gas Furnace Split System - Upflow

* Required Fields

In stock

Ships Within 1-2 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

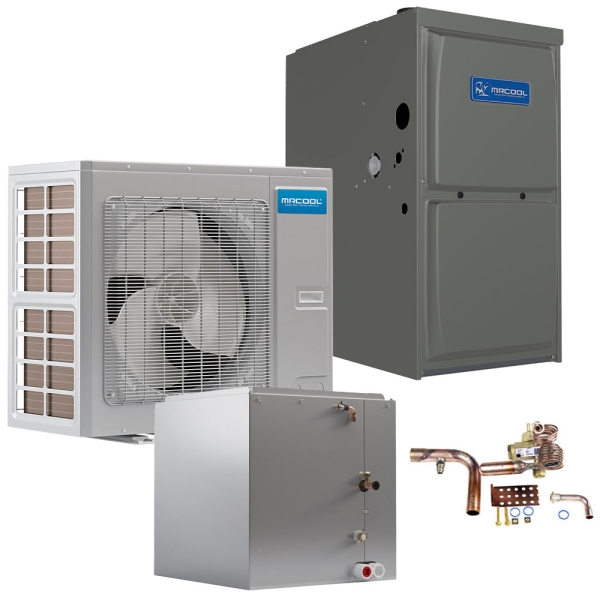

    What's included

    • MrCool MDUO18024036
    • MrCool MCVP24BNPA
    • MrCool MGM96SE045B3XA
    • MrCool H4TXV01
    • Owner Manual
    • Lifetime Tech Support


    2 Ton MrCool Signature Evaporator Coil - Vertical - 17.5" Cabinet

    2 Ton MrCool Signature Evaporator Coil - Vertical - 17.5

    Manufacturer Highlights

    This is a brand new 2 ton, R410A & R22 refrigerant, Upflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.

    Standard Features

    • Interlocking door assemblies and snug line sealgrommets to minimize air leakage
    • All units UL Listed and AHRI Certified
    • R22 & R410A compatible
    • Microban® antimicrobial additive in the drain pan to resist mold and mildew growth
    • Foil-face insulation for easy cleaning
    • All drain pans are compatible with UV lights
    • Mobile home approved
    • Superior service access to components, withtubing located at door split and foil-face insulation
    • 10-Year Parts Limited Warranty

    2 to 3 Ton 17 SEER2 MrCool Universal Central Heat Pump Condenser

    2 to 3 Ton 17 SEER2 MrCool Universal Central Heat Pump Condenser

    The 2 to 3 Ton 17 SEER2 MrCool Universal Central Heat Pump Condenser is a cutting edge HVAC technology from an innovation leader. The sophisticated tech inside this unit both regulates the temperature of your home and controls the compressor motor speed simultaneously. It eliminates extreme fluctuations in the operating load and extends the unit’s life.

    • 2 Ton Mode: 17 SEER2, 3 Ton Mode: 17 SEER2
    • Ultra Wide Operating Temperature Range
    • Gas Furnace Not Required
    • Compatible with any third party air handler and thermostat including WiFi/Nest/Honeywell
    • Rapid cooling and heating
    • Internal Fan Blade Creates Low Noise
    • Factory Charged R410
    • ETL and AHRI certified

    Warranty Terms

    For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

    For additional warranty information, click here.

    More Information
    Model MUH182436V24G945
    UPC 840255584104
    Gas Furnace Efficiency 96+%
    Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
    Bundle Cooling Capacity 2 Ton, 2.5 Ton, 3 Ton
    Bundle Cooling Efficiency 19 SEER and Above
    Bundle Cooling Efficiency (SEER2) 17
    EER 12.2
    EER2 10.2
    Heat Pump Efficiency (HSPF) 10.5
    Heat Pump Efficiency (HSPF2) 9
    Series Universal
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    MDUO18024036 Specifications:

    More Information
    Model MDUO18024036
    UPC 810512032921
    Product Height (in) 32.3
    Avg Coverage Area 1,000 - 1,500 Sq Ft
    Product Length (in) 18
    Compressor Inverter
    Product Width (in) 37
    Cooling Capacity 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton
    Electrical Phase 1-Phase
    Heat Pump Efficiency (HSPF) 10.5
    Heat Pump Efficiency (HSPF2) 9
    Line Set Connection Type Quick Connect, Flared, or Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 40 amps
    Weight (lbs) 236.000000
    Primary Heating Capacity 24,000 - 36,000 BTU
    Refrigerant R-410a
    Cooling Efficiency 19 SEER and Above
    Cooling Efficiency (SEER2) 17
    Series Universal
    Suction Line Size 3/4 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts
    Region Compatibility Nationwide

    MCVP24BNPA Specifications:

    More Information
    Model MCVP24BNPA
    Product Height (in) 18.5
    Air Flow Direction Upflow
    Product Length (in) 21
    Cooling Capacity 3 Ton
    Product Width (in) 17.5
    Liquid Line Size 3/8 inch
    Weight (lbs) 43.000000
    Refrigerant R-410a
    Series Signature
    Suction Line Size 3/4 inch

    MGM96SE045B3XA Specifications:

    More Information
    Model MGM96SE045B3XA
    UPC 840255553308
    AHRI Number 209832540
    Product Height (in) 33
    Gas Furnace Efficiency 96+%
    Product Length (in) 29
    Configuration Floor Mounted
    Product Width (in) 17.5
    Air Flow Direction Horizontal, Upflow
    Avg Coverage Area 750 - 900 Sq Ft
    Blower Motor High Efficiency
    Cooling Compatibility (up to) 3 Ton
    Electrical Phase 1-Phase
    Exhaust Pipe PVC
    Fuel Source Natural Gas
    Gas Valve Single Stage
    Max Overcurrent Protection 15 amps
    Weight (lbs) 124.000000
    Primary Heating Capacity 40,001 - 45,000 BTU
    Series Signature
    System Application Type Central Split Systems
    Vent Connection 2 inches, 3 inches
    Voltage 120
    Warranty 10 Year Parts, Lifetime Heat Exchanger

    H4TXV01 Specifications:

    More Information
    Model H4TXV01
    UPC 810512034680
    Product Height (in) 3.7
    Product Length (in) 9.7
    Product Width (in) 5.8
    Weight (lbs) 2.000000
