2 to 3 Ton 16 SEER2 70k BTU 96% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Horizontal

Item
HA24065
Models MDUCO18024036, MGM96SE070B3XA, MCHP24BNPA, H4TXV01
Condition
New


Customize 2 to 3 Ton 16 SEER2 70k BTU 96% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Horizontal

* Required Fields

In stock

Ships Within 1-2 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

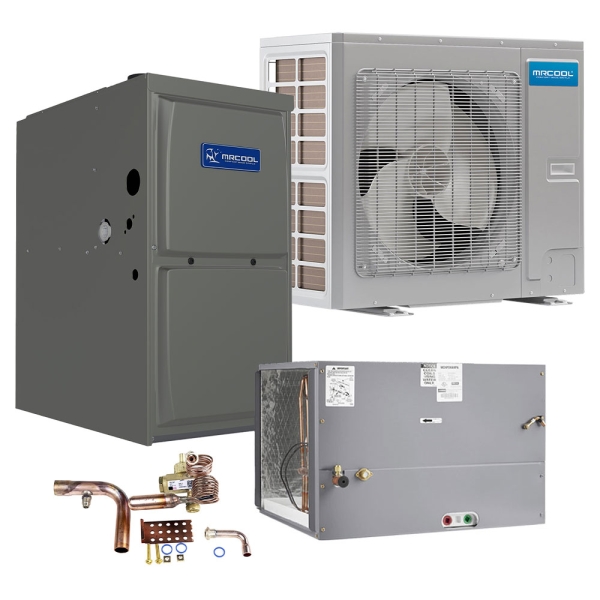

    What's included

    • MrCool MDUCO18024036
    • MrCool MGM96SE070B3XA
    • MrCool MCHP24BNPA
    • MrCool H4TXV01
    • Owner Manual
    • Lifetime Tech Support


    2 to 3 Ton 20 SEER MrCool Universal Central Air Conditioner Condenser

    2 to 3 Ton 20 SEER MrCool Universal Central Air Conditioner Condenser

    The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac Quick-Connect Line Set for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of up to a 20 SEER rating.

    • 2 Ton 20 SEER, 3 Ton 18 SEER
    • Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
    • Low Ambient Cooling Down to 39.2 Degrees F
    • Condensers Can Be Field Converted to smaller size using Dip Switch Setting
    • AHRI Certified & ETL listed
    • Slim Design
    • Quiet 55-58dB(a) Operation
    • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
    • Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
    • 10 Year Registered Limited Warranty

    Warranty Terms

    For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

    For additional warranty information, click here.

    More Information
    Model MUC182436H24G970
    UPC 840255583527
    Gas Furnace Efficiency 96+%
    Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
    Bundle Cooling Capacity 2 Ton, 2.5 Ton, 3 Ton
    Bundle Cooling Efficiency 19 SEER and Above
    Bundle Cooling Efficiency (SEER2) 16
    EER 12.2
    EER2 10.2
    Series Universal
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    MDUCO18024036 Specifications:

    More Information
    Model MDUCO18024036
    UPC 810063867485
    Product Height (in) 32.25
    Avg Coverage Area 1,000 - 1,500 Sq Ft
    Product Length (in) 37
    Compressor Inverter
    Product Width (in) 18.125
    Cooling Capacity 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Quick Connect, Flared, or Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 35 amps
    Weight (lbs) 208.300000
    Refrigerant R-410a
    Cooling Efficiency 19 SEER and Above
    Series Universal
    Suction Line Size 3/4 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts
    Region Compatibility North, Southeast

    MGM96SE070B3XA Specifications:

    More Information
    Model MGM96SE070B3XA
    UPC 840255553315
    AHRI Number 209832541
    Product Height (in) 33
    Gas Furnace Efficiency 96+%
    Product Length (in) 29
    Configuration Floor Mounted
    Product Width (in) 17.5
    Air Flow Direction Horizontal, Upflow
    Avg Coverage Area 1,250 - 1,500 Sq Ft
    Blower Motor High Efficiency
    Cooling Compatibility (up to) 3 Ton
    Electrical Phase 1-Phase
    Exhaust Pipe PVC
    Fuel Source Natural Gas
    Gas Valve Single Stage
    Max Overcurrent Protection 15 amps
    Weight (lbs) 129.000000
    Primary Heating Capacity 65,001 - 70,000 BTU
    Series Signature
    System Application Type Central Split Systems
    Vent Connection 2 inches, 3 inches
    Voltage 120
    Warranty 10 Year Parts, Lifetime Heat Exchanger

    MCHP24BNPA Specifications:

    More Information
    Model MCHP24BNPA
    UPC 810512033553
    Product Height (in) 17.5
    Air Flow Direction Horizontal
    Product Length (in) 21.5
    Cooling Capacity 2 Ton
    Product Width (in) 26.5
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 49.000000
    Refrigerant R-410a
    Series Signature
    Suction Line Size 3/4 inch
    Warranty 10 Year Parts

    H4TXV01 Specifications:

    More Information
    Model H4TXV01
    UPC 810512034680
    Product Height (in) 3.7
    Product Length (in) 9.7
    Product Width (in) 5.8
    Weight (lbs) 2.000000
