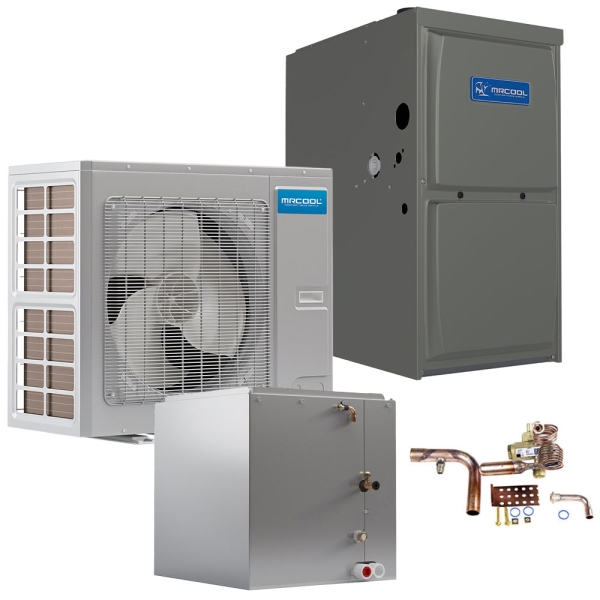

2 to 3 Ton 16 SEER2 90k BTU 96% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Upflow
Item
HA24054
Models MDUCO18024036, MGM96SE090C4XA, MCVP48CNPA, TXV-48
Condition
New
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Get everything right and save time
Contact an expert now.
Item: HA22598 Model: MGM96SE090C4XA
Qty: 1
Item: HA18508 Model: MCVP48CNPA
Qty: 1
Have you been searching for a more effective way to enjoy consistent comfort in your home? Rather than navigating the myriad of options on the market, you can tackle the inconsistent temperature shifts by swapping out your existing system for the 2 to 3 Ton 16 SEER2 90k BTU 96% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Upflow. This Upflow Universal MrCool earns a SEER2 rating of 16 and an impressive AFUE rating of 96%, putting these alongside UL listing, AHRI certification, and ETL listing to authenticate the validity of every functional claim. Offering the dependable climate control you desire, your 1250 to 1500 square foot living space will finally handle your home.
Outfitted with a slew of robust features, the 2 to 3 Ton 16 SEER2 90k BTU 96% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Upflow blows away the competition to provide unrivaled results. Granting connectivity options such as flare fitting, sweat braze fitting, or pre-charged no-vac quick connect line sets, with length options available in 15 ft, 25 ft, 35 ft, and 50 ft, you have the adaptability to guarantee the ideal fit for your home. With a user-friendly metal filter that's easy to maintain, you're shielded from issues like fire hazards, corrosion, and degradation without the concern of regular filter replacements over the years. Integrating an AC condenser, gas furnace, evaporator coil, and thermostatic expansion valve, this bundle offers a full solution that can manage every demand of your space.
Taking these qualities to the next level, the 2 to 3 Ton 16 SEER2 90k BTU 96% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Upflow doesn't just rest on its laurels. Taking advantage of a highly efficient, energy-saving DC fan motor and a soundless internal fan blade, your comfort is the focus in every way. With a specialized fire-proof electrical box design that promises anti-electric shock protection reserved installation space for the circuit breaker on top of two-step condensation safety precautions, you can use every protection included in this MrCool Split System. Certified for use in manufactured housing, you can finally relax knowing this Low NOx Upflow Universal MrCool is ready to make a noteworthy difference in your living space.
Supported by a limited warranty that covers 10 years on parts and a lifetime on the heat exchanger, why put off your choice any further? Obtain this MrCool Universal Split System today and turn your home into the tranquil oasis you've been hoping for.
4 Ton MrCool Signature Evaporator Coil - Vertical - 21" Cabinet
Manufacturer Highlights
This is a brand new 4 ton, R410A & R22 refrigerant, Upflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.
Standard Features
- Interlocking door assemblies and snug line sealgrommets to minimize air leakage
- All units UL Listed and AHRI Certified
- R22 & R410A compatible
- Microban® antimicrobial additive in the drain pan to resist mold and mildew growth
- Foil-face insulation for easy cleaning
- All drain pans are compatible with UV lights
- Mobile home approved
- Superior service access to components, withtubing located at door split and foil-face insulation
- 10-Year Parts Limited Warranty
2 to 3 Ton 20 SEER MrCool Universal Central Air Conditioner Condenser
The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac Quick-Connect Line Set for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of up to a 20 SEER rating.
- 2 Ton 20 SEER, 3 Ton 18 SEER
- Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
- Low Ambient Cooling Down to 39.2 Degrees F
- Condensers Can Be Field Converted to smaller size using Dip Switch Setting
- AHRI Certified & ETL listed
- Slim Design
- Quiet 55-58dB(a) Operation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
- 10 Year Registered Limited Warranty
| Model | MUC182436V48G990 |
|---|---|
| UPC | 840255583411 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 2 Ton, 2.5 Ton, 3 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| Bundle Cooling Efficiency (SEER2) | 16 |
| EER | 12.2 |
| EER2 | 10.2 |
| Series | Universal |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
MDUCO18024036 Specifications:
| Model | MDUCO18024036 |
|---|---|
| UPC | 810063867485 |
| Product Height (in) | 32.25 |
| Avg Coverage Area | 1,000 - 1,500 Sq Ft |
| Product Length (in) | 37 |
| Compressor | Inverter |
| Product Width (in) | 18.125 |
| Cooling Capacity | 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 208.300000 |
| Refrigerant | R-410a |
| Cooling Efficiency | 19 SEER and Above |
| Series | Universal |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | North, Southeast |
MGM96SE090C4XA Specifications:
| Model | MGM96SE090C4XA |
|---|---|
| UPC | 840255553322 |
| AHRI Number | 209832542 |
| Product Height (in) | 33 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 29 |
| Configuration | Floor Mounted |
| Product Width (in) | 21 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 4 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 152.000000 |
| Primary Heating Capacity | 85,001 - 90,000 BTU |
| Series | Signature |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
MCVP48CNPA Specifications:
| Model | MCVP48CNPA |
|---|---|
| Product Height (in) | 27.5 |
| Air Flow Direction | Upflow |
| Product Length (in) | 21 |
| Cooling Capacity | 4 Ton |
| Product Width (in) | 21 |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 60.000000 |
| Refrigerant | R-410a |
| Series | Signature |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
TXV-48 Specifications:
| Model | TXV-48 |
|---|---|
| UPC | 0 |
| Product Height (in) | 3.75 |
| Product Length (in) | 5.5 |
| Product Width (in) | 5 |
| Weight (lbs) | 2.000000 |
| Warranty | 1 Year |
