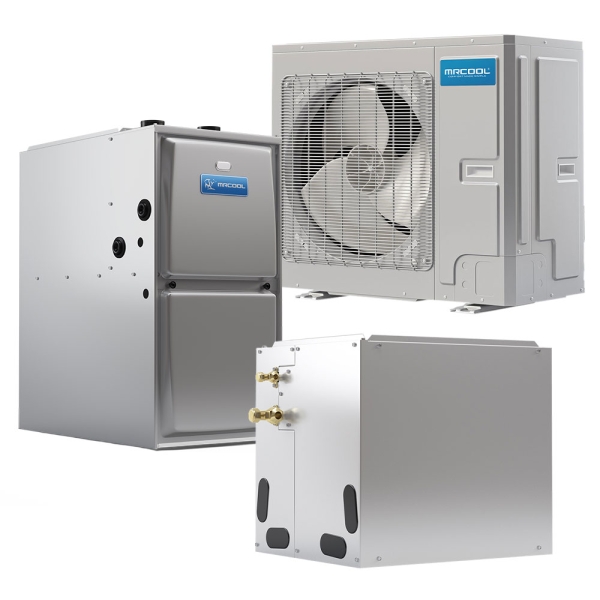

2 to 3 Ton 20 SEER 45k BTU 95% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Upflow/Horizontal
Shop All MRCOOL

Accessories
Description / Documents
Spend your time at home enjoying the best comfort attainable throughout the whole year with this 2 to 3 Ton 20 SEER 45k BTU 95% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Upflow/Horizontal. You'll be ecstatic once this system is installed in your home and you start saving money on your bills every month, thanks to this system's high quality design and construction. This modern system is also extremely easy to install if you use the Universal's MrCool No-Vac Quick Connect pre-charged line sets to hasten the installation of the condenser and the evaporator coil. This MrCool 2 to 3 Ton 45k BTU Universal Central Air Conditioner and Gas Furnace Split System will give you the comfort that you need all year long.
You can feel impressive cooling comfort all summer long with the 2 to 3 ton Universal absorbing and removing the heat from your home. This system is easy to install because it is pre-charged with R-410A refrigerant. The evaporator coil has many protections against high pressure, high discharge temperature, overload, IPM, and PFC. The 2 to 3 ton Universal condenser can bring you impressive cooling power in even the hottest weather and in temperatures as low as 39.2 degrees F. Even with this impressive power, this unit has components like a DC fan motor that help save money and conserve energy. The Universal condenser gives you three installation options to best suit your needs, which are with the pre-charged line set, with flare fittings, or with sweat braze fittings. With this Universal system, you can finally chill out and rest in your home.
Your winters will be cozy and warm when this 45K BTU 95% AFUE gas furnace starts using its aluminized steel crimped non-welded primary heat exchanger and its AL 29-4C stainless steel secondary heat exchanger in order to create the most comforting heat you could ever feel. The multi-speed high-efficiency constant torque blower motor is able to ensure that your whole home is filled with the exact temperature that you select as it lowers the energy that your system uses. You can't beat the comforting, efficient heat made by a good, reliable furnace like this gas furnace.
When you're looking for a new home comfort unit, you want to experience the least stress possible. This AHRI-certified and ETL-listed system's impressive warranties can help with that! For ultimate comfort, choose this 2 to 3 Ton 20 SEER 45k BTU 95% AFUE Universal Central Air Conditioner and Gas Furnace Split System from MrCool.
Customer Reviews / Q&A
Specifications
System Overview
| Model | MDAGM0240369545 |
|---|---|
| UPC | 840255512121 |
| Gas Furnace Efficiency | 95% |
| Bundle Cooling Capacity | 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 12.5 (2 Ton), 11 (3 Ton) |
| Series | Universal |
| Region Compatibility | Nationwide |
MGM95SE045B3XA Specifications:
| Model | MGM95SE045B3XA |
|---|---|
| UPC | 810512031313 |
| AHRI Number | 204085887 |
| Product Height (in) | 33 |
| Gas Furnace Efficiency | 95% |
| Product Length (in) | 28.5 |
| Configuration | Floor Mounted |
| Product Width (in) | 17.5 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 750 - 900 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 123.000000 |
| Primary Heating Capacity | 40,001 - 45,000 BTU |
| Series | Signature |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
