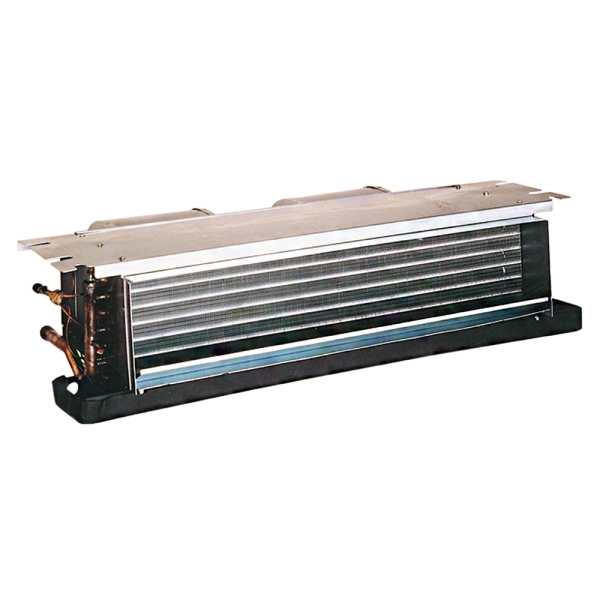

2 Ton Multi Speed Goodman Ceiling Mounted Air Handler - 8kW Heat Kit

Item: HA10009
Model: ACNF240816
Condition: New

2 Ton Multi Speed Goodman Ceiling Mounted Air Handler - 8kW Heat Kit Zoom

Photo Gallery

A ceiling mounted air handling unit can be an ideal companion to an air conditioner or heat pump condenser. Units like the Goodman ACNF24 Ceiling Mount 7.3 kW Air Handler are designed to fit in compact locations where a typical air handling unit would be impractical. It features multi-speed and direct drive function, a high-efficiency evaporator coil, quiet operation, AHRI certification, ETL listing, and that legendary Goodman quality and durability guarantee.

Availability: Out of stock

$638.00

Call for availability

Up To $500 Cash Back

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

A ceiling mounted air handling unit can be an ideal companion to an air conditioner or heat pump condenser. Units like the Goodman ACNF24 Ceiling Mount 7.3 kW Air Handler are designed to fit in compact locations where a typical air handling unit would be impractical. It features multi-speed and direct drive function, a high-efficiency evaporator coil, quiet operation, AHRI certification, ETL listing, and that legendary Goodman quality and durability guarantee.
Goodman HA10009

Manufacturer Highlights

The Goodman® brand ACNF Series Ceiling Mounted Air Handlers offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Suitable for use with refrigerants R-410A and R-22
  • Check flowrater for heat pump and cooling-only applications
  • All-Aluminum tube/aluminum fin coil
  • Direct-drive, resilient-mount, multi-speed motor
  • Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
  • High-efficiency evaporator coil
  • Quiet operation
  • Available with and without heat
  • AHRI Certified
  • ETL Listed
  • Primary/secondary drain connection in a high-temperature plastic drain pan
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model ACNF240816
UPC 663051523272
Air Flow Direction Horizontal
Configuration Ceiling Mounted
Blower Motor Multi Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 8 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 45 amps
Product Height (in) 10
Product Length (in) 21
Product Width (in) 43.25
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 69.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Can you mount it yourself
