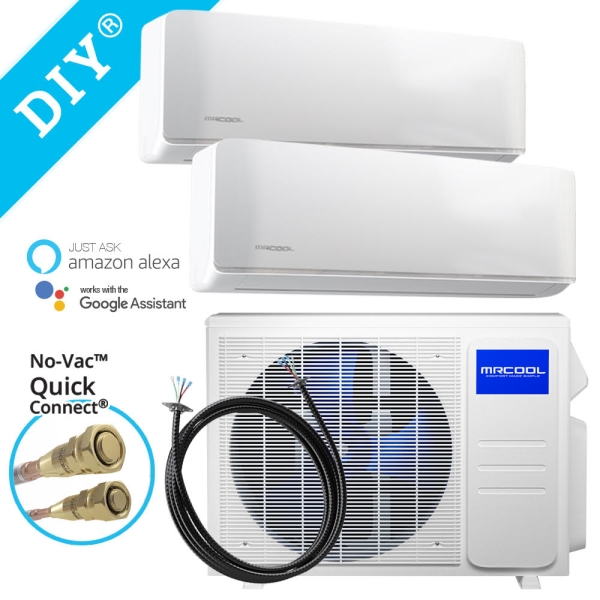

Heat or cool two areas in your home or office with the 4th Generation MrCool DIY Multi-Zone 21k BTU 2 Zone Ductless Mini Split. The unit, which reverses the air conditioning process to heat your home, is easy to install with no HVAC professional needed. No special tools or training are needed.
Accessories
Description / Documents

Heat or cool two areas in your home or office with the 4th Generation MrCool DIY Multi-Zone 21k BTU 2 Zone Ductless Mini Split. The unit, which reverses the air conditioning process to heat your home, is easy to install with no HVAC professional needed. No special tools or training are needed.

The 4th Generation MrCool DIY Multi-Zone 21k BTU 2 Zone Ductless Mini Split comes with two air handlers to properly heat or cool two areas in your home. The 12,000 BTU handler efficiently heats or cools a space between 500-600 square feet while the 9,000 BTU handler can cover an area between 375-450 square feet.

The 4th Generation MrCool DIY Multi-Zone 21k BTU 2 Zone Ductless Mini Split installation is simple and can be completed by the most novice homeowner. This is most convenient thanks to the Quick Connect line set and the DIYPRO cable. The line set comes pre charged with R410-A refrigerant, which is a more eco-friendly alternative. The DIYPRO cable provides mechanical protection from yard tools, animals, or weather–all without an electrical conduit.

The digital display on the front of each air handler can allow you to see the temperature, and also any warnings or alerts, so you'll feel confident that any issue that arises can be easily and quickly addressed. If a problem occurs, the display will show a troubleshooting code to be identified in the user manual.

Installation is easy and so is control of the 4th Generation MrCool DIY Multi-Zone 21k BTU 2 Zone Ductless Mini Split. The temperature can be adjusted wirelessly either from the SmartHVAC app, the included remote, or your Amazon Alexa or Google Assistant.

You can reach the comfort level you desire thanks to the directional control of heat or air. If you set the unit to auto mode, the system will automatically adjust the temperature you want it to remain on. This is thanks in part to the variable speed DC inverter.

The sleep mode adjusts the temperature by 2 degrees F each hour for two hours before remaining the new temperature for six hours. You'll save on energy costs while you sleep. The drying function not only dehumidifies the room, but also provides anti-mildew protection for the air handler unit. The 4th Generation MrCool DIY Multi-Zone 21k BTU 2 Zone Ductless Mini Split also includes a timer feature that can save your energy costs. Another unique feature is that the unit will automatically restart and begin cooling or heating your space once power returns after an outage.

You can feel secure knowing that the system is backed by a 7-year compressor warranty and a 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM227HPW00C07
UPC 818545025538
AHRI Number 207339195
Bundle Avg Coverage Area 750 - 900 Sq Ft
Bundle Cooling Capacity 1.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12
Heat Pump Efficiency (HSPF) 10.3
Series DIY
Zones 2
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-09-HP-WMAH-230C25 Specifications:

Model DIY-09-HP-WMAH-230C25
UPC 810063869533
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-12-HP-WMAH-230C25 Specifications:

Model DIY-12-HP-WMAH-230C25
UPC 810063869540
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
