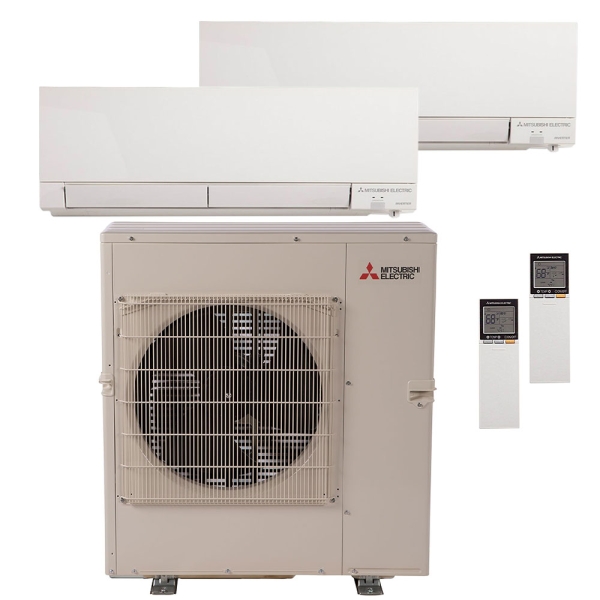

24k BTU 20 SEER Mitsubishi M Series Ductless Heat Pump Split System - Wall Mounted - 15k+15k

Models MXZ-3C24NA2-U1, MSZ-FH15NA

Customize 24k BTU 20 SEER Mitsubishi M Series Ductless Heat Pump Split System - Wall Mounted - 15k+15k

* Required Fields

In stock

Ships Within 2-3 Business Days

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.

    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    24k BTU 18 SEER Mitsubishi M Series Ductless Heat Pump Condenser
    Item: HA16575 Model: MXZ-3C24NA2-U1
    Qty: 1

    What's included

    The Mitsubishi M Series Ductless Heat Pump Split System is an outdoor condenser that supports up to three indoor units, allowing you to create a custom zoned heating and cooling system based entirely around the specific needs of your home. With a broad range of compatible indoor units and efficiency-boosting inverter technology, this system comes equipped to improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow. Compatible with a variety of indoor units from Mitsubishi.

    Warranty Terms

    For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

    For additional warranty information, click here.

    More Information
    Model MXZ-3C24NA2-U1,MSZ-FH15NA,MSZ-FH15NA
    AHRI Number 201754902
    Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
    Bundle Cooling Capacity 2.5 Ton
    Bundle Cooling Efficiency 19 SEER and Above
    EER 13.6
    Heat Pump Efficiency (HSPF) 9.8
    Zones 2
    Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    MXZ-3C24NA2-U1 Specifications:

    More Information
    Model MXZ-3C24NA2-U1
    UPC 00622632120439
    Product Height (in) 31.34
    Avg Coverage Area 1,000 - 1,200 Sq Ft
    Product Length (in) 13
    Compressor Inverter
    Product Width (in) 37.41
    Cooling Capacity 2 Ton
    Electrical Phase 1-Phase
    Heat Pump Efficiency (HSPF) Up to 9.8
    Line Set Connection Type Flared
    Liquid Line Size 1/4 inch
    Max Overcurrent Protection 25 amps
    Weight (lbs) 137.000000
    Primary Heating Capacity 20,001 - 25,000 BTU
    Refrigerant R-410a
    Cooling Efficiency 18 SEER
    Suction Line Size 3/8 inch
    System Application Type Ductless Split Systems
    Voltage 240
    Warranty 5 Year Parts, 7 Year Compressor
    Region Compatibility Nationwide

    MSZ-FH15NA Specifications:

    More Information
    Model MSZ-FH15NA
    UPC 00622632130124
    Product Height (in) 12.69
    Configuration Wall Mounted
    Product Length (in) 9.19
    Air Flow Direction Horizontal
    Product Width (in) 36.44
    Blower Motor Variable Speed
    Cooling Capacity 1 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Flared
    Liquid Line Size 1/4 inch
    Max Overcurrent Protection 20 amps
    Weight (lbs) 34.000000
    Suction Line Size 1/2 inch
    System Application Type Ductless Split Systems
    Voltage 240
    Warranty 5 Year Parts
