27k BTU 22 SEER Multi-Zone MrCool DIY 2 Zone Ductless Heat Pump Split System 4th Generation - 9k+18k
Shop All MRCOOL

Accessories
Description / Documents

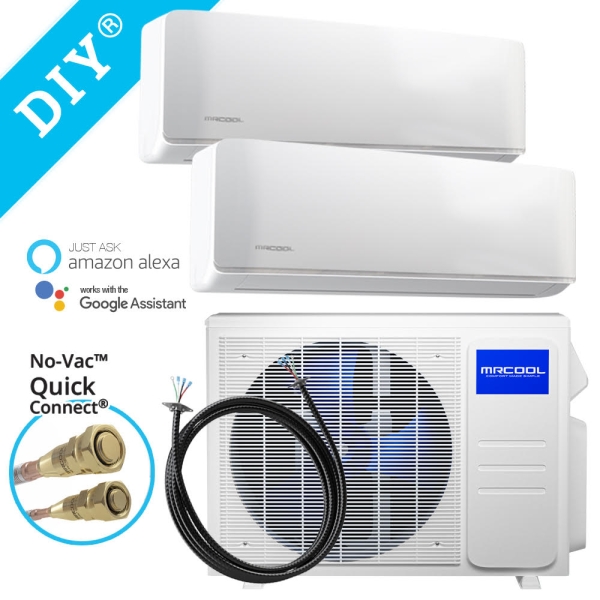

You can enjoy comfortable heating or cooling in two separate areas with the 4th Generation MrCool DIY Multi-Zone 27k BTU 2 Zone Ductless Mini Split and it's one outdoor condenser and 2 indoor air handlers. The heat pump cools but can also pull in air from outside in order to heat the space during cold weather.
The outdoor heat pump unit of the 4th Generation MrCool DIY Multi-Zone 27k BTU 2 Zone Ductless Mini Split can heat up to 27,000 BTU. A 750-900 square foot room can be easily heated or cooled by the included 18,000 BTU air handler. The other 9,000 BTU air handler is capable of heating or cooling a room between 375-450 square feet.
No worries about special tools, training, or hiring an HVAC professional. Even the novice homeowner can handle installing the 4th Generation MrCool DIY Multi-Zone 27k BTU 2 Zone Ductless Mini Split. The system uses Quick Connect line sets precharged with R410-A refrigerant which is more eco-friendly than other forms of refrigerant. The DIYPRO cable provides excellent mechanical protection without the need for an electrical conduit.
The temperature can be easily checked with a quick look at the digital display on the front of each air handler. Another way to check the temperature and adjust it if needed is with the convenient SmartHVAC app on your Apple or Android device. You can also change the temperature with the included remote or with your Amazon Alexa or Google Assistant.
There are many various modes for you to choose from when using the 4th Generation MrCool DIY Multi-Zone 27k BTU 2 Zone Ductless Mini Split. The auto mode allows you to set one temperature and the condenser works to keep your space that desired temperature consistently. This is thanks in part to the variable speed DC inverter. The timer feature will save you money by running the unit for a designated period of time. Sleep mode will adjust the temperature by 2 degrees every hour for 2 hours then maintain that temperature for 6 hours, saving you energy costs while you sleep.
For ultimate convenience, if a power outage occurs, the MrCool DIY Ductless Mini Split will automatically turn on and resume heating or cooling your space as soon as power is restored.
Maintenance of the 4th Generation MrCool DIY Multi-Zone 27k BTU 2 Zone Ductless Mini Split is easy and convenient as well. There are many built-in alerts and reminders such as unlikely refrigerant leaks or reminders to clean or replace the filter. Codes for troubleshooting will appear on the LED display to reference in the user manual in order to solve the issue. Maintaining the outside of the units is simple by wiping down with a dry or damp cloth, and cleaning the air filters just requires rinsing with water and allowing to dry before replacing.
You can feel confident in your decision to purchase the MrCool DIY Ductless Mini Split thanks to the 7-year compressor warranty and 5 year parts warranty.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | DIYM227HPW01C07 |
|---|---|
| UPC | 818545025811 |
| AHRI Number | 207339195 |
| Bundle Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Bundle Cooling Capacity | 2 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 12 |
| Heat Pump Efficiency (HSPF) | 10.3 |
| Series | DIY |
| Zones | 2 |
| Popular Applications | Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom |
| Region Compatibility | Nationwide |
DIY-09-HP-WMAH-230C25 Specifications:
| Model | DIY-09-HP-WMAH-230C25 |
|---|---|
| UPC | 810063869533 |
| Product Height (in) | 11.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.44 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 23.810000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
DIY-18-HP-WMAH-230C25 Specifications:
| Model | DIY-18-HP-WMAH-230C25 |
|---|---|
| UPC | 810063868512 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 34.610000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
