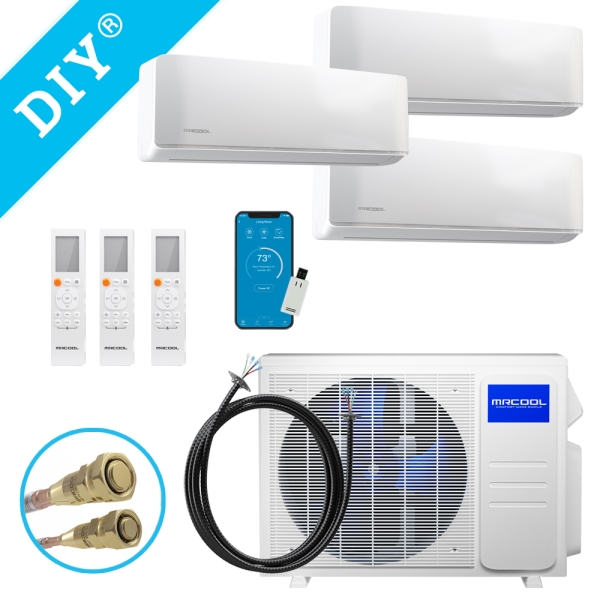

27k BTU 22 SEER Multi-Zone MrCool DIY 3 Zone Ductless Heat Pump Split System 4th Generation - 9k+12k+12k
Shop All MRCOOL

Accessories
Description / Documents
The 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split will heat or cool 3 different rooms while being easy to install all on your own. The 3 indoor air handlers can heat or cool 3 spaces between 375-450 square feet (the 9,000 BTU handler) and 500-600 square feet (the two 12,000 BTU handlers).
You can easily install the 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split yourself without any HVAC professional assistance. The Quick Connect line set comes pre charged with R410-A refrigerant, an eco-friendly alternative to previous versions of refrigerant. The new DIYPRO cable also eases installation by providing excellent mechanical protection without the use of an electrical conduit. No need for special training or tools to install.
The 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split is easy to control and monitor as it effectively and efficiently works to heat or cool your space during all seasons. Simply use the SmartHVAC app, your Amazon Alexa or Google Assistant, or the included remote.
There are many modes available with the MrCool DIY Ductless Mini Split to give you ultimate control of your comfort. The auto mode conveniently lets you set a specific temperature and forget it. The system will run to maintain that temperature without any adjustment from you. The Sleep mode allows for the conservation of energy while you sleep. It automatically adjusts the temperature to a more energy efficient level and maintains it for 8 hours.
The 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split has many features and options that make your comfort experience customizable. The anti-mildew function runs a low air flow for 10 minutes after shutting off in order to eliminate excess condensation. The timer function will run the unit for a designated period of time before shutting off, saving you energy and utility costs.
If any potential issues arise, they will appear on the LED display. You can quickly address the problem by identifying the troubleshooting code in the user manual. Maintenance of the MrCool DIY Ductless Mini Split is as simple as wiping down the indoor and outdoor unit with a dry or damp cloth.
Feel confident in the investment of the 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split thanks to the 7 year compressor warranty and 5 year parts warranty.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | DIYM327HPW02C28 |
|---|---|
| UPC | 810080362475 |
| AHRI Number | 207339195 |
| Bundle Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Bundle Cooling Capacity | 2 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 12 |
| Heat Pump Efficiency (HSPF) | 10.3 |
| Series | DIY |
| Zones | 3 |
| Popular Applications | Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom |
| Region Compatibility | Nationwide |
DIY-09-HP-WMAH-230C25 Specifications:
| Model | DIY-09-HP-WMAH-230C25 |
|---|---|
| UPC | 810063869533 |
| Product Height (in) | 11.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.44 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 23.810000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
DIY-12-HP-WMAH-230C25 Specifications:
| Model | DIY-12-HP-WMAH-230C25 |
|---|---|
| UPC | 810063869540 |
| Product Height (in) | 11.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.44 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 23.810000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
