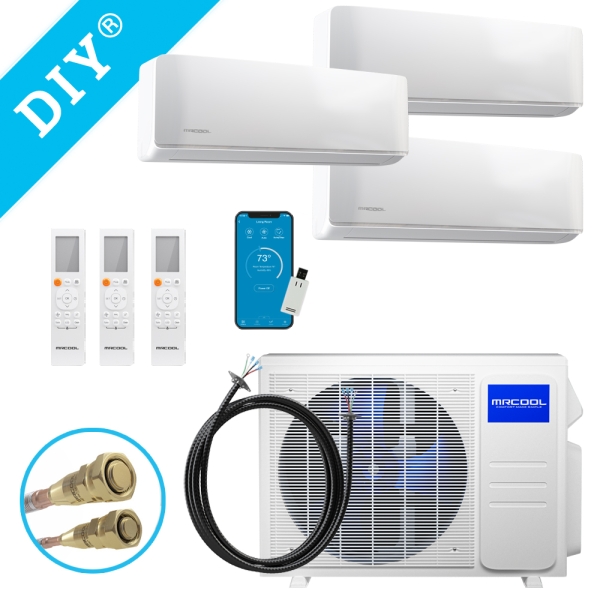

The 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split is easy to install and can heat or cool three areas at one time. The outdoor unit with a heating capacity of up to 27,000 BTU has a high efficiency SEER rating of 22. This is thanks in part to the variable speed DC inverter. The 12,000 BTU air handler can heat or cool between 500-600 square feet, while the two 9,000 BTU handlers can heat up to 375-450 square feet each.
Accessories
Description / Documents

The 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split is easy to install and can heat or cool three areas at one time. The outdoor unit with a heating capacity of up to 27,000 BTU has a high efficiency SEER rating of 22. This is thanks in part to the variable speed DC inverter. The 12,000 BTU air handler can heat or cool between 500-600 square feet, while the two 9,000 BTU handlers can heat up to 375-450 square feet each.

The four components of the 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split, the condenser and three air handlers, are all easily installed by any homeowner. This is possible thanks to the Quick Connect line set that comes pre charged with refrigerant so there's no need for a vacuum or other labor. The DIYPRO cable also makes installation easy by providing excellent mechanical protection without the use of an electrical conduit. None of the installation process requires any special training or tools, nor the cost of hiring an HVAC professional.

Controlling the 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split is as easy as the installation. Utilize the SmartHVAC app, the included remote, or your Amazon Alexa or Google Assistant.

Want to set it and forget it? The auto mode allows you to set a specific temperature and the MrCool DIY Ductless Mini Split will work automatically to maintain that desired temperature.

There's many more innovative features with the 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split. The timer function lets you limit the energy you use for only when you need it. Just set it for the designated period of time and the unit will shut off automatically once the time has expired. If a power outage occurs, the unit will automatically return to its previous settings after the power is restored to quickly heat or cool your space at the temperature you previously set prior to the outage.

Maintaining the MrCool DIY Ductless Mini Split is simple too! No special cleaning solutions are required. Just wipe down both the indoor and outdoor units with a damp or dry cloth. The air filters only need to be rinsed and left to dry.

You can have confidence in purchasing the 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split, especially with the 7-year compressor warranty and the 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM327HPW01C28
UPC 810080361683
AHRI Number 207339195
Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
Bundle Cooling Capacity 2 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12
Heat Pump Efficiency (HSPF) 10.3
Series DIY
Zones 3
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-09-HP-WMAH-230C25 Specifications:

Model DIY-09-HP-WMAH-230C25
UPC 810063869533
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-12-HP-WMAH-230C25 Specifications:

Model DIY-12-HP-WMAH-230C25
UPC 810063869540
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
