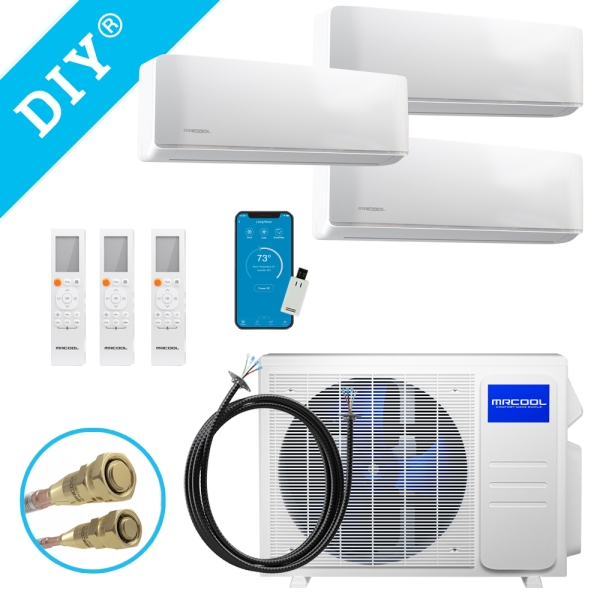

Three rooms in your home can be at the comfort level of your liking with the 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split. The unit can be easily installed thanks to the Quick Connect line set and DIYPRO cable. The Quick Connect line set comes pre-charged with R410-A refrigerant making it easy to install without the need for a vacuum. The DIYPRO cable gives excellent mechanical protection without the use of an electrical conduit. All of this requires no special tools, training, or the assistance of an HVAC technician.
Accessories
Description / Documents

Three rooms in your home can be at the comfort level of your liking with the 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split. The unit can be easily installed thanks to the Quick Connect line set and DIYPRO cable. The Quick Connect line set comes pre-charged with R410-A refrigerant making it easy to install without the need for a vacuum. The DIYPRO cable gives excellent mechanical protection without the use of an electrical conduit. All of this requires no special tools, training, or the assistance of an HVAC technician.

Each of the three 9,000 BTU air handlers included with the 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split can cool or heat a space between 375-450 square feet. The outdoor heat pump can heat up to a 27,000 BTU capacity with a highly efficient SEER rating of 22, thanks in part to the variable speed DC inverter.

Controlling the 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split is as easy as its installation. You can use the SmartHVAC app, the included remote, or your Amazon Alexa or Google Assistant.

The various modes allow you to take the temperature of your space into your own hands. Use Auto mode if you'd like to be hands off while keeping your space at your desired comfort level. With Auto mode, you can set it and forget it. The MrCool DIY Ductless Mini Split will work to maintain your set temperature consistently.

Another mode allows you to sleep while saving money and energy. The Sleep mode works for an 8 hour period. During each of the first two hours, the 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split will increase the temperature by 2 degrees F when cooling or decrease the temperature by 2 degrees F when heating. It will then maintain that new temperature for another 6 hours, using less energy and lowering utility costs.

Other great features of the MrCool DIY Ductless Mini Split include the timer which helps you save energy and only use the system when you need it. If there's an unforeseen power outage, when power is restored, the system will automatically begin heating or cooling your space back to your previously set temperature.

Maintaining the 4th Generation MrCool DIY Multi-Zone 27k BTU 3 Zone Ductless Mini Split is just as easy. When alerted to clean the air filters, just rinse with water and allow to dry. Just wipe down the indoor and outdoor units with a damp or dry cloth.

Purchases of the MrCool DIY Ductless Mini Split are protected by a 7-year compressor warranty and 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM327HPW00C28
UPC 818545028775
AHRI Number 207339195
Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
Bundle Cooling Capacity 2 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12
Heat Pump Efficiency (HSPF) 10.3
Series DIY
Zones 3
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-09-HP-WMAH-230C25 Specifications:

Model DIY-09-HP-WMAH-230C25
UPC 810063869533
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
