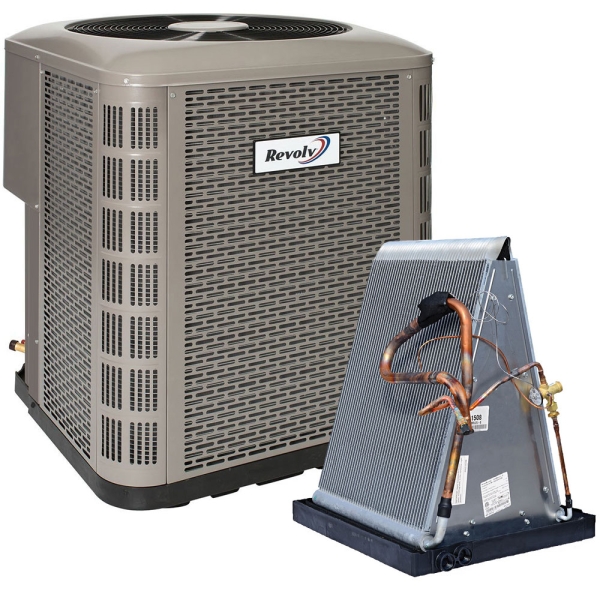

3.5 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System

Item
HA23775
Models RSA3ME4M1SN42, C84DAMX42U-B
Condition
New


Customize 3.5 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    3.5 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner Condenser
    Item: HA22691 Model: RSA3ME4M1SN42
    Qty: 1
    3.5 Ton Revolv Mobile Home Evaporator Coil - TXV
    Item: HA23753 Model: C84DAMX42U-B
    Qty: 1

    What's included

    DOCUMENTS


    Are you tired of the erratic temperature shifts that disturb the atmosphere of your mobile home? It's time to bid farewell to the aggravation and step into an era of reliability with the 3.5 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System. Boasting both AHRI certification and ETL listing, an impressive SEER2 rating of 14.3, and ready to manage spaces ranging from 1750 to 2100 square feet, you can revel in the relaxation afforded by uncompromising climate control that expands into every inch of your motorhome. This reliability gives you the freedom to unwind in any area that beckons without the need to scour around for comfortable spots.

    Designed with durability in mind, the 3.5 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System takes advantage of a carefully selected array of features that shield the internal hardware. The robust cabinet of this Revolv AC is crafted from galvanized steel and coated with a powder-paint finish, adding an aesthetic appeal while rounding out any sharp edges. This treatment can withstand a 950-hour salt spray test when conducted according to ASTM standard B117, promising resilience against scratches, chipping, fading, and corrosion over time. Maintenance is effortless and airflow is improved thanks to the incorporation of a removable top grille assembly, a permanently lubricated motor, and accessible compressor and controls. The composite base pan not only silences operational noise but also grants corrosion resistance within a sturdy yet lightweight package. This is reinforced with a powder-coated wire guard and mesh hail guard, giving you the knowledge that the internals are safeguarded from sports equipment, inclement weather conditions, and so much more.

    The internal components of this 3.5 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System follow a similarly impressive set of standards to those met by the cabinet. Safety features like a high-pressure switch consistently keep watch over system pressures, handling any growing issues without requiring your direct intervention. Meanwhile, the auto-reset function eliminates another common trigger for service calls. The full-service valves come pre-charged to work with up to 20 feet of tubing, providing easy access to the brass valves that decrease the amount of time needed for setup while saving you money. The integration of all-aluminum coils means even more corrosion resistance, extending the lifespan of this Revolv Condenser even further. With all these benefits available to you, why deal with discomfort any longer? Upgrade to this 3.5 Ton Revolv today and transform your mobile home into your personal haven.

    More Information
    Model RSA3ME4M1SN42,C84DAMX42U-B
    UPC 663132442300
    AHRI Number 208404145
    Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
    Bundle Cooling Capacity 3.5 Ton
    Bundle Cooling Efficiency (SEER2) 14.3
    EER2 11.7
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    RSA3ME4M1SN42 Specifications:

    More Information
    Model RSA3ME4M1SN42
    UPC 663132442300
    Product Height (in) 30.75
    Avg Coverage Area 1,750 - 2,100 Sq Ft
    Product Length (in) 35.5
    Compressor Single Stage
    Product Width (in) 35.5
    Cooling Capacity 3.5 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 40 amps
    Weight (lbs) 174.000000
    Refrigerant R-410a
    Cooling Efficiency (SEER2) 14.3
    Suction Line Size 7/8 inch
    System Application Type Mobile Home Systems
    Voltage 240
    Warranty 5 Year Parts, 10 Year Compressor
    Region Compatibility North

    C84DAMX42U-B Specifications:

    More Information
    Model C84DAMX42U-B
    UPC 663132446865
    Product Height (in) 18
    Air Flow Direction Vertical
    Product Length (in) 19.5
    Cooling Capacity 3.5 Ton
    Product Width (in) 18.13
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 23.300000
    Refrigerant R-410a
    Suction Line Size 7/8 inch
    Warranty 5 Year
