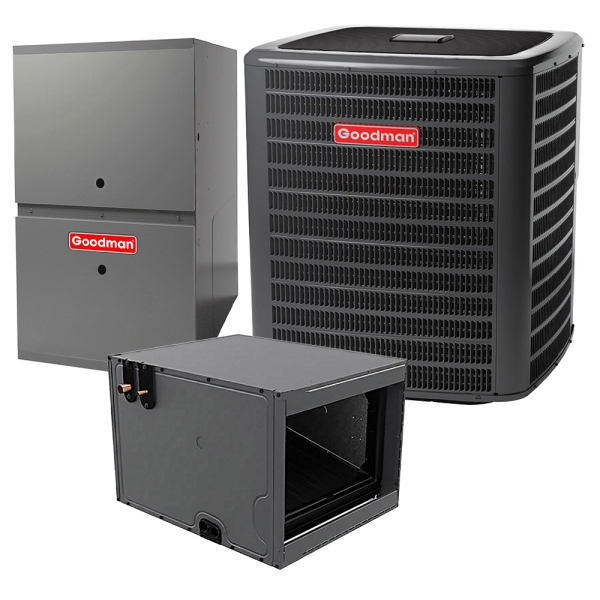

3.5 Ton 15.2 SEER2 80k BTU 80% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32
Shop All GOODMAN

Check your options without affecting your credit score.
Promotional APR options may also be available, subject to approval.

Accessories
Description / Documents
Year-round comfort doesn’t have to stay a fantasy for you and your family because outdoor temperatures leave your HVAC system struggling to keep up. With the 3.5 Ton 15.2 SEER2 80k BTU 80% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32, you can ensure uncompromising comfort in every inch of your living space. Gaining the support of both ETL listing and AHRI certification, the Goodman Central AC & Gas System highlights the validity of its safety and operational claims by passing intensive inspections from third-party agencies. Ensure comfort throughout your 1750 to 2100 square foot space in any season with a 3.5 Ton Goodman Split System.
Fighting off the hot temperatures of summer, the AC in the 3.5 Ton 15.2 SEER2 80k BTU 80% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32 gives your living space the brisk respite you crave in the heat. Equipped with a steel louver coil guard and impressively durable cabinet, the Goodman AC passes a 500-hour salt-spray test to prove its strength over time. Its removable top grille is compliant with UL 60335-2-40 requirements, adding another method of entry to the side panel to keep setup and servicing as simple as possible for any trained professional. Between the factory-installed filter drier, high-efficiency scroll compressor, and extended-life capacitors, the Goodman Split System has everything you need and more to guarantee crisp, cool conditions you want in summertime.
When outdoor temperatures plummet, the furnace in the 3.5 Ton 15.2 SEER2 80k BTU 80% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32 keeps your indoor space cozy. Boasting an internal lining of insulation, the heavy-gauge steel cabinet and its baked-enamel finish maintain cabinet air leakage rates at or under 2% for lasting efficiency. Outfitted with a two-speed induced draft blower, multi-speed ECM circulator motor, and two-speed gas valve, the Goodman Gas Furnace performs quietly to optimize your indoor ambiance beyond mere temperature regulation. Using a low constant fan speed to keep air moving in your home at all times, the Goodman Split System goes above and beyond to give you the toasty temperatures you want in the winter months.
Having a home heating and cooling solution that includes such a powerful AC condenser, furnace, and evaporator coil is a game changer, so why settle for discomfort from an antiquated system any longer? Obtain a 3.5 Ton 80k BTU Horizontal 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System utilizing R32 refrigerant today and guarantee the results you want in every season.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | GLXS5BA4210,CHPTA4830C3,GR9T800805CN |
|---|---|
| AHRI Number | 215380996 |
| Gas Furnace Efficiency | 80% |
| Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Bundle Cooling Capacity | 3.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 15.2 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| Region Compatibility | Nationwide |
GLXS5BA4210 Specifications:
| Model | GLXS5BA4210 |
|---|---|
| UPC | 663051735507 |
| AHRI Number | 215380889 |
| Product Height (in) | 36.5 |
| Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Product Length (in) | 35.5 |
| Compressor | Single Stage |
| Product Width (in) | 35.5 |
| Cooling Capacity | 3.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 250.000000 |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 15.2 |
| Suction Line Size | 1 1/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
CHPTA4830C3 Specifications:
| Model | CHPTA4830C3 |
|---|---|
| UPC | 663051693647 |
| Product Height (in) | 21 |
| Air Flow Direction | Horizontal |
| Product Length (in) | 21 |
| Cooling Capacity | 4 Ton |
| Product Width (in) | 30 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 78.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
GR9T800805CN Specifications:
| Model | GR9T800805CN |
|---|---|
| AHRI Number | 215358029 |
| Product Height (in) | 33.375 |
| Gas Furnace Efficiency | 80% |
| Product Length (in) | 28 |
| Product Width (in) | 21 |
| Air Flow Direction | Horizontal, Upflow |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 129.000000 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 4 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
