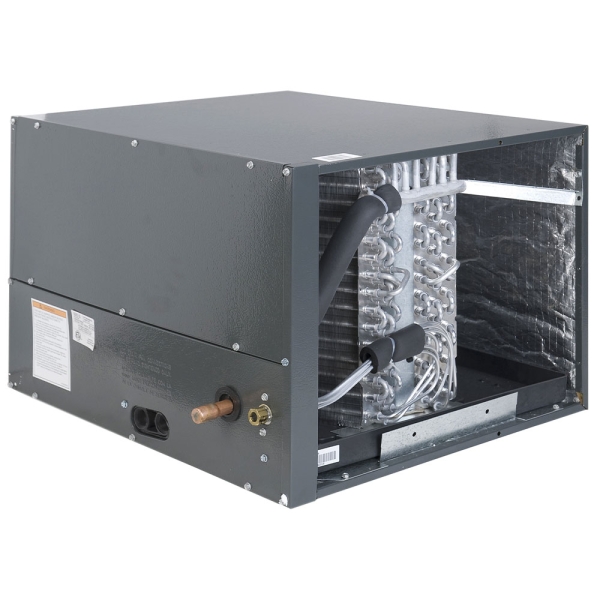

3 to 3.5 Ton Goodman Evaporator Coil - Horizontal - 21" Cabinet

Item: HA10489
Model: CHPF3642C6
Condition: New

3 to 3.5 Ton Goodman Evaporator Coil - Horizontal - 21" Cabinet Zoom

Photo Gallery

The Goodman CHPF36 3.0-3.5 Ton R-410A Horizontal Painted Cased Coil is a horizontal coil design built for maximum compatibility with Goodman brand air conditioner condensers and energy efficient heat pumps. The unit features an aluminum coil with corrugated fins and grooved tubes, an attractive Architectural Gray exterior coat, thermoplastic drain pan, AHRI certification, ETL listing, and economic price tag.

Availability: On backorder

$405.00
Ingram Financing


Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman
Up to 30% Off - Call for Info

What's Included

What customers are saying...



Overview

The Goodman CHPF36 3.0-3.5 Ton R-410A Horizontal Painted Cased Coil is a horizontal coil design built for maximum compatibility with Goodman brand air conditioner condensers and energy efficient heat pumps. The unit features an aluminum coil with corrugated fins and grooved tubes, an attractive Architectural Gray exterior coat, thermoplastic drain pan, AHRI certification, ETL listing, and economic price tag.
Goodman HA10489

Manufacturer Highlights

The Goodman® brand CHPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model CHPF3642C6
UPC 663051451780
Air Flow Direction Horizontal
Cooling Capacity 3 Ton, 3.5 Ton
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height (in) 21
Product Length (in) 21.125
Product Width (in) 26
Suction Line Size 3/4 inch
Warranty 10 Year Parts
Weight (lbs) 63.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Is this compatible with my existing Lennox G40UH-48B-090X-15 Gas Furnace?
Will this evap coil replace the one in my system?
System is a Goodman Model A42-20. Serial 9612011966. Using R22.
For this evaporator unit, ITEM: HA10489 MODEL: CHPF3642C6.
The width is 26 in, but what width mean? is width the length from input to out put air-flow?
