This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

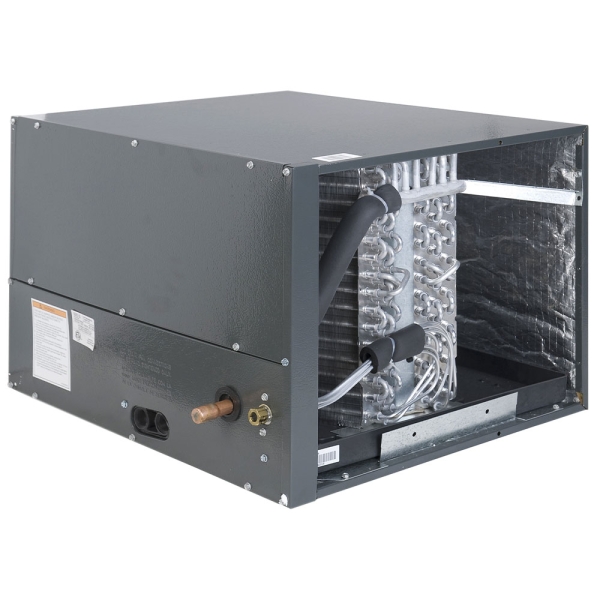

3 to 3.5 Ton Goodman Evaporator Coil - Horizontal - 24.5" Cabinet

Item: HA10490
Model: CHPF3642D6
Condition: New

3 to 3.5 Ton Goodman Evaporator Coil - Horizontal - 24.5" Cabinet Zoom

Photo Gallery

A horizontal cased coil like the Goodman CHPF36 3.0-3.5 Ton R-410A Horizontal Painted Cased Coil with 24.5 inch Cabinet could be the unit you need to take your central heating and air system to the next level. It features an aluminum coil with grooved tubing and corrugated fins, thermoplastic drain pan, and Architectural Gray paint job. It is AHRI certified and ETL listed.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

A horizontal cased coil like the Goodman CHPF36 3.0-3.5 Ton R-410A Horizontal Painted Cased Coil with 24.5 inch Cabinet could be the unit you need to take your central heating and air system to the next level. It features an aluminum coil with grooved tubing and corrugated fins, thermoplastic drain pan, and Architectural Gray paint job. It is AHRI certified and ETL listed.
Goodman HA10490

Manufacturer Highlights

The Goodman® brand CHPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model CHPF3642D6
UPC 663051451797
Air Flow Direction Horizontal
Cooling Capacity 3 Ton, 3.5 Ton
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height (in) 24.5
Product Length (in) 21.125
Product Width (in) 26
Suction Line Size 7/8 inch
Warranty 10 Year Parts
Weight (lbs) 66.0000
