This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

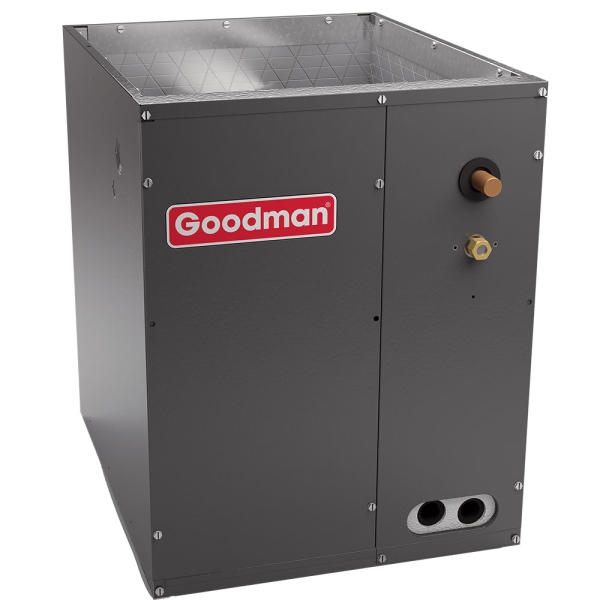

3 to 3.5 Ton Goodman Evaporator Coil - Vertical - 21" Cabinet

Item: HA10472
Model: CAPF3642C6
Condition: New
A reliable coil can make a real difference in the energy efficiency and operating performance of your central heating, ventilating, and air conditioning system. The Goodman CAPF36 3.0-3.5 Ton Up/Down Cased Coil with 24.5 inch Cabinet might be exactly what your home needs. It features a thermoplastic drain pan, an aluminum coil, grooved tube and corrugated fin construction, and, of course, is both ETL listed and AHRI certified.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

A reliable coil can make a real difference in the energy efficiency and operating performance of your central heating, ventilating, and air conditioning system. The Goodman CAPF36 3.0-3.5 Ton Up/Down Cased Coil with 24.5 inch Cabinet might be exactly what your home needs. It features a thermoplastic drain pan, an aluminum coil, grooved tube and corrugated fin construction, and, of course, is both ETL listed and AHRI certified.
Goodman HA10472

Manufacturer Highlights

The Goodman® brand CAPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model CAPF3642C6
UPC 663051446939
Air Flow Direction Vertical
Cooling Capacity 3 Ton, 3.5 Ton
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height (in) 22
Product Length (in) 21
Product Width (in) 21
Suction Line Size 3/4 inch
Warranty 10 Year Parts
Weight (lbs) 49.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
I have a Goodman CAPF3030A6BA coil that has a leak and I need to replace. It has a set up just like this one. Since this is out of stock, can you recommend one that will work that I can order
jest need to reconfirm that - ITEM: HA10472

3 to 3.5 Ton Goodman Evaporator Coil - Vertical - 21" Cabinet
ITEM: HA10472 MODEL: CAPF3642C6 CONDITION: NEW

Will be compatible with the out of stock
3 Ton Goodman Evaporator Coil - Vertical - 21" Cabinet
ITEM: HA10470 MODEL: CAPF3636C6
