This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

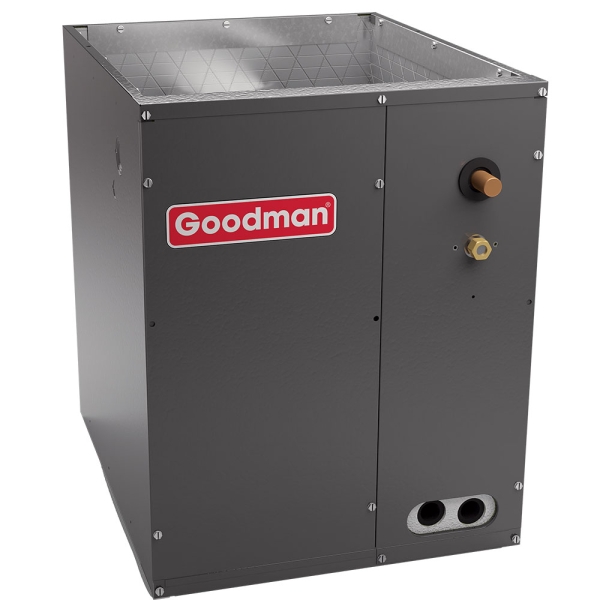

3 to 3.5 Ton Goodman Evaporator Coil - Vertical - 24.5" Cabinet

Item: HA10473
Model: CAPF3642D6
Condition: New
Want a great coil? The Goodman CAPF36 3.0-3.5 Ton Up/Down Cased Coil with 24.5 inch Cabinet is a really great coil. This indoor coil is designed to be compatible with appropriately sized Goodman brand heat pumps and air conditioners. The coil itself is an aluminum design with corrugated fins and grooved tubing. The thermoplastic drain pan resists long term corrosion, the unit is economically priced, and the warranty protection exceeds expectations.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Want a great coil? The Goodman CAPF36 3.0-3.5 Ton Up/Down Cased Coil with 24.5 inch Cabinet is a really great coil. This indoor coil is designed to be compatible with appropriately sized Goodman brand heat pumps and air conditioners. The coil itself is an aluminum design with corrugated fins and grooved tubing. The thermoplastic drain pan resists long term corrosion, the unit is economically priced, and the warranty protection exceeds expectations.
Goodman HA10473

Manufacturer Highlights

The Goodman® brand CAPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model CAPF3642D6
UPC 663051446946
Air Flow Direction Vertical
Cooling Capacity 3 Ton, 3.5 Ton
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height (in) 22
Product Length (in) 21
Product Width (in) 24.5
Suction Line Size 3/4 inch
Warranty 10 Year Parts
Weight (lbs) 52.0000
