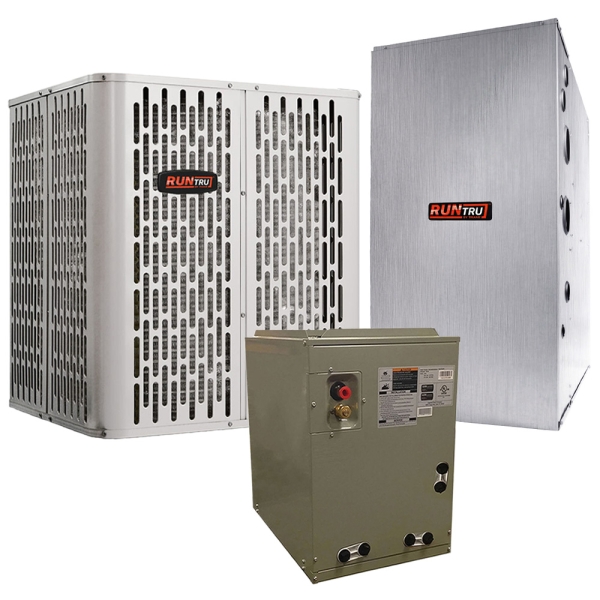

3 Ton 14.3 SEER2 60K BTU 96% AFUE Multi Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Upflow/Horizontal
Item
HA23727
Models A4AC5036D1000A, A951X060BU4S, 4MXCB004AC6
Condition
New
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Get everything right and save time
Contact an expert now.
60K BTU 95% AFUE Multi Speed Trane RunTru Gas Furnace - Upflow - 17.5" CabinetItem: HA21212 Model: A951X060BU4S
Qty: 1
Item: HA21589 Model: 4MXCB004AC6
Qty: 1
Are you feeling drained from the never-ending battle with your out-of-date HVAC system? It's time to shift your focus towards the promising future that lies ahead with the 3 Ton 14.3 SEER2 60K BTU 96% AFUE Multi Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Upflow/Horizontal. Every element of this package boasts at least one notable compliance, accumulating AHRI certification, UL 1995 certification, and ETL listing. These validations then combine with an overall SEER2 rating of 14.3 and an outstanding 96% fuel efficiency rating, you can rest assured that every performance claim has undergone thorough testing. This verification guarantees that your 1500 to 1800 square foot space will indeed enjoy the advantages that reliable climate control can bring to your daily quality of life.
Constructed to consistently function at peak efficiency, the heat pump utilized in the 3 Ton 14.3 SEER2 60K BTU 96% AFUE Multi Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Upflow/Horizontal is equipped with a variety of carefully selected features that not only safeguard the inner workings but also supply unwavering results. Even in oppressive temperatures up to 115 degrees Fahrenheit, this Trane Split System doesn't struggle thanks to the sturdy heavy-gauge galvanized steel cabinet coated with a weather-resistant powder paint finish. Enhancing this durability further, all panels have the resilience to pass a 1000-hour salt spray test, promising impressive performance over time. While the default configuration of this Trane Heat Pump cools your space to a comfortable 55 degrees Fahrenheit, a spread of optional ambient kits gives you with the capability to lower your home's temperature all the way down to a brisk 20 degrees Fahrenheit, allowing you to create your desired ambiance.
The furnace integrated into the 3 Ton 14.3 SEER2 60K BTU 96% AFUE Multi Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Upflow/Horizontal follows suit with an equally impressive dedication to quality. Engineered with an emphasis on efficiency, this Trane Gas Furnace works to reduce your utility bills through an airflow design that decreases electrical energy consumption. Enclosed within a compact 34-inch shell, this 60K BTU Trane is straightforward to install even in tight spaces like closets or basement crawl spaces. With an air leak rate of 1.4% or less when tested in accordance with ASHRAE standard 193, you can finally breathe easy knowing that you'll save both time and cost every step of the way.
With all these benefits and more, why delay your decision any longer? Elevate your home's comfort with this Trane Split System and transform your residence into your personal sanctuary.
60K BTU 95% AFUE Multi Speed Trane RunTru Gas Furnace - Upflow - 17.5" Cabinet
Keep your home warm on cold nights with a 60K BTU 96% AFUE Multi Speed Trane RunTru Gas Furnace - Upflow/Horizontal - 17.5inch Cabinet. This appliance can quickly send warmed air throughout your space and can be trusted for its quality construction, reliable dependability, and cost-saving efficiency.
This particular model of Trane RunTru gas furnace has a 60,000 BTU capacity, a 3-4 ton nominal air flow, and a 96% annual fuel utilization efficiency (AFUE). These stats all show that this system provides affordable, reliable service whenever you need it.
The multiport, inshot burners within the 60K BTU 96% AFUE Multi Speed Trane RunTru Gas Furnace - Upflow/Horizontal - 17.5inch Cabinet work quietly and reliably to reduce unnecessary background noise and keep your home comfortable for many years. This Trane RunTru gas furnace arrives ready to install for a natural gas system, and you can easily convert the appliance to liquified petroleum (LP) gas with a conversion kit.
Flexibility is key for installation, and this system can be installed in one of three configurations: upflow, horizontal left, or horizontal right.
Easily fit this gas furnace into a tight space like a closet or basement. The dimensions of this specific model, including the exterior cabinet, are 34 high, 17.5 wide and 28.75 deep. Since these measurements are industry standard, this unit is compatible with larger, high-efficiency coils and other common accessories.
Each component of this single-stage, non-condensing 60K BTU 96% AFUE Multi Speed Trane RunTru Gas Furnace - Upflow/Horizontal - 17.5inch Cabinet is designed to meet your needs.
Heat Exchangers: Both primary and secondary heat exchangers in this gas furnace are made of cycle tested, heavy gauge tubular stainless steel that quickly transfers heat to warm the air. Stainless steel is a more durable and corrosive-resistant material than aluminized steel used in some other furnaces.
ECM Motor: Trane RunTru gas furnaces operate with an efficient constant torque blower motor (ECM) that has nine speeds and produces enough airflow for most heating and cooling requirements. This motor can easily switch speeds on demand to meet your home's needs, depending on your thermostat's settings.
Vortica II Blower: The low energy blower in Trane RunTru gas furnaces is designed exclusively for the appliance and improves airflow efficiency in addition to being durable and easy to remove and clean. The blower ensures gas fumes are discharged outdoors so the air you breathe is safe and fresh.
Hot Surface Ignition System: Instead of a traditional pilot light, Trane RunTru gas furnaces use a silicon nitride hot surface ignition system to light the main burners. This more modern ignition system is a safer option that eliminates the chore of checking and lighting the pilot each new season.
With its Integrated System Control, you can control every aspect of your Trane RunTru gas furnace. This control system is a solid state device that continuously monitors for the presence of flame when the system is in a heating mode. The operational program for this Integrated System Control allows you to manage the furnace limit sensors, blowers, and gas valve in addition to showing self diagnostics that make the unit easier to service.
For yet another level of safety, this gas furnace has a dual solenoid combination gas valve and regulator.
A heavy gauge steel wrap-around cabinet that has a durable, attractive baked-on enamel finish to house and protect this Trane RunTru gas furnace. In any installation configuration, the cabinet provides two venting options. Note that the cabinet does not feature knockouts.
The manufacturer certified that this gas furnace leaks 1% or less when all the inlets, outlet, and drains are sealed, proving its energy efficient operation and earning it an Energy Star certification. The American Gas Association certified this 60K BTU 96% AFUE Multi Speed Trane RunTru Gas Furnace - Upflow/Horizontal - 17.5inch Cabinet for both natural and LP gas, and the limit setting and rating data were approved using the American National Standards Institute's (ANSI) standards.
| Model | A4AC5036D1000,A951X060BU4S,4MXCB004AC6 |
|---|---|
| UPC | 647535857329 |
| AHRI Number | 210588214 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.3 |
| EER2 | 12 |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
A4AC5036D1000A Specifications:
| Model | A4AC5036D1000A |
|---|---|
| UPC | 647535857329 |
| Product Height (in) | 37 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 34 |
| Compressor | Single Stage |
| Product Width (in) | 34 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 246.000000 |
| Refrigerant | R-410a |
| Cooling Efficiency (SEER2) | 15.2 |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, 10 Year Compressor |
| Region Compatibility | Nationwide |
A951X060BU4S Specifications:
| Model | A951X060BU4S |
|---|---|
| AHRI Number | 204606331 |
| Product Height (in) | 34 |
| Gas Furnace Efficiency | 95% |
| Product Length (in) | 28.75 |
| Configuration | Floor Mounted |
| Product Width (in) | 17.5 |
| Air Flow Direction | Upflow |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Blower Motor | Multi Speed |
| Cooling Compatibility (up to) | 4 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 130.000000 |
| Primary Heating Capacity | 48,000 - 60,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches |
| Voltage | 120 |
| Warranty | 5 Year Parts, 20 Year Heat Exchanger |
4MXCB004AC6 Specifications:
| Model | 4MXCB004AC6 |
|---|---|
| UPC | 762530151903 |
| Product Height (in) | 20 |
| Air Flow Direction | Horizontal, Vertical |
| Product Length (in) | 21 |
| Cooling Capacity | 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton |
| Product Width (in) | 17.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 55.000000 |
| Refrigerant | R-410a |
| Suction Line Size | 3/4 inch |
| Warranty | 5 Year Parts, 10 Year Evaporator Coil |
