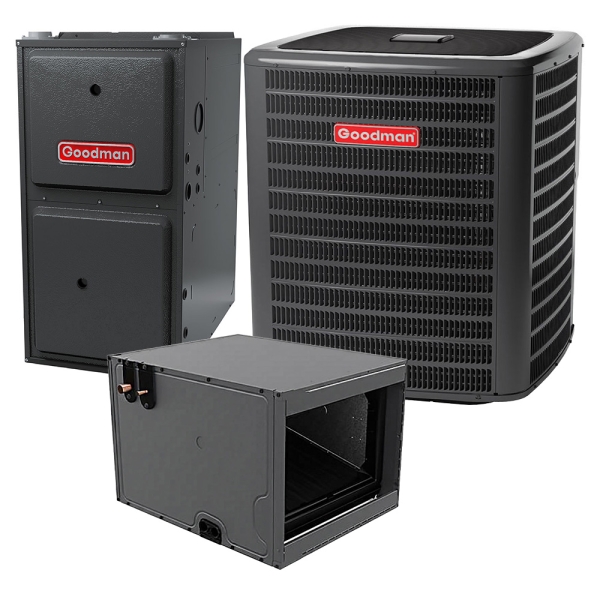

3 Ton 14.5 SEER2 80k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32
Shop All GOODMAN

Check your options without affecting your credit score.
Promotional APR options may also be available, subject to approval.

Accessories
Description / Documents
Regions with drastically varied temperatures through the seasons can be difficult for a single HVAC system to handle, especially when the hardware is too old for the current-day climate. When you’re ready to make a change for the better, bring in the big guns with a 3 Ton 14.5 SEER2 80k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32. Thanks to the backing of AHRI certification and ETL listing, the Goodman Central AC & Gas System highlights the integrity of its safe, dependable operation claims by passing the exhaustive scrutiny of third-party evaluations. Enjoy every room in 1500 to 1800 square foot space all year long with an upgrade to a 3 Ton Goodman Split System.
During the sweltering heat of summertime, the AC in the 3 Ton 14.5 SEER2 80k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32 keeps your living space cool, calm, and collected. Using a steel louver coil guard to bolster the innate resilience of the cabinet’s construction, the Goodman AC proves its durability by earning 500-hour salt-spray approval. Between side panel access and the removable top grille that’s compliant with UL 60335-2-40, maintenance and setup are a breeze for any qualified technician you hire to handle the task. Thanks to hardware like a filter drier, extended-life capacitors, and energy-efficient scroll compressor, you can relax knowing the Goodman Split System goes the distance to keep your home crisp and comfortable through the dog days of summer.
Winter’s chill won’t leave you shivering with the power of the furnace in the 3 Ton 14.5 SEER2 80k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Horizontal - R32 in your court. Working equally well in direct and non-direct vent applications, the Goodman Furnace and its left and right side hook-ups for gas and electrical service offers the flexibility needed to suit almost any home layout. With both the heat exchanger and blower sections of the heavy-gauge steel cabinet fully lined with insulation, the Goodman Gas Furnace maintains efficiency with a cabinet air leakage rate at or under 2%. Boasting intelligently chosen parts like a multi-speed ECM blower motor, two-stage gas valve, and two heat exchangers, the Goodman Split System has everything it needs to quietly and efficiently supply your home with toasty temperatures you want all winter long.
Choosing a bundle that includes such a powerful AC condenser, furnace, and evaporator coil is a game changer, so why settle for anything less? Obtain a 3 Ton 80k BTU Horizontal 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System running on R32 refrigerant today and let your loved ones enjoy total control over their indoor ambiance in any season for years to come.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | GLXS4BA3610,CHPTA3630B3,GR9T960803BN |
|---|---|
| AHRI Number | 214859733 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.5 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| Region Compatibility | Nationwide |
GLXS4BA3610 Specifications:
| Model | GLXS4BA3610 |
|---|---|
| UPC | 663051691650 |
| Product Height (in) | 39.5 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 29 |
| Compressor | Single Stage |
| Product Width (in) | 29 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 133.000000 |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 14.5 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
CHPTA3630B3 Specifications:
| Model | CHPTA3630B3 |
|---|---|
| UPC | 663051688520 |
| Product Height (in) | 17.5 |
| Air Flow Direction | Horizontal |
| Product Length (in) | 21 |
| Cooling Capacity | 3 Ton |
| Product Width (in) | 30 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 62.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
GR9T960803BN Specifications:
| Model | GR9T960803BN |
|---|---|
| AHRI Number | 215225027 |
| Product Height (in) | 34.5 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 28.75 |
| Product Width (in) | 17.5 |
| Air Flow Direction | Horizontal, Upflow |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 118.000000 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
