3 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System

Item
HA23784
Models RSH3ME4M1SP36, C84DAMX36U-B
Condition
New


Customize 3 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

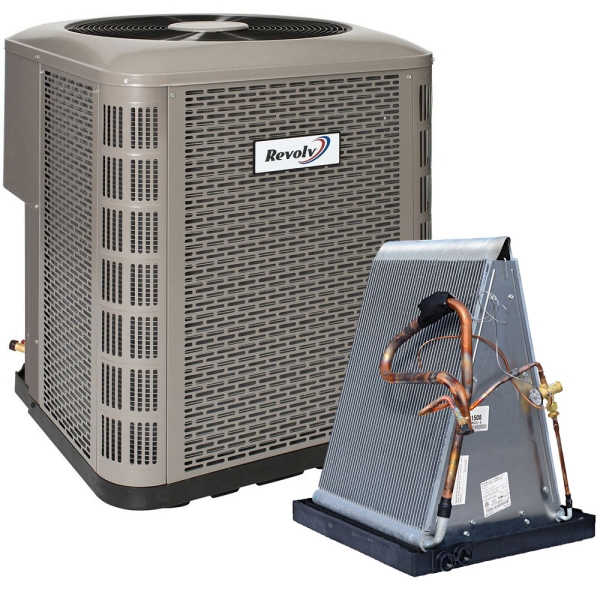

    This Bundle Includes

    3 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump Condenser
    Item: HA22700 Model: RSH3ME4M1SP36
    Qty: 1
    3 Ton Revolv Mobile Home Evaporator Coil - TXV
    Item: HA23510 Model: C84DAMX36U-B
    Qty: 1

    Affordable HVAC Installation


    What's included

    DOCUMENTS


    Are you weary from the unpredictable temperature swings that disrupt the ambiance of your mobile home? It's time to say adieu to these aggravations and set your sights on the future with the 3 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System. Garnering both AHRI certification and ETL listing, an impressive SEER2 rating of 14, and having the strength to handle areas spanning from 1500 to 1800 square feet, this Revolv Heat Pump bestows upon your space unparalleled climate control that spreads into every inch of your motorhome. This unwavering reliability affords you the flexibility to de-stress in any room within your home, removing the need to search for comfortable zones.

    Designed for durability, the 3 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System employs a carefully chosen array of features that safeguard the internal components. The sturdy cabinet of this Revolv Heat Pump is crafted from galvanized steel and finished with a powder-paint coating, adding aesthetic charm while smoothing out any sharp edges. This treatment withstands a demanding 950-hour salt spray test conducted in accordance with ASTM standard B117, assuring resilience against scratches, chipping, fading, and corrosion over the years. Maintenance is streamlined while airflow is improved in no small part due to the integration of a removable top grille assembly and easily accessible compressor and controls. The composite base pan not only suppresses operational noise but also enhances corrosion resistance in a robust yet lightweight frame. This is further fortified by a powder-coated wire guard and mesh hail guard, bringing confidence with the knowledge that the internals remain safeguarded from sports equipment, inclement weather conditions, and more.

    The internal hardware of this 3 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System mirrors the remarkable performance of the external components. Safety features like a high-pressure switch constantly keeps an eye on the system pressures, promptly addressing any potential issues without needing your direct involvement while the auto-reset function takes away yet another typical trigger of service calls. The brass valves are easily accessible and come pre-charged to work with up to 20 feet of tubing, saving you both time and money during setup and maintenance. The incorporation of all-aluminum coils enriches this Revolv Heat Pump with even more corrosion resistance, further bolstering the longevity. With all these benefits at your beck and call, why continue to tolerate inconsistent results any longer? Upgrade to this 3 Ton Revolv today and transform your mobile home into your personal sanctuary.

    More Information
    Model RSH3ME4M1SP36,C84DAMX36U-B
    UPC 663132453023
    AHRI Number 209851998
    Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
    Bundle Cooling Capacity 3 Ton
    Bundle Cooling Efficiency (SEER2) 14.3
    EER2 11
    Heat Pump Efficiency (HSPF2) 8.5
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    RSH3ME4M1SP36 Specifications:

    More Information
    Model RSH3ME4M1SP36
    UPC 663132453023
    Product Height (in) 39
    Avg Coverage Area 1,500 - 1,800 Sq Ft
    Product Length (in) 30.75
    Compressor Single Stage
    Product Width (in) 30.75
    Cooling Capacity 3 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 30 amps
    Weight (lbs) 165.000000
    Refrigerant R-410a
    Cooling Efficiency (SEER2) 14.3
    Suction Line Size 3/4 inch
    System Application Type Mobile Home Systems
    Voltage 240
    Warranty 5 Year Parts, 10 Year Compressor
    Region Compatibility Nationwide

    C84DAMX36U-B Specifications:

    More Information
    Model C84DAMX36U-B
    Product Height (in) 18
    Air Flow Direction Vertical
    Product Length (in) 19.5
    Cooling Capacity 3 Ton
    Product Width (in) 18
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 35.000000
    Suction Line Size 3/4 inch
    Warranty 5 Year
