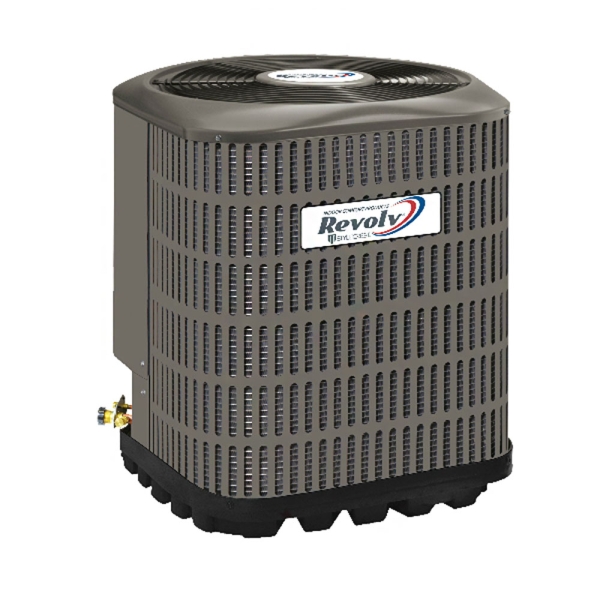

Name: 3 Ton 14 SEER Revolv Mobile Home Heat Pump Condenser
Brand: Revolv
SKU: HA13153
Price: 2611.82 USD
Availability: OutOfStock

✓ Link Copied!

Shop All REVOLV

Item:

HA13153

Model:

RT4BE-036KA

Condition:

New

3-ton-14-seer-revolv-mobile-home-heat-pump-condenser-ha13153-01.3548

This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

Recommended Alternative:

Brand MrCool

9k BTU 22.8 SEER MrCool Olympus ES Ductless Heat Pump Condenser

$514.32

Out of stock

Let me know when it’s back in stock:

This heat pump condenser from Revolv uses microchannel coils to not only provide you with a high quality HVAC unit, but protect your unit against unwanted rust build up. The unit is made with sturdy galvanized steel, which is lighter than steel, allowing this unit to be moved as needed. It is factory-supplied with an outdoor thermostat for monitoring the temperature level that can easily be installed upon arrival to your mobile home.

Description / Documents

Additional Documents

From the Manufacturer

RT4BE Brochure

RT4BE Brochure

RT4BE Specification Manual

RT4BE Warranty

Customer Reviews / Q&A

Specifications

System Overview

Model	RT4BE-036KA
UPC	663132329793
Product Height (in)	45
Avg Coverage Area	1,500 - 1,800 Sq Ft
Product Length (in)	30.75
Compressor	Single Stage
Product Width (in)	30.75
Cooling Capacity	3 Ton
Electrical Phase	1-Phase
Heat Pump Efficiency (HSPF)	8.5
Line Set Connection Type	Sweat
Liquid Line Size	3/8 inch
Max Overcurrent Protection	30 amps
Weight (lbs)	158.000000
Primary Heating Capacity	35,001 - 40,000 BTU
Refrigerant	R-410a
Cooling Efficiency	14 SEER
Suction Line Size	7/8 inch
System Application Type	Mobile Home Systems
Voltage	240
Warranty	10 Year Parts
Region Compatibility	Nationwide
