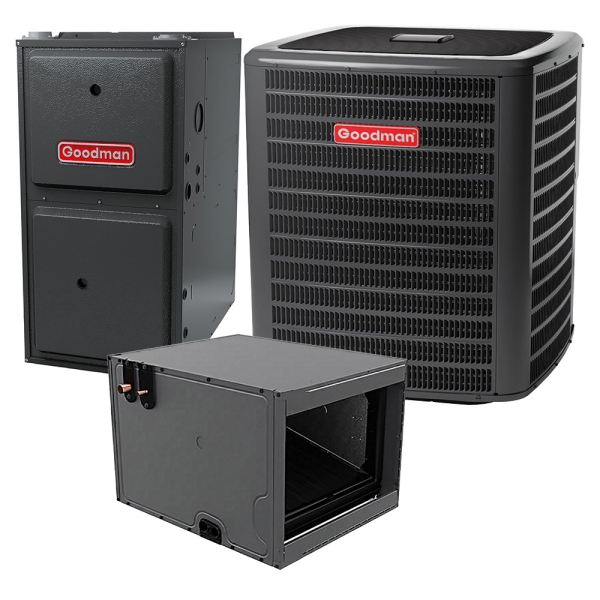

3 Ton 15.2 SEER2 100k BTU 96% AFUE Variable Speed Goodman Central Heat Pump & Gas Furnace Split System - Horizontal - R32
Shop All GOODMAN
Item:
HA27819
Model:
GLZS5BA3610,CHPTA4230C3,GRVT961005CN
Condition:
New

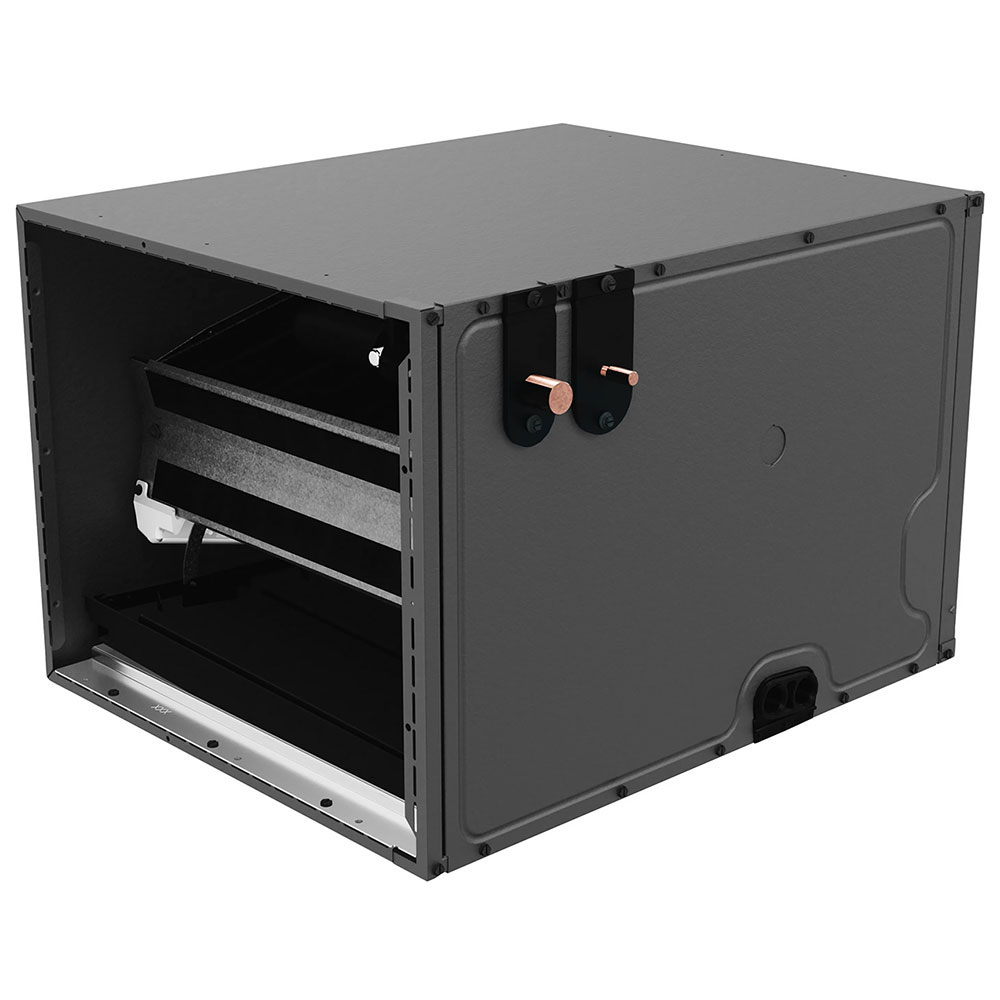

3.5 Ton Goodman Evaporator Coil - Horizontal - 21" Cabinet - R-32
Item: HA25209Model: CHPTA4230C3
Qty: 1

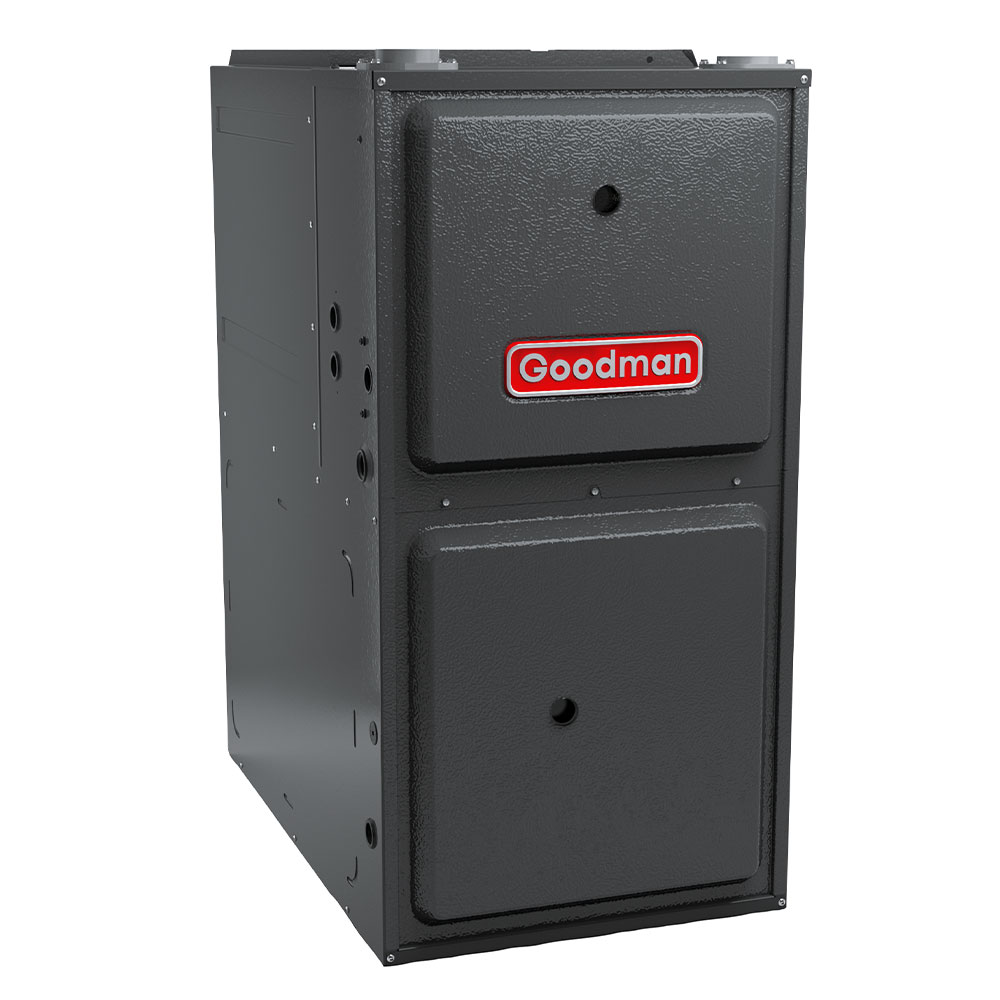

100k BTU 96% AFUE Variable Speed Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet
Item: HA27317Model: GRVT961005CN
Qty: 1
Accessories
Description / Documents
Additional Documents
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | GLZS5BA3610,CHPTA4230C3,GRVT961005CN |
|---|---|
| AHRI Number | 216616753 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency (SEER2) | 15.2 |
| Heat Pump Efficiency (HSPF2) | 7.8 |
| Region Compatibility | Nationwide |

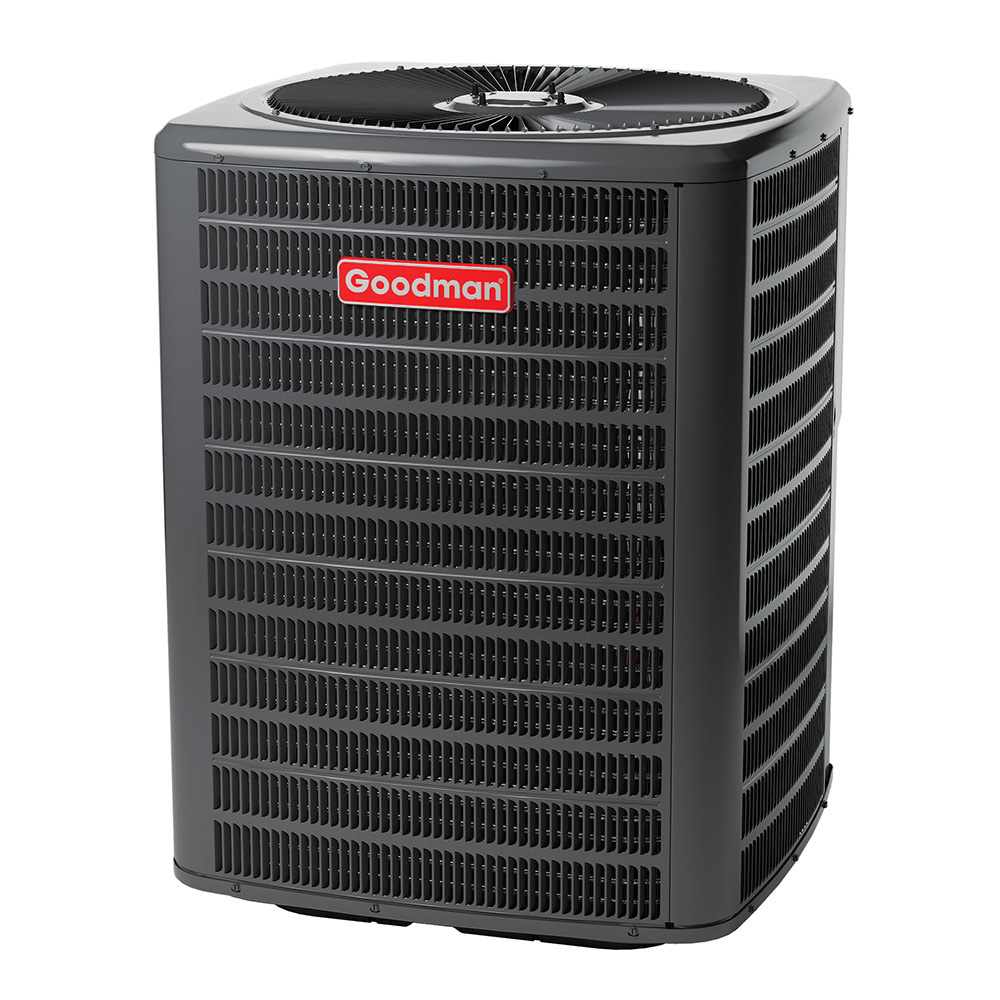

GLZS5BA3610 Specifications:
| Model | GLZS5BA3610 |
|---|---|
| UPC | 663051737662 |
| AHRI Number | 215381162 |
| Product Height (in) | 39.5 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 35.5 |
| Compressor | Single Stage |
| Product Width (in) | 35.5 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 7.8 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 222.000000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 15.2 |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
CHPTA4230C3 Specifications:
| Model | CHPTA4230C3 |
|---|---|
| UPC | 663051688544 |
| Product Height (in) | 21 |
| Air Flow Direction | Horizontal |
| Product Length (in) | 21 |
| Cooling Capacity | 3.5 Ton |
| Product Width (in) | 30 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 70.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
GRVT961005CN Specifications:
| Model | GRVT961005CN |
|---|---|
| UPC | 663051702905 |
| AHRI Number | 216619914 |
| Product Height (in) | 34.5 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 29 |
| Configuration | Floor Mounted |
| Product Width (in) | 21 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Blower Motor | Variable Speed |
| Cooling Compatibility (up to) | 3.5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Two Stage |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 143.000000 |
| Primary Heating Capacity | 95,001 - 100,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
