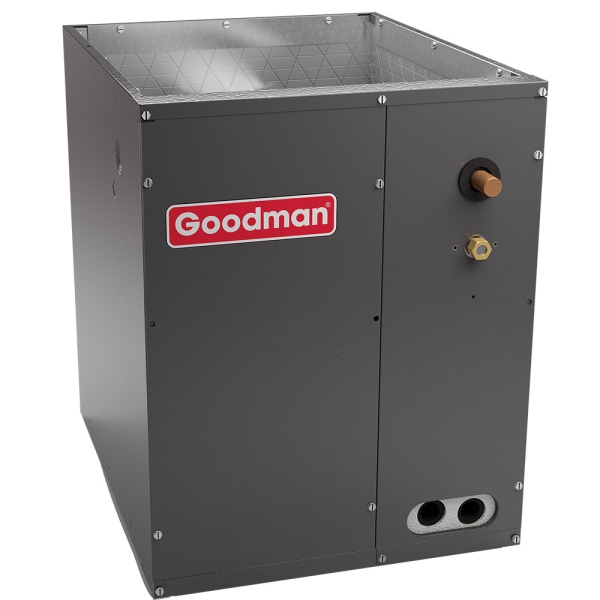

3 Ton Goodman Evaporator Coil - Vertical - 24.5" Cabinet

Item: HA10471
Model: CAPF3636D6
Condition: New

3 Ton Goodman Evaporator Coil - Vertical - 24.5" Cabinet Zoom

Photo Gallery

Need a great coil for your air conditioner or energy efficient heat pump? Take a gander at the Goodman CAPF36 3.0 Ton. This is an up/down cased coil with a 24.5 inch cabinet that is both AHRI certified and ETL listed. It features grooved tubes, corrugated fins, and all-aluminum coil construction. It comes standard with a thermoplastic drain for real corrosion resistance, and is painted an eye-pleasing Architectural Gray.

Availability: In stock

Was: $391.00 To see product price, add this item to your cart. You can always remove it later.
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

Need a great coil for your air conditioner or energy efficient heat pump? Take a gander at the Goodman CAPF36 3.0 Ton. This is an up/down cased coil with a 24.5 inch cabinet that is both AHRI certified and ETL listed. It features grooved tubes, corrugated fins, and all-aluminum coil construction. It comes standard with a thermoplastic drain for real corrosion resistance, and is painted an eye-pleasing Architectural Gray.
Goodman HA10471

Manufacturer Highlights

The Goodman® brand CAPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model CAPF3636D6
UPC 663051446922
Air Flow Direction Vertical
Cooling Capacity 3 Ton
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height 22
Product Length 21
Product Width 24.5
Suction Line Size 3/4 inch
Warranty 10 Year Parts
Weight 51.0000
