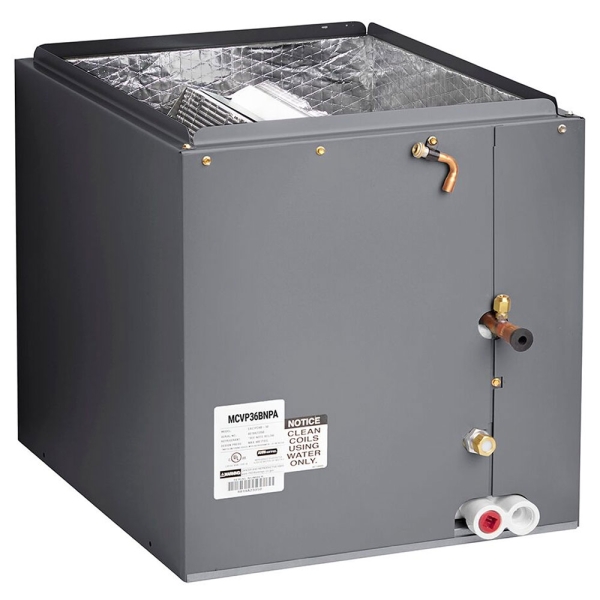

3 Ton MrCool Signature Evaporator Coil - Vertical - 17.5" Cabinet

Item: HA18505
Model: MCVP36BNPA
Condition: New

3 Ton MrCool Signature Evaporator Coil - Vertical - 17.5" Cabinet Zoom

Photo Gallery

The 3 Ton MrCool Evaporator Coil - Vertical - 17.5 inch Cabinet is the ideal choice for budget-conscious homeowners with vertical air handlers or furnaces. It's quality-designed to effectively cool your air with high efficiency, interlocking door assemblies, and tight line seal to minimize any air leakage.

Availability: In stock

$514.00
Ingram Financing


Ships Within 1-2 Business Days

Up To $500 Cash Back

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

MrCool

Contractors

Up to 30% Off - Call for Info

Call 270-575-9595 Now

What's Included

What customers are saying...



Overview

The 3 Ton MrCool Evaporator Coil - Vertical - 17.5 inch Cabinet is the ideal choice for budget-conscious homeowners with vertical air handlers or furnaces. It's quality-designed to effectively cool your air with high efficiency, interlocking door assemblies, and tight line seal to minimize any air leakage.

Not only does this make for a better cooling experience for you and your family, but it also saves you money every month on your energy bill. How? Because your system isn't consuming extra energy to make up for the lost air. Additionally, this evaporator coil comes with a parts warranty from MrCool, which means that you can keep your coil running in tip-top shape, but the expense from repairs won't be on your shoulders.

Many homeowners find themselves with a nagging worry that their HVAC system may malfunction and cause dangerous water damage, and with good reason. Water damage can wreak havoc on your home. This evaporator coil is built to protect your family's home from any moisture or water leaks, thanks to the MrCool high-quality drain pan with very low water retention. The drain pan captures all moisture dripping from the coil before it can escape, damaging your home. Its antimicrobial properties also ensure that harmful bacteria can't grow in the moisture-rich environment and eventually cause your system to fail.

Installing the 3 Ton MrCool Evaporator Coil - Vertical - 17.5 inch Cabinet is simple and quick. There are two dual drains on the front of the coil for easy installation of drain lines and utility connections around the condenser or heat pump. Ultimately, this evaporator coil is perfect for homeowners who value simplicity and affordability but don't want to sacrifice safety and efficiency.

MrCool HA18505

Manufacturer Highlights

This is a brand new 3 ton, R410A & R22 refrigerant, Upflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.

Standard Features

  • Interlocking door assemblies and snug line sealgrommets to minimize air leakage
  • All units UL Listed and AHRI Certified
  • R22 & R410A compatible
  • Microban® antimicrobial additive in the drain pan to resist mold and mildew growth
  • Foil-face insulation for easy cleaning
  • All drain pans are compatible with UV lights
  • Mobile home approved
  • Superior service access to components, withtubing located at door split and foil-face insulation
  • 10-Year Parts Limited Warranty

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MCVP36BNPA
Air Flow Direction Upflow
Cooling Capacity 3 Ton
Liquid Line Size 3/8 inch
Product Height (in) 24.5
Product Length (in) 21
Product Width (in) 17.5
Refrigerant R-410a
Series Signature
Suction Line Size 3/4 inch
Weight (lbs) 50.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Does MrCool split A/C system have unboxed Evapcoils ?
The overview of the coil states that it is compatible with R22 or R410a but when i look at the specifications, it only says R410a so does that mean this coil is not compatible for R22?
I would like to put this on a furnace and attach it to a condenser along with 4 wall mouned air handlers. I am concerned that when the temp goes below 40 degrees and the thermostat "locks out" this a-coil so that the furnace will take over heating, it will actually be locking down the condenser, and the other 4 air handlers will not be able to heat my house. Is this a valid concern? Is there any way around this? Thank you.
Hello.
Does this coil have a fixed orfice or TXV.
