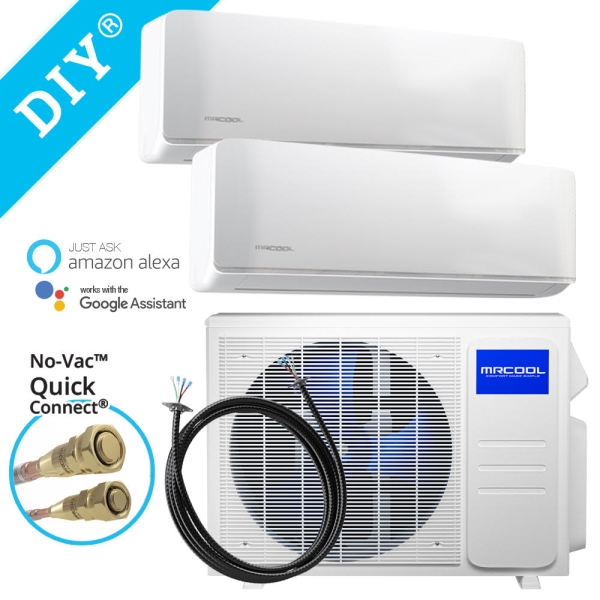

Ready for comfort in one easy solution? The 4th Generation MrCool DIY Multi-Zone 30k BTU 2 Zone Ductless Mini Split provides that easily and quickly. Once installed, you'll be impressed with the quality and consistency of the system. Functioning as a heat pump, the condenser reverses the air conditioning process and pulls air in from outdoors to heat your home.
Accessories
Description / Documents

Ready for comfort in one easy solution? The 4th Generation MrCool DIY Multi-Zone 30k BTU 2 Zone Ductless Mini Split provides that easily and quickly. Once installed, you'll be impressed with the quality and consistency of the system. Functioning as a heat pump, the condenser reverses the air conditioning process and pulls air in from outdoors to heat your home.

The outdoor heat pump of the 4th Generation MrCool DIY Multi-Zone 30k BTU 2 Zone Ductless Mini Split has a heating capacity of up to 36,000 BTU. The 12,000 BTU air handler can heat or cool approximately 500-600 square feet. The 18,000 BTU air handler unit can heat or cool approximately 750-900 square feet. This is all completed without ducts or the need for a professional HVAC installer.

Installing the 4th Generation MrCool DIY Multi-Zone 30k BTU 2 Zone Ductless Mini Split requires no special tools or training. The key is the Quick Connect

line set which comes pre-charged with eco-friendly refrigerant R410-A. The DIYPRO cable gives mechanical protection against weather, animals, or yard tools without an electrical conduit.

Controlling the system is as easy as its installation. Use the included remote, the SmartHVAC app, or your Amazon Alexa or Google Assistant.

The many modes allow you to customize your comfort with the 4th Generation MrCool DIY Multi-Zone 30k BTU 2 Zone Ductless Mini Split. The best way to maintain a consistent temperature is with the auto mode. In auto mode, a specific temperature is set and the outdoor condenser will automatically adjust to keep that preferred temperature. This is thanks in part to the variable speed DC inverter.

You can also save money while you sleep with the system. When using sleep mode, the unit will adjust 2 degrees per hour for 2 hours before maintaining that temperature for 6 hours, keeping you comfortable while you sleep and still saving energy. Other features include the timer option which limits your energy usage and saves you money. If the power unfortunately goes out, the unit will automatically restart and return to your desired settings when power is restored.

Maintaining the 4th Generation MrCool DIY Multi-Zone 30k BTU 2 Zone Ductless Mini Split requires minimal effort. In order to clean the indoor and outdoor units, just use a dry or damp cloth, without any special cleaning solution. Filters need to only be rinsed with water and let dry before being replaced in the air handler.

You can feel protected thanks to the 7-year compressor warranty and the 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM236HPW01C07
UPC 818545027143
AHRI Number 207339194
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 2.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 10.5
Heat Pump Efficiency (HSPF) 11
Series DIY
Zones 2
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-12-HP-WMAH-230C25 Specifications:

Model DIY-12-HP-WMAH-230C25
UPC 810063869540
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-18-HP-WMAH-230C25 Specifications:

Model DIY-18-HP-WMAH-230C25
UPC 810063868512
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 34.610000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
