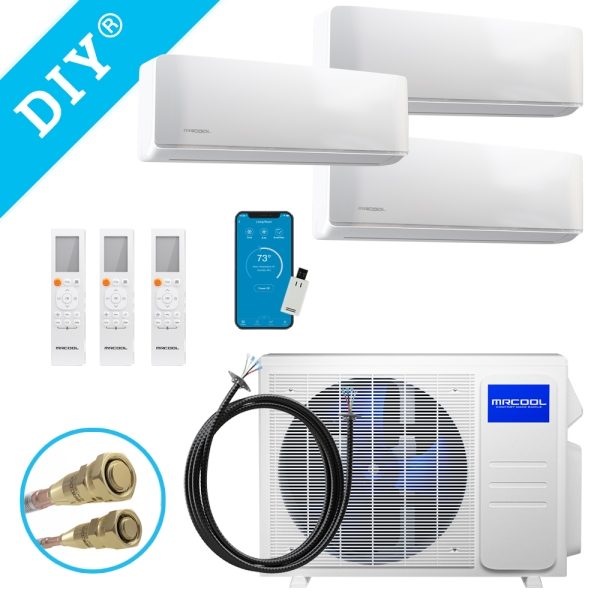

The 4th Generation MrCool DIY Multi-Zone 30k BTU 3 Zone Ductless Mini Split can heat or cool three areas in your home at one time. The 36,000 BTU outdoor unit has a SEER rating of 21.5, thanks in part to the variable speed DC inverter. Each of the 9,000 BTU air handlers have the capability of heating or cooling a space between 375-450 square feet, while the 12,000 BTU handler can cover an area between 500-600 square feet.
Accessories
Description / Documents

The 4th Generation MrCool DIY Multi-Zone 30k BTU 3 Zone Ductless Mini Split can heat or cool three areas in your home at one time. The 36,000 BTU outdoor unit has a SEER rating of 21.5, thanks in part to the variable speed DC inverter. Each of the 9,000 BTU air handlers have the capability of heating or cooling a space between 375-450 square feet, while the 12,000 BTU handler can cover an area between 500-600 square feet.

All components of the 4th Generation MrCool DIY Multi-Zone 30k BTU 3 Zone Ductless Mini Split were created to be easily installed by the average homeowner. No need for any specialized training, tools, or professional assistance. Part of the ease comes from the Quick Connect line set that is pre-charged with R410-A refrigerant. R410-A refrigerant is a far more eco-friendly option than older refrigerants from the past. The DIYPRO cable makes installation easy as well by providing superior mechanical protection without the need for an electrical conduit.

You have many options when it comes to controlling the 4th Generation MrCool DIY Multi-Zone 30k BTU 3 Zone Ductless Mini Split. Use the included remote, the SmartHVAC app, or your Amazon Alexa or Google Assistant.

There are many convenient operational modes to choose from to personalize your heating and cooling experience. Do you want a certain temperature consistently? Use the auto mode to set it and forget it. Set a specific temperature and the unit will maintain it.

Saving money while you sleep is possible with the sleep mode. During sleep mode, the 4th Generation MrCool DIY Multi-Zone 30k BTU 3 Zone Ductless Mini Split will run for 8 hours. During the first two hours, it will automatically adjust the temperature by 2 degrees F per hour. Once it reaches the new temperature, it will maintain it for the remaining 6 hours.

There are many more unique features with the MrCool DIY Ductless Mini Split. The timer function allows you to limit the energy you use for only when you need it. Just set it for the amount of time you need it and the unit will shut off automatically once the time has expired. If a power outage occurs, you won't have to adjust it back to your preferred settings–the unit will automatically return to its previous settings after the power is restored.

Maintenance of the 4th Generation MrCool DIY Multi-Zone 30k BTU 3 Zone Ductless Mini Split is as easy as its installation! Just simply wipe down both the indoor and outdoor units with a dry or damp cloth. The air filters only need to be rinsed with water and left to dry.

Feel confident in your investment with a 7-year compressor warranty and a 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM336HPW01C28
UPC 810080364103
AHRI Number 207339194
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 2.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 10.5
Heat Pump Efficiency (HSPF) 11
Series DIY
Zones 3
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-09-HP-WMAH-230C25 Specifications:

Model DIY-09-HP-WMAH-230C25
UPC 810063869533
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-12-HP-WMAH-230C25 Specifications:

Model DIY-12-HP-WMAH-230C25
UPC 810063869540
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
