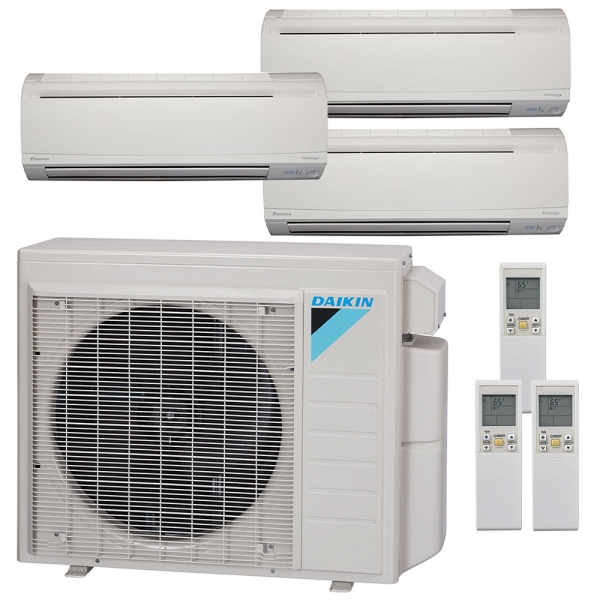

36k BTU 17.7 SEER Daikin Ductless Heat Pump Split System - 3 Zone Wall Mounted - 9k+12k+24k

Item
HA18681
Models 4MXS36RMVJUA, FTXS09LVJU, FTXS12LVJU, FTXS24LVJU
Condition
New


Customize 36k BTU 17.7 SEER Daikin Ductless Heat Pump Split System - 3 Zone Wall Mounted - 9k+12k+24k

* Required Fields

In stock

Ships Within 1-2 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    36k BTU 17.7 SEER Daikin Ductless Heat Pump Condenser
    Item: HA18614 Model: 4MXS36RMVJUA
    Qty: 1
    9k BTU Daikin LV Wall Mounted Ductless Air Handler
    Item: HA12615 Model: FTXS09LVJU
    Qty: 1
    12k BTU Daikin LV Wall Mounted Ductless Air Handler
    Item: HA13289 Model: FTXS12LVJU
    Qty: 1
    24k BTU Daikin LV Wall Mounted Ductless Air Handler
    Item: HA13340 Model: FTXS24LVJU
    Qty: 1

    What's included

    • Daikin 4MXS36RMVJUA
    • Daikin FTXS09LVJU
    • Daikin FTXS12LVJU
    • Daikin FTXS24LVJU
    • Owner Manual
    • Lifetime Tech Support


    Warranty Terms

    For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

    For additional warranty information, click here.

    More Information
    Model 4MXS36RMVJU,FTXS09LVJU,FTXS12LVJU,FTXS24LVJU
    AHRI Number 201851579
    Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
    Bundle Cooling Capacity 3 Ton
    Bundle Cooling Efficiency 17 SEER
    EER 9.2
    Heat Pump Efficiency (HSPF) 12.2
    Series MXS
    Zones 3
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    4MXS36RMVJUA Specifications:

    More Information
    Model 4MXS36RMVJUA
    Product Height (in) 29
    Avg Coverage Area 1,500 - 1,800 Sq Ft
    Product Length (in) 12.63
    Compressor Inverter
    Product Width (in) 34.25
    Cooling Capacity 3 Ton
    Electrical Phase 1-Phase
    Heat Pump Efficiency (HSPF) Up to 12.2
    Line Set Connection Type Flared
    Liquid Line Size 1/4 inch
    Max Overcurrent Protection 25 amps
    Weight (lbs) 139.000000
    Primary Heating Capacity 35,001 - 40,000 BTU
    Refrigerant R-410a
    Cooling Efficiency 17 SEER
    Series MXS
    Suction Line Size 1/2 inch
    System Application Type Ductless Split Systems
    Voltage 240
    Warranty 12 Year Parts
    Region Compatibility Nationwide

    FTXS09LVJU Specifications:

    More Information
    Model FTXS09LVJU
    Product Height (in) 10.5
    Configuration Wall Mounted
    Product Length (in) 34
    Air Flow Direction Horizontal
    Product Width (in) 14.5
    Blower Motor Multi Speed
    Cooling Capacity Less than 1 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Flared
    Liquid Line Size 1/4 inch
    Max Overcurrent Protection 15 amps
    Weight (lbs) 26.000000
    Series LV
    Suction Line Size 3/8 inch
    System Application Type Ductless Split Systems
    Voltage 240
    Warranty 12 Year Parts

    FTXS12LVJU Specifications:

    More Information
    Model FTXS12LVJU
    Product Height (in) 10.5
    Configuration Wall Mounted
    Product Length (in) 34.5
    Air Flow Direction Horizontal
    Product Width (in) 14.5
    Blower Motor Multi Speed
    Cooling Capacity 1 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Flared
    Liquid Line Size 1/4 inch
    Max Overcurrent Protection 15 amps
    Weight (lbs) 30.000000
    Series LV
    Suction Line Size 3/8 inch
    System Application Type Ductless Split Systems
    Voltage 240
    Warranty 12 Year Parts

    FTXS24LVJU Specifications:

    More Information
    Model FTXS24LVJU
    Product Height (in) 13
    Configuration Wall Mounted
    Product Length (in) 45.5
    Air Flow Direction Horizontal
    Product Width (in) 17
    Blower Motor Multi Speed
    Cooling Capacity 2 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Flared
    Liquid Line Size 1/4 inch
    Max Overcurrent Protection 20 amps
    Weight (lbs) 42.000000
    Series LV
    Suction Line Size 5/8 inch
    System Application Type Ductless Split Systems
    Voltage 240
    Warranty 12 Year Parts
