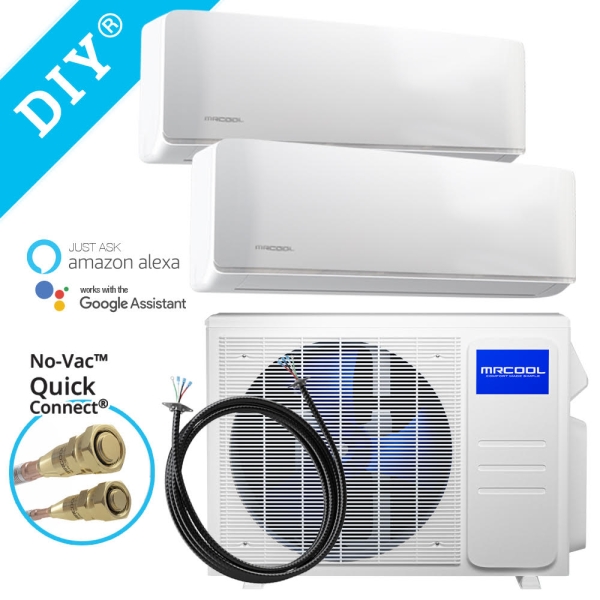

Heating two rooms can have an easy solution. The 4th Generation MrCool DIY Multi-Zone 36k BTU 2 Zone Ductless Mini Split provides the opportunity to do that and install it yourself. The system is a heat pump, which means it's a heating air conditioner. In order to heat the home, it draws in air from outside in the opposite manner of an air conditioner. The 12,000 BTU air handler can heat or cool a space between 500-600 square feet, while the 24,000 BTU unit will heat or cool an area between 1,000-1,200 square feet.
Accessories
Description / Documents

Heating two rooms can have an easy solution. The 4th Generation MrCool DIY Multi-Zone 36k BTU 2 Zone Ductless Mini Split provides the opportunity to do that and install it yourself. The system is a heat pump, which means it's a heating air conditioner. In order to heat the home, it draws in air from outside in the opposite manner of an air conditioner. The 12,000 BTU air handler can heat or cool a space between 500-600 square feet, while the 24,000 BTU unit will heat or cool an area between 1,000-1,200 square feet.

You won't need any special tools or training in order to install the 4th Generation MrCool DIY Multi-Zone 36k BTU 2 Zone Ductless Mini Split, nor do you need an HVAC expert. The Quick Connect line set comes pre-charged with refrigerant R-410A that is more eco-friendly than previous commonly used refrigerants. In addition, the new DIYPRO cable aids in the installation ease by eliminating the need for an electrical conduit while providing superior mechanical protection.

Checking the temperature of the 4th Generation MrCool DIY Multi-Zone 36k BTU 2 Zone Ductless Mini Splitt is convenient as well. Check the clear, easy-to-read LED display on the front of the air handler unit, or utilize the SmartHVAC app on your Apple or Android device. You can also use this app to adjust the temperature of the system. Other ways to adjust the temperature are with the included remote or with your Amazon Alexa or Google Assistant.

The system has many various operational modes. The primary mode is the auto mode, which can be used to set one desired temperature and the unit will adjust appropriately to maintain it. This is thanks in part to the variable speed DC inverter.

With the 4th Generation MrCool DIY Multi-Zone 36k BTU 2 Zone Ductless Mini Split, you could also save money while you sleep. With the sleep mode, you set a temperature and over the first two hours, the temperature will either increase when cooling or decrease when heating by 2 degrees each hour then maintain that temperature for the next 6 hours.

In addition to those useful features, there are also others that are handy. The timer function saves you energy by only running the unit for the amount of time requested. If a power outage occurs, the system will automatically restart when power is restored and immediately begin cooling or heating your space back to your desired temperature.

Maintaining the 4th Generation MrCool DIY Multi-Zone 36k BTU 2 Zone Ductless Mini Split is simple as well. Cleaning both the indoor and outdoor units is easily done with a basic dry or damp cloth. The filters are reusable and only need to be cleaned with tap water.

The mini split system is also protected with a 7-year compressor warranty and a 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM236HPW02C08
UPC 818545027433
AHRI Number 207339194
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 10.5
Heat Pump Efficiency (HSPF) 11
Series DIY
Zones 2
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-12-HP-WMAH-230C25 Specifications:

Model DIY-12-HP-WMAH-230C25
UPC 810063869540
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-24-HP-WMAH-230C25 Specifications:

Model DIY-24-HP-WMAH-230C25
UPC 810063868536
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 35.270000
Refrigerant R-410a
Series DIY
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY25-3858 Specifications:

Model DIY25-3858
UPC 810035931053
Liquid Line Size 3/8 inch
Weight (lbs) 15.000000
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Warranty None
