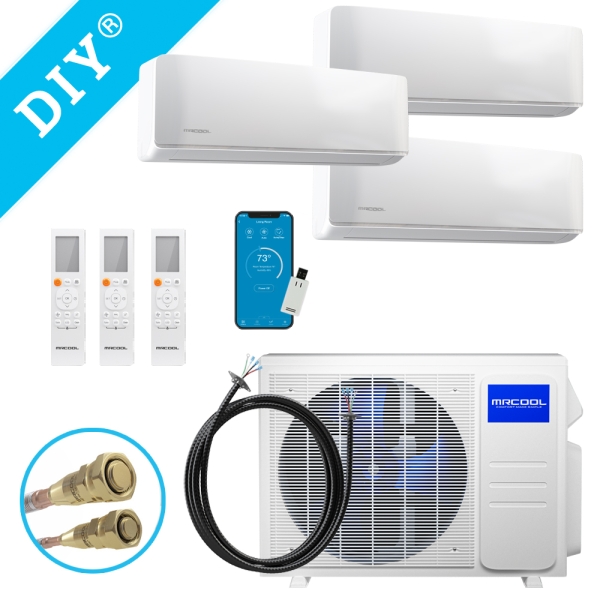

36k BTU 21.5 SEER Multi-Zone MrCool DIY 3 Zone Ductless Heat Pump Split System 4th Generation - 12k+12k+12k
Shop All MRCOOL

Accessories
Description / Documents
The 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split can effectively and efficiently heat or cool three rooms in your home.The heat pump condenser has a 36,000 BTU with a 21.5 SEER. Each of the three 12,000 BTU air handlers are capable of heating or cooling between 500-600 square feet.
The 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split was created with an amatuer installer in mind. You'll need no special tools, training, or professional HVAC assistance to install the system. This is thanks in part to the Quick Connect line set, which comes precharged with R410-A refrigerant. Also helpful is the DIYPRO cable. The cable provides excellent mechanical protection against animals, weather, or yard tools without the need for an electrical conduit.
You can customize the way you control the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split as well. Simply use the included remote, your Amazon Alexa or Google Assistant, or the SmartHVAC app.
There are a variety of operational modes to choose from to customize your comfort experience, the most convenient being Auto mode. When using Auto mode, you'll simply set the temperature you desire, and the MrCool DIY Ductless Mini Split will work to consistently maintain it until you change it again.
There is a wide variety of features with the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split. If you only need heating or cooling for a specific period of time, then the timer mode is for you. Simply set the timer and the unit will run until that time has expired, preventing you from using excess energy when it isn't necessary. If a power outage occurs, you won't have to worry with resetting the unit back to your preferences when power is restored. The unit will automatically return to your preferred settings and begin heating or cooling your space again.
Maintaining the MrCool DIY Ductless Mini Split is easy as well. If any alert were to appear on the LED display, it will include a troubleshooting code for you to reference in the user manual. Cleaning both the indoor and outdoor units only requires wiping them with a damp or dry cloth–no special cleaning solutions are needed. When the handler alerts you to clean the air filters, all you need to do is rinse them with water, allow them to dry, and replace them in the handler.
You can feel your purchase of the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split is worthwhile with the 7-year compressor warranty and the 5-year parts warranty.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | DIYM336HPW06C28 |
|---|---|
| UPC | 810080369429 |
| AHRI Number | 207339194 |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 10.5 |
| Heat Pump Efficiency (HSPF) | 11 |
| Series | DIY |
| Zones | 3 |
| Popular Applications | Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom |
| Region Compatibility | Nationwide |
DIY-12-HP-WMAH-230C25 Specifications:
| Model | DIY-12-HP-WMAH-230C25 |
|---|---|
| UPC | 810063869540 |
| Product Height (in) | 11.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.44 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 23.810000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
