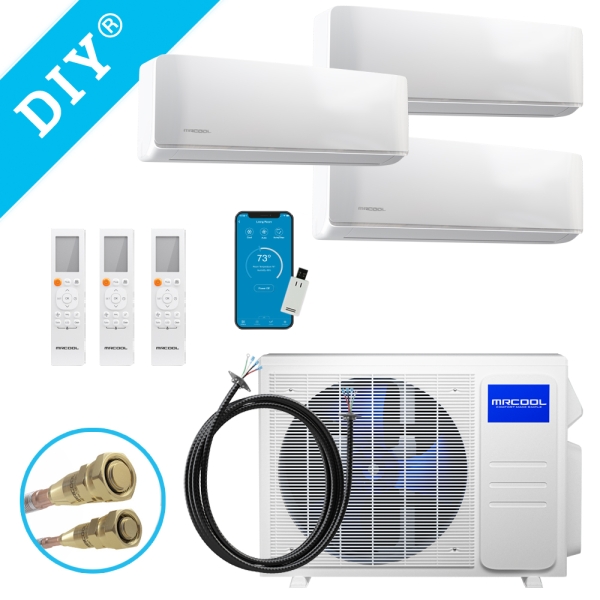

The 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split is an easy to install solution to your heating and cooling needs. It features the capability of heating or cooling three areas of your home.
Accessories
Description / Documents

The 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split is an easy to install solution to your heating and cooling needs. It features the capability of heating or cooling three areas of your home.

With a heating capacity of 36,000 BTU, the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split boasts a SEER of 20.5. Each of the 12,000 BTU air handlers works to effectively heat or cool between 500-600 square feet of space. The 18,000 BTU handler has the capability to heat or cool between 750-900 square feet.

Installing the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split is easier than you'd imagine. You'll need no special tools, training, or assistance from a professional. The easy installation is thanks in part to the Quick Connect line set, which comes precharged with R410. Aiding in the installation ease is the DIYPRO cable, which provides mechanical protection without the need for an electrical conduit.

There are a variety of ways you can conveniently control the MrCool DIY Ductless Mini Split. Utilize the included remote, the SmartHVAC app, or your Amazon Alexa or Google Assistant.

Auto mode is the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split's way to set it and forget it. Simply set the unit at your desired temperature, and the unit will work to maintain it consistently.

Sleep mode lets you conserve energy while you sleep. During Sleep mode, the unit runs for 8 hours. During the first two hours, the system will increase or decrease the temperature by 2 degrees F each hour depending on whether you're heating or cooling. It will then maintain that new temperature for the remaining 6 hours while you sleep.

There is a vast array of features with the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split. The timer function will let you use energy only when you need it. Set the timer for the amount of time you need your space adequately heated or cooled, preventing you from using excess energy when it isn't necessary. If a power outage occurs, the unit will automatically return to your preferred settings.

Maintaining the MrCool DIY Ductless Mini Split is as easy as it is to install. If any issue occurs, a troubleshooting code will display on the front panel. You can easily reference each code in the user manual. Cleaning the indoor and outdoor units does not need any special cleaning products–just a damp or dry cloth. When the air handler alerts you that it's time to clean the air filters, simply rinse them with water, allow to dry, and replace them within the unit.

Feel protected with your purchase. The 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split is backed a 7-year compressor warranty and 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM336HPW07C28
UPC 818545029116
AHRI Number 207339194
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 10.5
Heat Pump Efficiency (HSPF) 11
Series DIY
Zones 3
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-12-HP-WMAH-230C25 Specifications:

Model DIY-12-HP-WMAH-230C25
UPC 810063869540
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-18-HP-WMAH-230C25 Specifications:

Model DIY-18-HP-WMAH-230C25
UPC 810063868512
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 34.610000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
